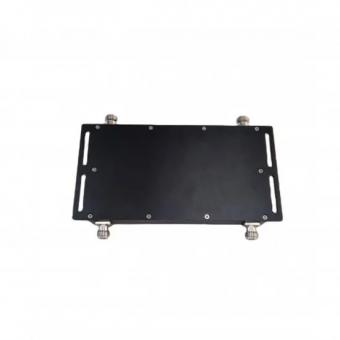

350-3800MHz directional coupler with low PIM high performance

350-3800MHz RF directional coupler 3dB 6dB 8dB 10dB 13dB 15dB 20dB 30dB for tetra DAS.
  • Item NO.:

    MDC-338-XX-4F-153
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai,shenzhen,Guangzhou
  • Products Details

Product Name:350-3800MHz directional coupler with low PIM high performance

350-3800MHz low PIM directional coupler is wide frequency band and is widely used in Tetra.


Technical &Mechanical Specifications

Part number



818431



818432



818433



818434



818435



818436



818437



818438



818439

Part number (BN)

7-16 Female (50 Ohms)



818440



818441



818442



818443



818444



818445



818446



818447



818448



Splitting ratio

1 : 0.32 :

0.67

1 : 0.25 :

0.75

1 : 0.2 :

0.8

1 : 0.16 :

0.84

1 : 0.1

: 0.9

1 : 0.05

: 0.95

1 : 0.03

: 0.97

1 : 0.01

: 0.99

1 : 0.001

: 0.999

Frequency range

350 – 3800 MHz



Insertion loss

< 2.5 dB

typ 2.0dB

< 1.8 dB

typ 1.4dB

< 1.5 dB

typ 1.2dB

< 1.2 dB

typ 0.8dB

< 1.1 dB

typ 0.7dB

< 0.8 dB

typ 0.4dB

< 0.7 dB

typ 0.3dB

< 0.5 dB

typ 0.1dB

< 0.3 dB

typ 0.1dB



Coupling

4.8 dB

± 1.2 dB

6 dB

± 1.2 dB

7 dB

± 1.2 dB

8 dB

± 1.5 dB

10 dB

± 1.5 dB

13 dB

± 1.5 dB

15 dB

± 1.5 dB

20 dB

± 2 dB

30 dB

± 2 dB

VSWR

≤ 1.3

Directivity

≥ 18 dB

≥ 18 dB

≥ 18 dB

≥ 18 dB

≥ 18 dB

≥ 17 dB

≥ 17 dB

≥ 15 dB

≥ 15 dB

Power rating

4.3 -10 Female ≤ 400 W 7-16 Female ≤ 500 W

PIM - value

3rd order @ 2 x 20 W



≤ -155 dBc | typical ≤ -160 dBc



DC-by-pass

Port 1 to Port 2

(max. 1A per input max. 60V DC(AISG Standard, 2.0, § 6.4))

Degree of protection

IP 65 (Outdoor)



Environmental conditions

ETSI EN 300019-1-1 Class 1.2

ETSI EN 300019-1-2 Class 2.3 ETSI EN 300019-1-4 Class 4.1E



Weight

4.3 -10 Female 680 g 7-16 Female 880 g

Color

Grey

Wall / Mast mounting

integrated

Temperature range

-35 °C – +75 °C

Dimensions (w x h x d)

See drawing

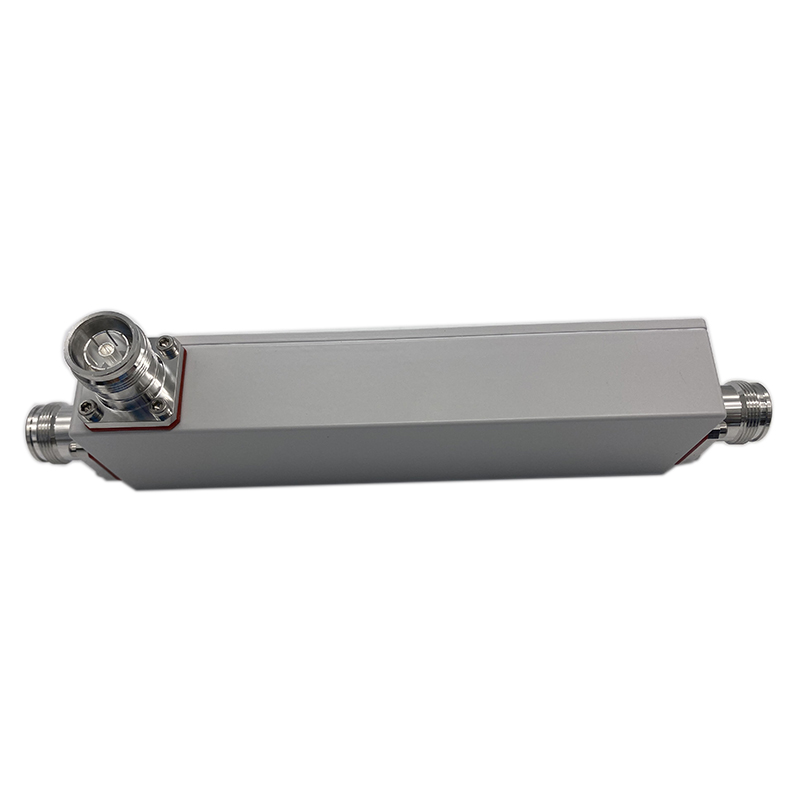

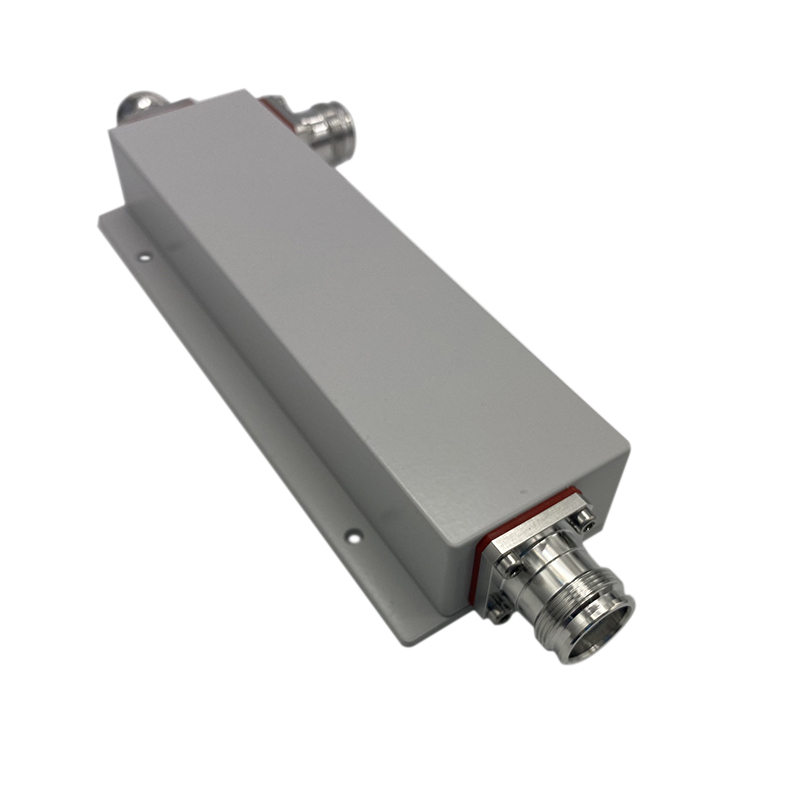

350-3800MHz directional coupler350-3800MHz directional coupler
