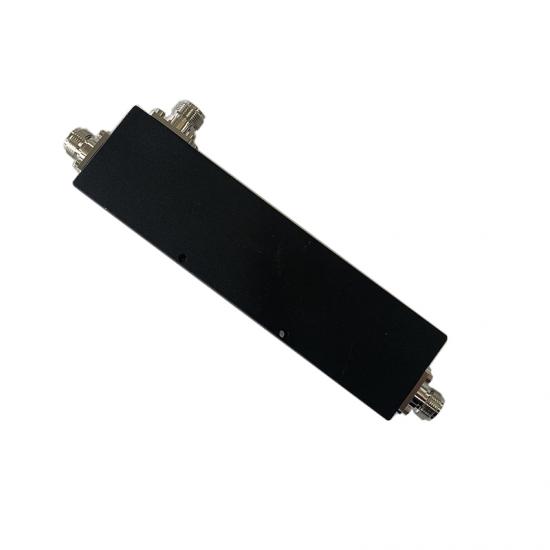

Wholesale N Type 450-2700MHz 300W RF Directional Coupler

RF Directional Coupler covers wide frequency band from 450 to 2700MHz,which has different couplings like 10dB Directional Coupler
  • Item NO.:

    MDC-427-xx-NF -153
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen
  • Color:

    Black
  • Products Details

Product Name


450-2700MHz,300W, N-F, IP65, -153dBc Directional Coupler



Product Features


◆ Wide Frequency Band 450-2700MHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR & Insertion Loss
◆ High Isolation, Indoor & Outdoor, IP65
◆ Widely used for In-building Solutions



Maniron has different frequency bands of directional Coupler.This is from 450 to 2700MHz,it's in low PIM -160dBc RF Directional Coupler.


Technical &Mechanical Specifications

Freq(MHz)

450-2700



Coupling(dB)

6
10 15
Insertion Loss(dB)
≦1.75
≦0.80
≦0.60
VSWR
≤1.30


PIM(dBc)
-153dBc@2x43dBm



Pictures

rf directional coupler-161dBc directional coupler
