Low PIM 5-30dB rf Directional Coupler with 4310 connector

Directional Coupler with Frequency 617-4200MHz,coupling 5/6/7/8/10/15/20/30dB,low PIM -161dBc,low VSWR,high Isolation.
  • Item NO.:

    MNL-DC-XXdB-642-41F
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai//Ningbo/Shenzhen
  • Color:

    Black
  • MOQ:

    1
  • Products Details

Product Name

617-4200MHz Low PIM -161dBc RF Directional Coupler

The Low PIM Directional provide flat coupling of one signal path to another with directivity (in one direction only) and low VSWR. With the unique design of PIM performance and power handling, rf Directional couplers offers -161dBc extra low PIM and urtra-wide frequency range (617-4200MHz) covers both public safety and 5G Bands.


Product Features

◆ with Wide Frequency Band

◆ 2G/3G/4G/LTE/5G Coverage

◆ Low Passive Intermodulation

◆ Low VSWR & Insertion Loss

◆ High Isolation,Indoor & Outdoor,IP65 Application

◆ Widely used for In-building Solutions



Technical &Mechanical Specifications

Model No.

MNL-DC-XXdB-642-41F-161dBc

(xx refers to coupling value)

Freq(MHz)

617-4200MHz

Coupling(dB)

5dB

±1.2dB

6dB

    ±1.2dB

 7dB

    ±1.2dB

 8dB

     ±1.3dB

10dB

±1.4dB

13dB

 ±1.4dB

15dB

±1.5dB

20dB

  ±1.5dB

30dB

   ±1.8dB

Insertion Loss(dB)

2.2dB

1.75dB 1.4dB 1.3dB 1.1dB 0.7dB 0.5dB  0.3dB 0.3dB

Directivity(dB)

≥18dB

≥18dB ≥18dB ≥18dB ≥18dB
≥18dB
≥18dB
≥18dB
≥15dB

VSWR

≤1.35

PIM(dBc)

≤-161dBc@617-2700MHz

Average Power

200W

Impedance

50 ohm

Connector
4.3-10 female
Color Black
Working Temperaturedeg) -35~+65
Application Indoor & Outdoor,IP65
Relative Humidity 5%-95%



Mechanical Drawing&Products Pictures

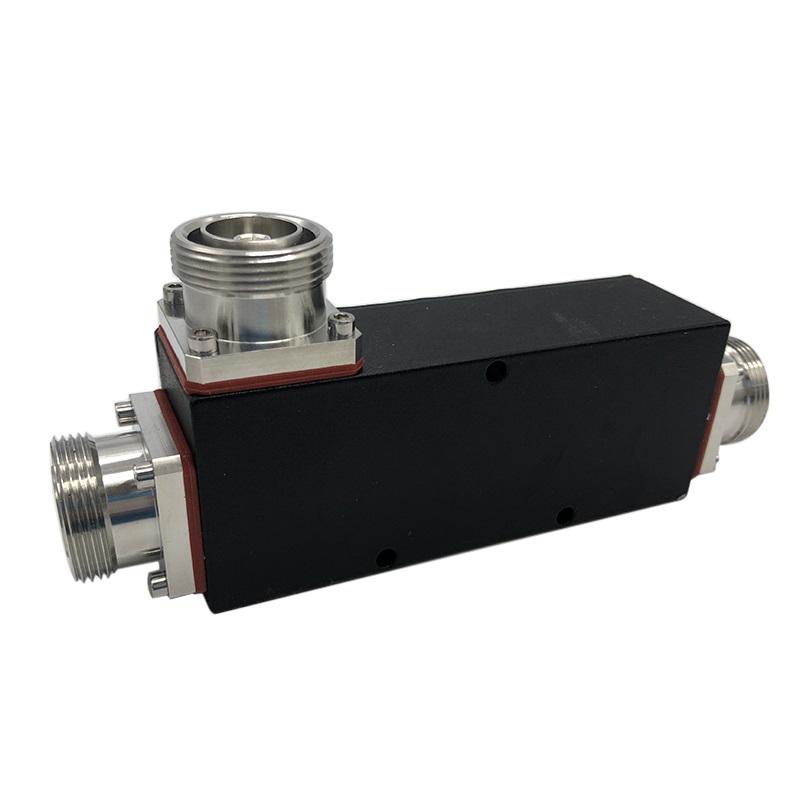

Low PIM 617-4200MHz RF Directional Coupler


Low PIM 617-4200MHz RF Directional Coupler

Low PIM 617-4200MHz RF Directional Coupler
