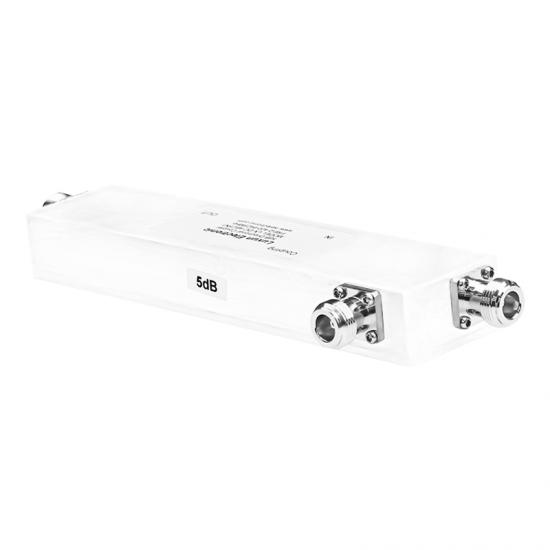

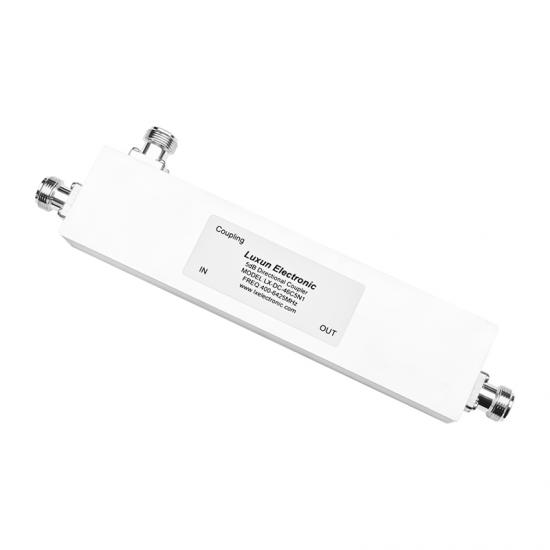

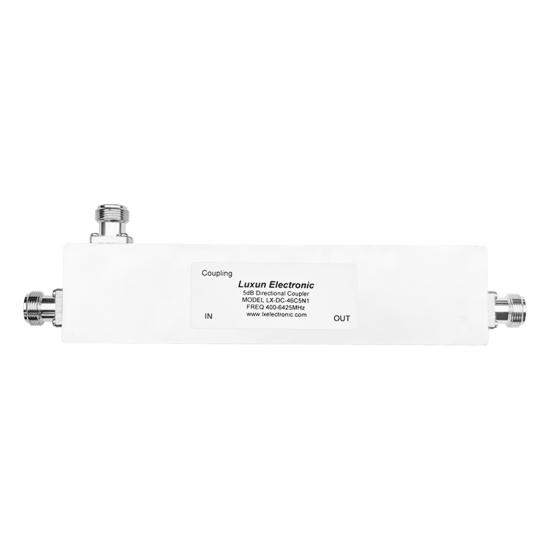

400-6425MHz 20W Directional Coupler N Female Low VSWR for DAS & Wireless Systems

400-6425MHz 20W Directional Coupler N Female Low VSWR for DAS & Wireless Systems

High-performance 20W directional coupler covering 400-6425MHz with low insertion loss, low VSWR, and N-female connectors, ideal for DAS, 4G/5G, and RF signal distribution systems.

Item NO.:
MDC-464-XXdB-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen

Inquiry now

Products Details

Product Name:

20W Directional coupler, 400-6425MHz, N Female

Product Feature:

◆ 2G/3G/4G/LTE Coverage

◆ Low Insertion Loss & Low VSWR

◆ The RF port supports DC power output/input

Technical &Mechanical Specifications:

Model No.	MDC-464-XXdB-NF(XX means coupling in dB)
Frequency(MHz)	400-6425
Coupling(dB)	4.85	7.35
Insertion Loss(dB)	≤2.65	≤2.3
Power Handling(W)	≥20
VSWR	≤1.5
Impedance(Ω)	50
Connector	N Female

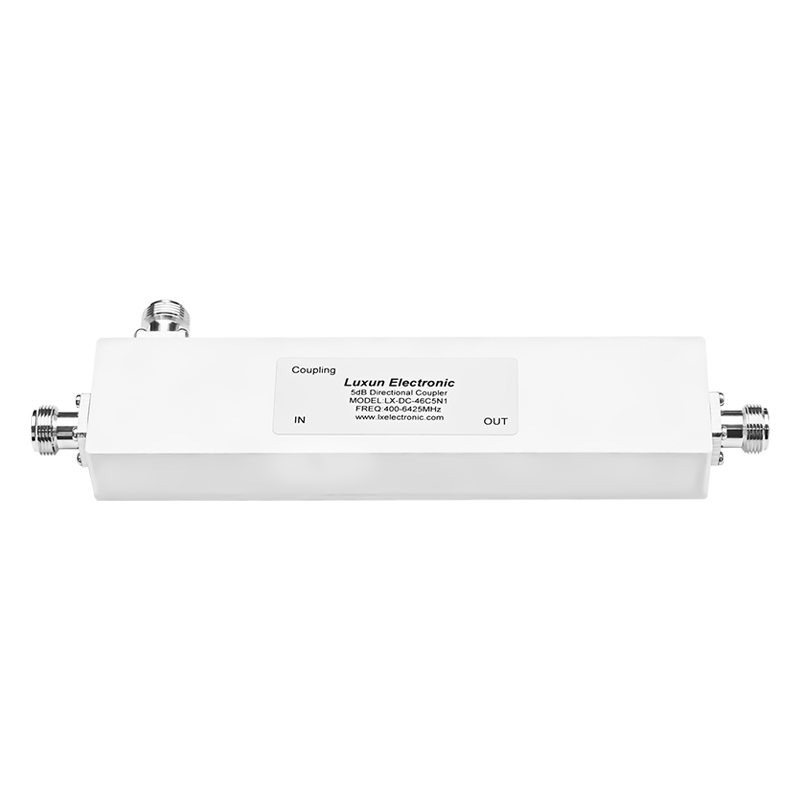

Product Drawing:
