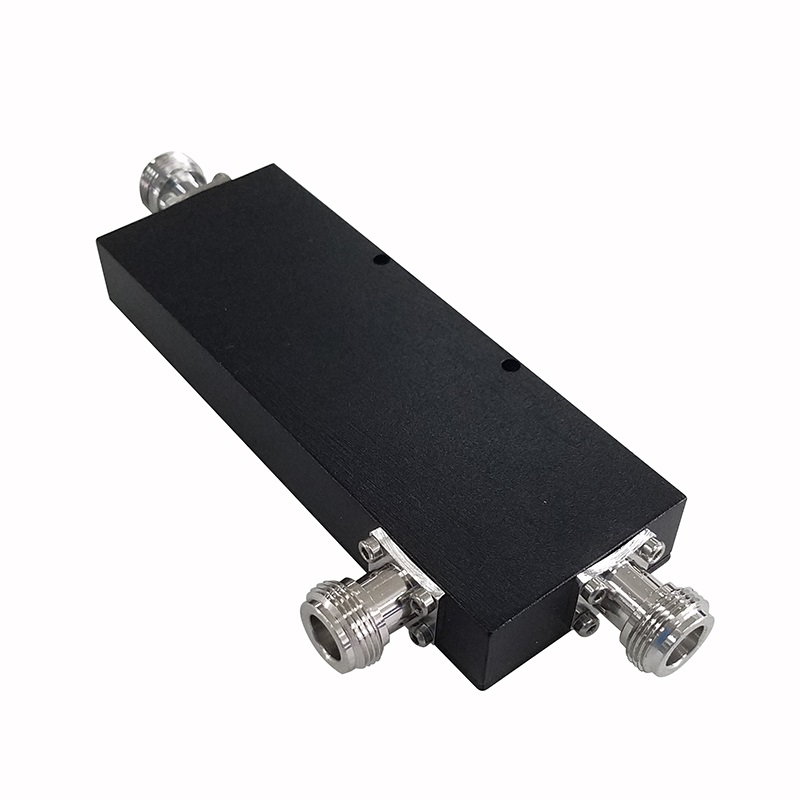

UHF 400-430MHz Directional Coupler with N type customized

UHF Directional Coupler covers wide frequency band from 400-430MHz,which has different coupling like 6dB 10dB 15dB 20dB
  • Item NO.:

    YF-DC-443-xx-NF
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Products Details

Product Name

400-430MHz UHF Directional coupler is with high performance,400-430MHz Directional Coupler can be customized.


Product Features

◆ with Wide Frequency Band

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR

◆ High power with 300W

◆ Widely used for In-building Solutions



Technical & Mechanical Specifications

PN

YF-DC-443-

06/07-NF

YF-DC-443-

10-NF

YF-DC-443

15/20-NF

YF-DC-443-

30-NF

YF-DC-443-

40-NF

Freq(MHz)

400-430MHz

Coupling(dB)

 6/7±0.3

10±0.4

15/20±0.4

 30±0.5

 40±0.6

Insertion Loss(dB)

1.85/1.6

 0.8

0.4/0.3

  0.3

  0.2

VSWR

     ≦1.20:1

Power(W)

    200

Directivity(dB)

   ≧20

Connector

      N-Female

impedance(Ω)

    50

Color

     Black

Temperature(℃)

      -35~+80

Application

    Indoor

UHF 400-430MHz Directional CouplerUHF 400-430MHz Directional CouplerUHF 400-430MHz Directional Coupler
