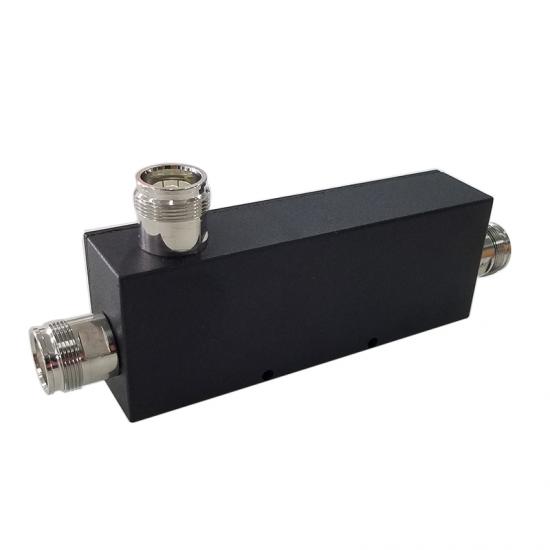

Maniron 0.6-6GHz 5/6/8/10/15/20dB Low PIM -161dBc RF Directional Coupler

RF Directional Coupler covers frequency from 600-6000MHz with 5dB/6dB/10dB/13dB/15dB/20dB/30dB coupling,low PIM -161dBc which is widely used for IBS DAS
  • Item NO.:

    MC-660-XX-4F-6
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Ningbo
  • Color:

    Grey
  • Products Details

Product name


600-6000MHz rf directional coupler for 5G DAS IBS with Low PIM -161dBc


Product Features


◆Wide Frequency Bandfor 5G IBS BTS DAS

◆ 2G/3G/4G/LTE/5G Coverage

◆ Low Passive Intermodulation

◆ Low VSWR &Insertion Loss

◆ High Isolation, Indoor outdoor Application

◆ Widely used for In-building Solutions


Technical &Mechanical Specifications

Model No.

                                MC-660-XX-4F-6 (XX means coupling in dB)

Freq(MHz)

600-6000

VSWR

600-2700≤1.30    2700-6000≤1.35

Coupling(dB)

5/6

    8

  10

  13

  15

Insertion Loss(dB)

≤2.4/1.8

≤1.2

≤0.8

≤0.5

≤0.5

Isolation(dB)

≥25/26

  ≥28

 ≥30

 ≥33

 ≥35

PIM (dBc)

≤-161dBc@2*43dBm (698-2700)

Power(W)

300W

Impedance

50 ohm

Connector

N/4310/DIN-female

Color

Black-plated

Temp(deg)

-30~+65




600-6000mhz rf directional coupler
