Product Description

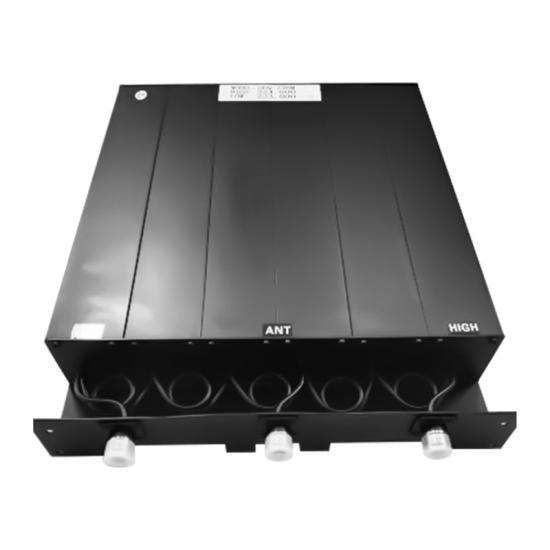

The 50W UHF Duplexer by Maniron is a high-quality passive component designed for seamless signal duplexing in the 390-520MHz range. With an exceptional 80dB Isolation index, it effectively prevents interference between transmit and receive channels, making it a superior choice for professional radio repeater systems.
Product Features
- Full Customization: From VSWR to isolation levels, all parameters can be tailored to your specific project needs.
- High Reliability: Built for stability with low insertion loss (≤1.0dB) to ensure maximum signal throughput.
- Compact Design: Lightweight and simple to install, even in space-constrained base station environments.
Technical Specifications
| Model No. | MN-UHFD-390-520-NF |
| Operating Frequency | 390 - 520 MHz |
| Bandwidth | ± 500 KHz |
| VSWR | ≤ 1.5 |
| Insertion Loss | ≤ 1.0 dB |
| Isolation / Suppression | ≥ 80 dB |
| Power Handling | 50 W |
| Connector Type | N-Female |
| Outline Size | 228 * 190 * 40 mm |
| Operating Temperature | -20°C to +60°C |
NOTE: Maniron supports extensive OEM/ODM services. All specifications, including frequency range and connector types, can be modified to meet your custom RF requirements.
Frequently Asked Questions
- Q1: Can the isolation index be increased for my project?
- A: Yes, Isolation is one of our most requested custom parameters. We can optimize the internal cavity design to meet your specific suppression needs.
- Q2: What is the benefit of the N-Female connector for this duplexer?
- A: The N-Female connector provides a reliable, low-loss interface that is standard for 50W UHF outdoor and indoor repeater systems.
- Q3: Does Maniron provide technical support during system integration?
- A: Absolutely. Our engineers and sales team are available 24 hours a day to provide professional skill support and help you choose the best purchasing option.
- Q4: Is it possible to customize the frequency bandwidth?
- A: Yes, we can adjust the Bandwidth and central frequency to perfectly align with your local UHF spectrum allocation.
Outline Drawing:
