VHF Duplexer
VHF Duplexer VHF Duplexer VHF Duplexer VHF Duplexer

VHF 154-164MHz 50W Duplexer

VHF 50w 6 Cavity Duplexer with 138-174MHz,UHF with 350-520MHz For Walkie Talkie Two Way Radio Repeater

  • Item NO.:

    SGQ-150N

  • Lead Time:

    Depending on exact quantity

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai,Shenzhen,Guangzhou

  • Color:

    Black
Inquiry now
  • Products Details

Product Name

6 Cavity 50W VHF Duplexer with BNC Female connectors on TX,RX  and N Female on Antenna Port


Product Features

◆ Wide Frequency Band

◆ Low VSWR

◆Low Attenuation Accuracy

◆ Widely used for In-building Solutions


Technical &Mechanical Specifications

Model Type

SGQ-150N

Frequency Range

154-164MHz

 VSWR

≤1.40

Bandwidth

 ±150KHz

RX-TX Min. Spacing

 3MHz

Insertion Loss

≤1.2dB

Isolation

≥80dB

Maximum Input Power

50W

Normal Impedance

50Ω

Connector

N-F/BNC-F

Operating Temperature

-20℃~+50℃

Weight

1.2KG

Dimensions

218×154×35(±0.5mm)


Mechanical Drawing

VHF 50W Duplexer

6Cavity Duplexer

Attention

1. Our factory produce many kinds of duplexers,customization is acceptable;

2. We have 10W/30W/50W/100W/200W/300W/400W power duplexers;

3. We have 60-108MHz,136-180MHz,220-240MHz,330-380MHz,380-520MHz,700MHz,800MHz,   900MHz,1200Mhz,1400Mhz,1800MHz,2100MHz,2300MHz,2600MHz etc duplexers.

4.Please tell me the RX and TX frequency before order,we can tune the frequency for you free of charge.

Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

  • Subject : VHF 154-164MHz 50W Duplexer

Related Products
50W UHF duplexer
50W VHF 138-156MHz cavity duplexer N female
VHF 138-156MHz 50W  Duplexer for Radio Repeater or Mobile Radio
30W UHF duplexer
30W UHF 380-520MHz cavity duplexer N female
UHF 380-520MHz 30W  Duplexer for Radio Repeater or Mobile Radio
30W VHF duplexer
30W VHF 136-174MHz cavity duplexer N female
Stable VHF 30W  Duplexer for Radio Repeater or Mobile Radio
200W N-Female RF Duplexer
Maniron 350MHz VHF UHF Duplexer 200W RF Duplexer
The frequency of Duplexer covers from RX 351-356 MHz,TX 361-366 MHz,which is in high rejection 80dB
100W N-Female RF Duplexer
RF 450-455MHz 460-465MHz VHF UHF Duplexer
The frequency of Duplexer covers from RX 450-455 MHz,TX 460-465 MHz,which is in high rejection 60dB
UHF 50W duplexer
400-470MHz 50W duplexer N female
Stable VHF 50Watt  Duplexer for Radio Repeater or Mobile Radio
50W duplexer
138-156MHz 50W duplexer N female
Stable VHF 50Watt  Duplexer for Radio Repeater or Mobile Radio
40w high rejection duplexer
TX RX 1805-2170MHz 1710-1980MHz RF Duplexer
This bandpass duplexer covers frequency band 1805-2170MHz 1710-1980MHz with Low VSWR and high rejection.
136-174MHz 4 Cavity Pass-Reject Duplexer
VHF 136-174MHz 4 Cavity Pass-Reject Duplexer with N-Female connector
The base station duplexer is ideal for high power, close frequency separation installations.Its frequency can be made within 136-174MHz range with low VSWR and high isolation.
Cavity duplexer
RF cavity duplexer 902-915MHz 920-928MHz for telecommunication
This bandpass duplexer covers frequency band 902-915MHz 920-928MHz with Low VSWR and high rejection.
800MHz 100W RF Duplexer With SMA Type And High Isolation
800MHz 100W RF Duplexer With SMA Type And High Isolation
This duplexer covers frequency band RX:806-825 MHz TX:851-870 MHz with Low Insertion Loss  and high Isolaton.
400MHz RF Duplexer
400MHz 100w RF Duplexer with N type and high isolation
This duplexer covers frequency band RX:450-455 MHz TX:460-465 MHz with Low VSWR and high rejection
RF Diplexer Combiner SMAF
2.4-2.5/5.1-7.2GHz RF bandpass Diplexer Combiner SMAF
This RF bandpass Diplexer Combiner covers frequency band 2.4-2.5/5.1-7.2GHz with Low VSWR and high rejection.
Cavity Duplexer RX:1300-1400MHz TX:1750-1850MHz
RX:1300-1400MHz TX:1750-1850MHz Cavity Duplexer with high Isolation
Cavity Duplexer covers  RX:1300-1400MHz,TX:1750-1850MHz with High Isolation and Low Insertion Loss
RX:806-821MHz TX:851-866MHz Duplexer
Low VSWR RX:806-821MHz TX:851-866MHz Duplexer with N-Female Connector
Low VSWR RX:806-821MHz TX:851-866MHz  Duplexer with N-Female Connector
746-757/776-787MHz UHF Duplexer
Low PIM -155dBc 100W 746-757/776-787MHz Duplexer with 4.3-10 Female Connector
100w 746-757/776-787MHz Duplexer with high isoltion 80dB
100W 806-824MHZ /851-869MHz Duplexer
Low PIM -155dBc 100W 806-824MHZ /851-869MHz Duplexer with 4.3-10 Female Connector
100w 806-824MHZ /851-869MHz Duplexer with high isoltion 80dB
Duplexer
VHF Frequency 210-230MHz Duplexer With N-Female Connector
The frequency of Diplexer covers from 210-230MHz, which is  low insertion loss and high isolation
RF Triplexer Combiner
RF Triplexer Combiner 780-960MHz/1710-2170MHz/2400-2700MHz With SMA-Female Connector For IBS DAS
Product Features ◆ Wide Frequency Band ◆ Low VSWR & high rejection ◆ Simple Installation
UHF 350MHz 200W RF Duplexer
UHF 350MHz 200W RF Duplexer N-K Type Connector
RF Duplexer covers frequency from 351-366MHz with 80dB 200W with N-K Connector, which is widely used for IBS DAS
10W RF Cavity Duplexer Diplexer
VHF 400-470MHz 10W RF Cavity Duplexer Diplexer with SMA Connector
VHF 400-470MHz 10W  Duplexer  for Radio Repeater or Mobile Radio
VHF Duplexer
VHF 146.1-147.7MHz 30W RF Cavity Duplexer Diplexer With N-Female Connector
The VHF 146.1-147.7MHz 30W  Duplexer  for Radio Repeater or Mobile Radio
VHF Duplexer
VHF 146.1-147.7MHz 30W RF Cavity Duplexer Diplexer With N-Female Connector
The VHF 146.1-147.7MHz 30W  Duplexer  for Radio Repeater or Mobile Radio
RF Duplexer
High quality 30Watt 137-180MHz Duplexer with N-Female/BNC-Female for Radio Repeater or Mobile Radio
RF Connector,N Male for Leaky Feeder 1-1/4" Cable,it has low PIM -150dBc.
400MHz Mini Duplexer
30W 422/412MHz Mini Duplexer with SMA-Female Connector
30W High Isolation 422/412MHz Mini Duplexer with SMA-Female Connector
138-156MHz 152-175MHz Duplexer N/BNC-F
High Quality 150W 138-156MHz 152-175MHz Duplexer N/BNC-F High Isolation 80dB 1.50VSWR RF Duplexer for DAS Radio Repeater
138-156MHz 152-175MHz Duplexer N/BNC-F, Low PIM, High Isolation. It's Easy For Installation.
VHF Compact Duplexer
High Quality 150W 138-156MHz VHF Compact Duplexer N/BNC-F
138-156MHz Duplexer N/BNC-F, High Power Capacity, High Isolation. It's Easy For Installation.
UHF Compact Duplexer
UHF 400-512MHz 6 Cavity Pass-Reject Duplexer
400-512MHz Duplexer with 6 cavity,high isolation. It's Easy For Installation.
800mhz duplexer
Customized 800-870MHz 100W Duplexer with High Isolation
800-870MHz Duplexer witth customized, High Power Capacity, High Isolation. It's Easy For Installation.
VHF Compact Duplexer
High Quality 200W 380-396.5MHz VHF Duplexer with DIN-F
380-396.5MHz Duplexer  with DIN-F, High Power Capacity, High Isolation. It's Easy For Installation.
UHF Compact Duplexer
High Quality 5W 451-461.5MHz UHF Duplexer with N-F
451-461.5MHz Duplexer  with N-F, High Power Capacity, High Isolation. It's easy for installation.
824-894 1710-1755/2110-2155 1850-1990 2500-2690 3300-3800MHz rf combiner
Maniron 800-3800MHz Low PIM Outdoor Penta-band Combiner
This Outdoor Penta-band Combiner covers frequency 824-894MHz 1710-1755/2110-2115MHz/1850-1990MHz 2500-2690MHz 3300-3800MHz with N/4.3-10/DIN-Female Connector,which is in Low PIM -153dBc
2 in 1 out Hybrid Coupler
698-2700MHz 2 in 1 out 3dB Hybrid Coupler
698-2700MHz 2 in 1 out hybrid coupler , 200W with heat sink, N-female

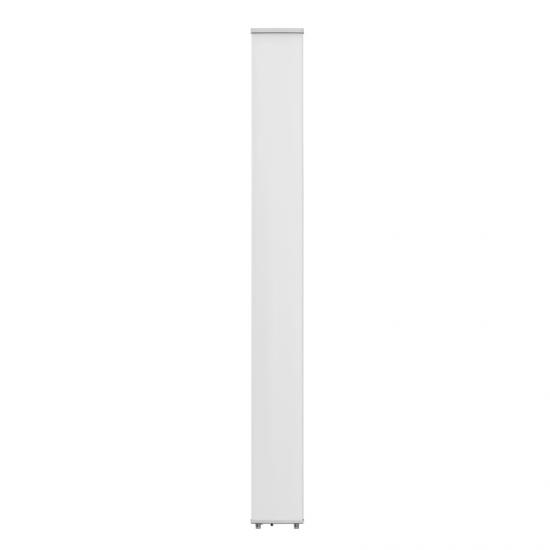

Base station Antenna
