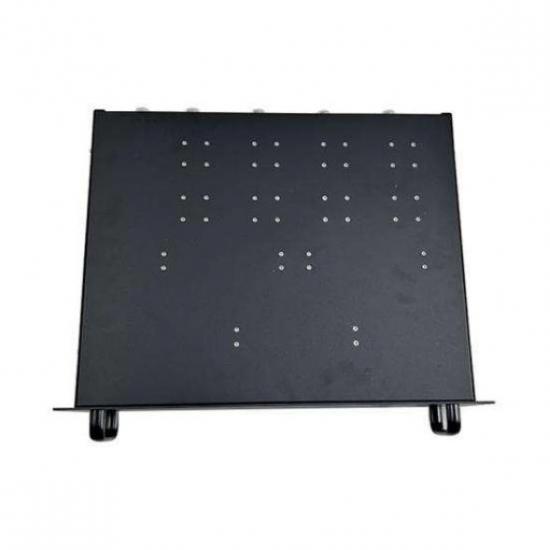

4 Channel Combiner 873-960/1710-1880/1920-2170/2500-2690MHz

4 Ways Combinercovers frequency 873-960/1710-1880/1920-2170/2500-2690MHz, with high Isolation, is widely used for Cellular indoor network/Amplifier/Repeater/POI

Item NO.:
MNC-8726-4NF-1U
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black
MOQ:
10

Inquiry now

Products Details

Product Name:

4 Ways Combiner cover 873-960/1710-1880/1920-2170/2500-2690MHz

Product Feature:

◆The product is designed multi-technologies GSM/ WCDMA/LTE System

◆ Rack 19” 1U mounted for indoor use

◆ High Isolation between 850Mhz and 900Mhz

Technical &Mechanical Specifications:

	Port 1	Port 2	Port 3	Port 4
Frequency Band (MHz)	873 - 960MHz	1710-1880MHz	1920 – 2170MHz	2500 – 2690MHz
Imsertion Loss	0.5dB max		0.5dB max
V.S.W.R	1.35 max
Isolation	50dB
Impedance	50Ω All ports
Average Maximum Power	80W max. per input port
Connector	N –Female
Mounting	Rack 19inch
Operating Temperature	-10 to + 50°C
