Low VSWR RX:806-821MHz TX:851-866MHz Duplexer with N-Female Connector

Low VSWR RX:806-821MHz TX:851-866MHz  Duplexer with N-Female Connector
  • Item NO.:

    MND-800-NF
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    Silver Color
  • Products Details

Product Name

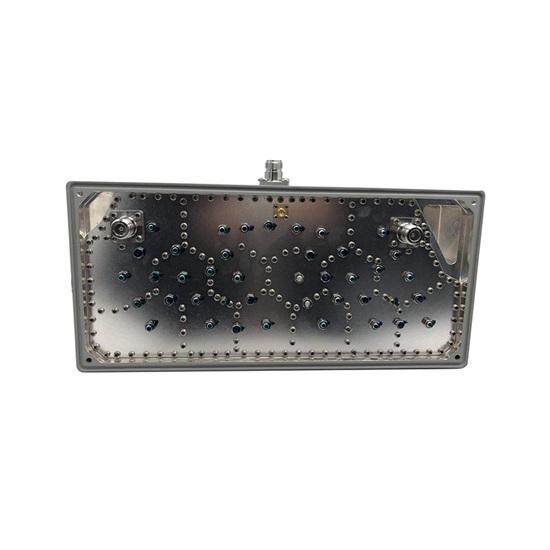

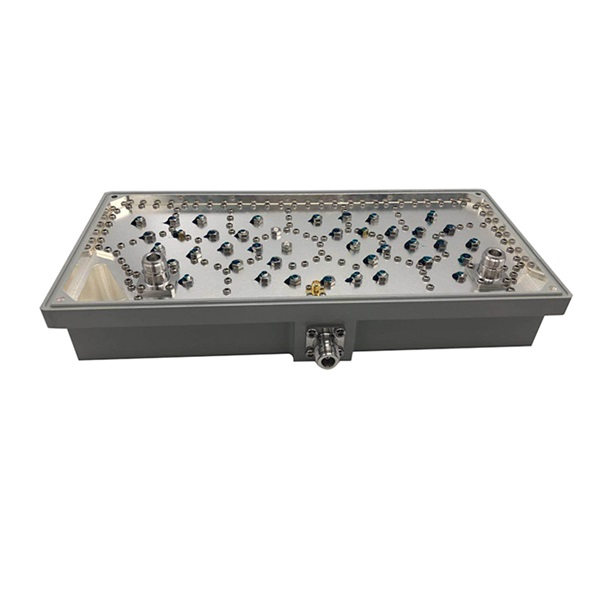

Duplexer covers frequency 806-821MHz 851-866MHz with High Isolation and Low VSWR


Product Features

◆ Wide Frequency Band

◆ Low VSWR & High Isolation

◆ Simple Installation


Technical &Mechanical Specifications

TETRA

Item

RX

TX

Frequency Range (MHz)

806-821

851-866

Insertion Loss(dB)

≤1.6

≤1.6

Ripple(dB)

≤0.6

0.6

VSWR

1.2

1.2

Attenuation

(dB)

≥75@DC -768MHz

≥68@768 786MHz

≥23@786 803MHz

≥23@824 841MHz

≥73@841 851MHz

≥90@851 866MHz

≥75@866 12750MHz

934-960MHz、1710-1785MHz、1805-1920MHz、1920-1980MHz、2010-2025MHz、2110-2170MHz、2300-2690MHz、3300-3600MHz)

≥75@DC -806MHz

≥90@806 -821MHz

≥23@821-848.5MHz

≥23@868.5MHz -885MHz

≥60@885MHz1710MHz

≥75@1710-12750MHz

1710-1785MHz、1805-1920MHz、1920-1980MHz、2010-2025MHz、2110-2170MHz、2300-2690MHz、3300-3600MHz)

Main signal harmonic position suppression>45dB

Isolation(dB)

90@(Tx-Rx)

Max. Input Power (W)/each port

WCDMA  PAR=8dB       30(Avg.)300(Peak):each input port

20(Avg.)200(Peak):BID port

5(Avg.)50(Peak):output port

PIM(dBc)

145@2×43dBm

FWD port(dB)

40±3 @806MHz866MHz (Tx - FWD)

Impedance(Ω)

50

Num of Ports

Input port 1(Tx)、Output port 2(Rx\FWD)、BID port 1(ANT)

Operating Temp. ()

-40~+85

IP Rate

IP68

Weightkg

≤3

Connectors

N-KANTTxRx; SMA-K(FWD)

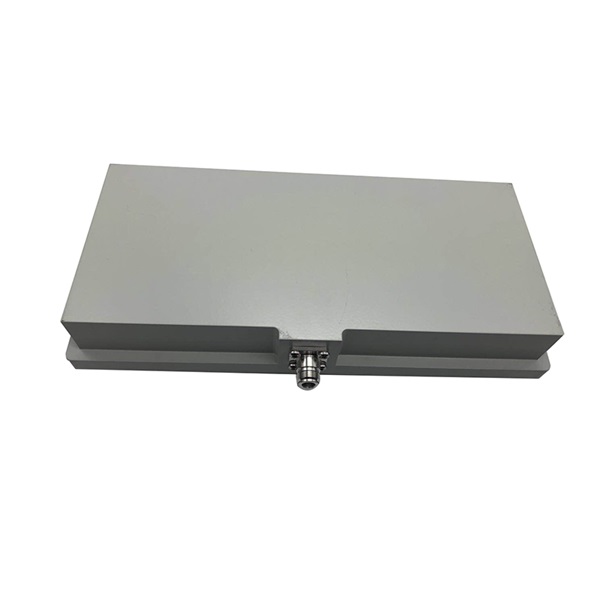

Product Picture
