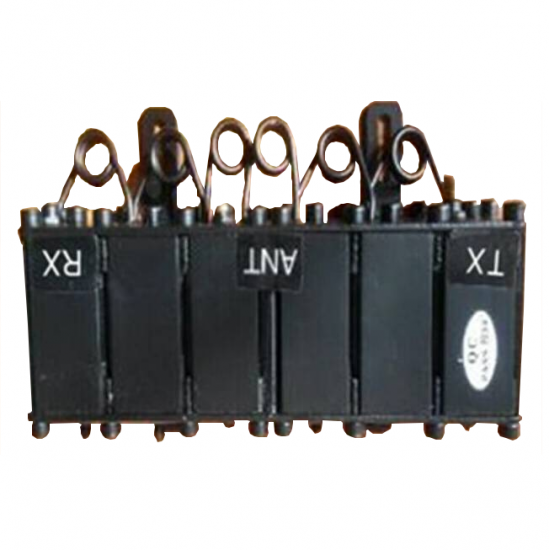

VHF 400-470MHz 10W RF Cavity Duplexer with SMA Connector

The MN-450-MINI Duplexer is a compact, high-performance RF duplexer designed for 400-470MHz wireless communication systems. With low VSWR, high isolation, and stable 50Ω impedance, this mini duplexer enables simultaneous transmit and receive operation while maintaining excellent signal quality.

Item NO.:
MN-450-MINI
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou

Inquiry now

Products Details

Product Name

10W VHF 400-470MHz Cavity Duplexer with SMA Female connector

Product Features

◆ Wide Frequency Band

◆ Low VSWR

◆ Low Attenuation Accuracy

◆ Widely used for In-building Solutions

Technical & Mechanical Specifications

Model Type	MN-450-MINI
Frequency Range	400-470MHz
VSWR	≤1.35
Bandwidth	±100KHz
Frequency Spacing	＞5-15MHz
Insertion Loss	≤2.0dB
Isolation	≥70dB
Maximum Input Power	10W
Normal Impedance	50Ω
Connector	SMA
Operating Temperature	-20~+50℃
Weight	0.5kg

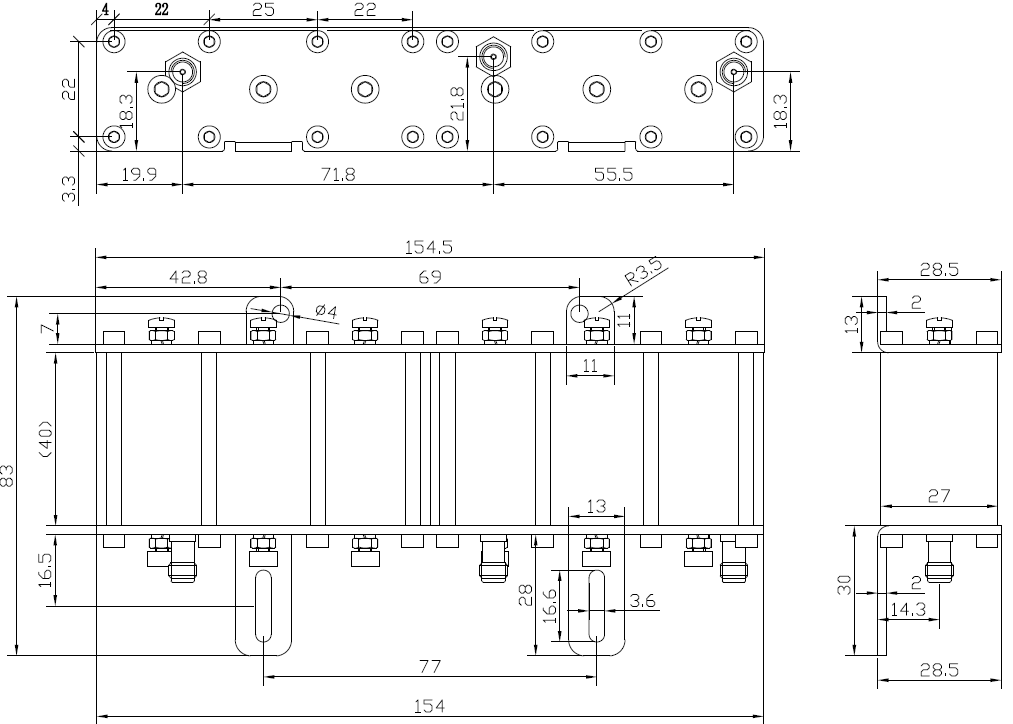

Dimensions	83×154×28.5(±0.5mm)

Product Pictures
