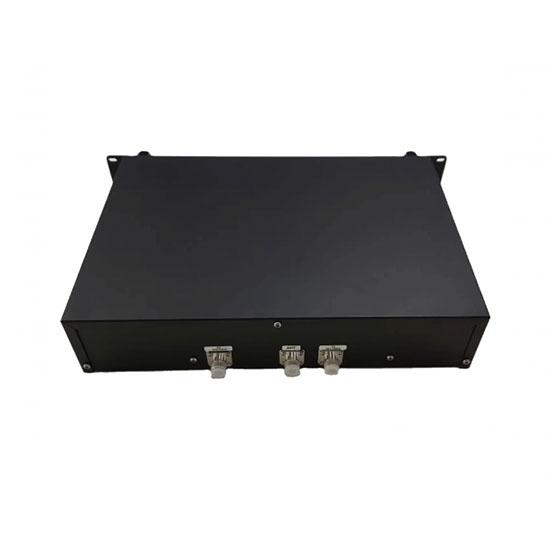

800mhz duplexer
800mhz duplexer 800mhz duplexer 800mhz duplexer

Customized 800-870MHz 100W Duplexer with High Isolation

800-870MHz Duplexer witth customized, High Power Capacity, High Isolation. It's Easy For Installation.

  • Item NO.:

    MNL-DP-KSGQ-800D

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Black
Inquiry now
  • Products Details

Product Name

100W 800-870MHz Duplexer with High Isolation 80dB Low Insertion Loss

Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

                                         Product Name

                                                      Duplexer

                       Frequency Band(MHz)

                800-870MHz

                 Maximum Input Power
                    100W
                    Insertion Loss

                    0.8dB

                        Bandpass width （MHz）
                   15
                 VSWR

                   ≤1.25

                  Frequency Spacing(MHz)
                    45
                  Isolation
                      80dB
                 Normal Impedance
                      50Ω

                  Connector

                      N-F/BNC-F

                  Operating Temperature
                     -20℃ - +50℃
Outline Pictures:
800mhz duplexer
