800MHz 100W RF Duplexer With SMA Type And High Isolation

This duplexer covers frequency band RX:806-825 MHz TX:851-870 MHz with Low Insertion Loss  and high Isolaton.
  • Item NO.:

    MND-800-SMA
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    Black
  • Products Details

Product Name

RF Duplexer covers frequency RX: 806-825MHz TX:851-870MHz which is in high rejection and low Insertion Loss.


Product Features

◆ Wide Frequency Band

◆ Low Insertion Loss & high rejection

◆ Simple Installation


Technical &Mechanical Specifications

Product Name

800MHz Duplexer

Item NO

MND-800-SMA

Port

RX

TX

Frequency Range

806-825MHz

851-870MHz

Insertion Loss

1dB

1dB

Passband Ripple

0.6dB

0.6dB

Isolation

85dB @806-870MHz

Return Loss

20dB

Impedance

50 Ohm

Coupling port

40dB

Power Handling

100W

Connector Type

SMA

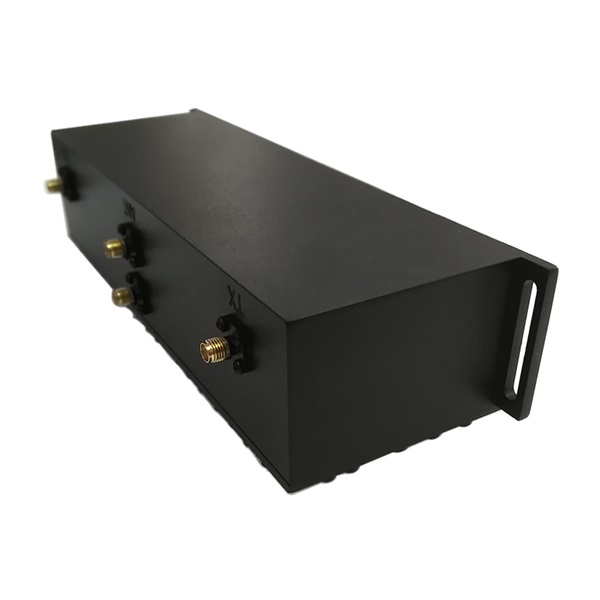

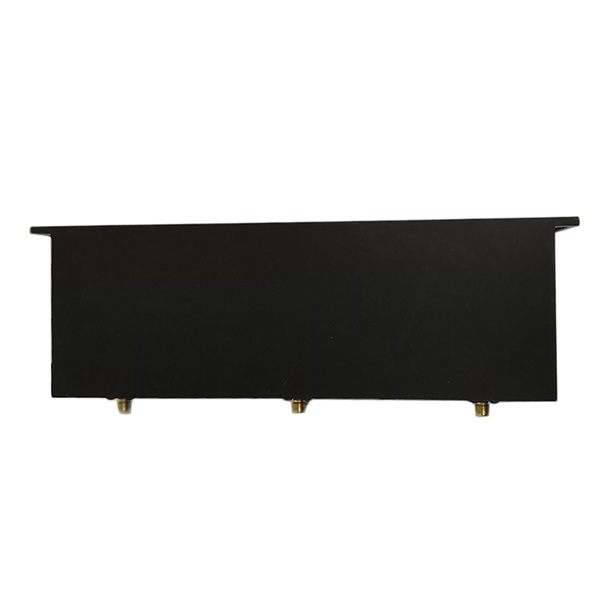

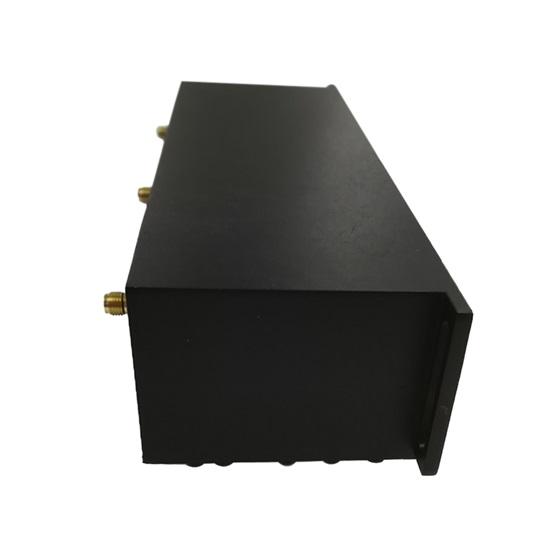

Product Picture
