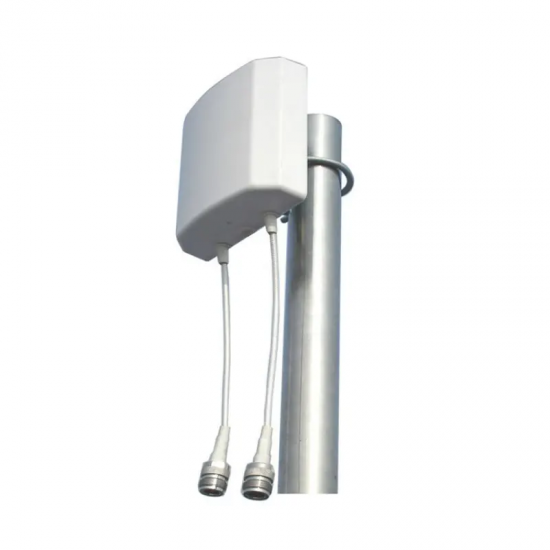

2.4GHz MIMO Panel Antenna with High Gain 10/12dBi

This MIMO panel antenna operates in the 2400-2500MHz frequency range, delivering high gain of 10/12dBi. It is designed for reliable, high-performance wireless communication in various applications.

Item NO.:
MPA-2425-12-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou

Inquiry now

Products Details

Product Name

2.4GHz Dual Polarized MIMO Panel Antenna with High Gain 10/12dBi for Wireless Communication

Product Features

◆ Wide Frequency Band

◆ Low VSWR

◆ High Gain

Electrical Specifications
Frequency(MHz)	2400-2500MHz
Gain(dBi)	10/12dBi
VSWR	≤1.5
Power Handling	50W
Impedance	50 Ohm
Polarization	Vertical and Horizontal
F/B Radio-dB	≥20
