470-512MHz RF Red VHF UHF Antenna

470-512MHz RF Antenna is used for VHF,UHF,Public Safety Solution System.The color is as same as 138-960MHz Components,like power splitter,directional coupler,hybrid coupler,combiner
  • Item NO.:

    YQV-N-3-470-512-1
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/NingBo
  • Color:

    Red
  • MOQ:

    2
  • Products Details

Product Name


470-512MHz RF Red VHF UHF Antenna


Technical &Mechanical Specifications

Frequency(MHz)
470-512
Input Impedance( Ω ):
50
Vertical Plane
89.9° for phi=0° and 76.9° for phi=90° @ 475 MHz
VSWR
<2.0:1
Horizontal Plane
360°
Maximum rated RF Power(W)
150
Impedance(Ohm) 50
Type Connector :
N female
Gain(dBi)
3
Mounting Master Tube Diameter(mm):
30-55
Color Red
Products Pictures

RF Red VHF UHF Antenna

RF Red VHF UHF Antenna 2

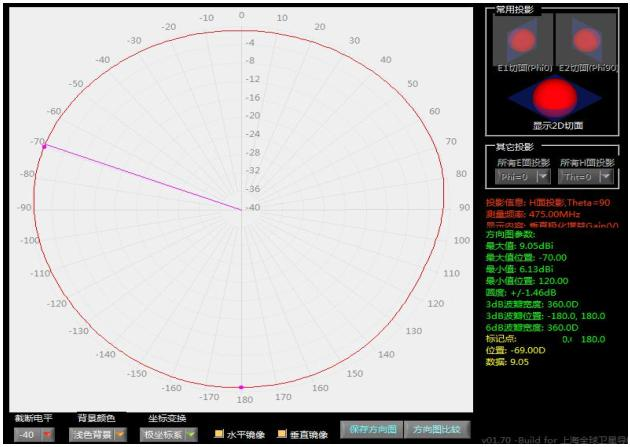

RF Red VHF UHF Antenna test report


Hefei Maniron Electronic And Technology Co LTD., Esatablished in 2002,is a leading manufacturer of RF components,We offer OEM services.Headquarters of Maniron Electronic is located at hi-tech developing district in Hefei Anhui,China.Includes two factories.At the same time,Maniron’s market network has been all over the world.Maniron Electronic has a huge fellowship that is composed of many high-level technologists.And also has established a research institution which cooperating with some famous universities.


Q:What is your payment terms?

A:We accept the T/T, Western Union, L/C and so on.

Q:When can you arrange the shipment after I have placed an order ?
A: we can arrange shipment within 3days.If for the earphone and antenna, usually we can arrange the shipment 5-7days.

Q: Could you supply the sample for me to test first ?
A: Yes, we can supply the sample first, however, the customer should bear the cost.

Q: What is the MOQ?
A: Usually, it is serious requirement. However, it depends on different products.

Q. Can you accept Customized ?
A: OEM and ODM service is welcome
