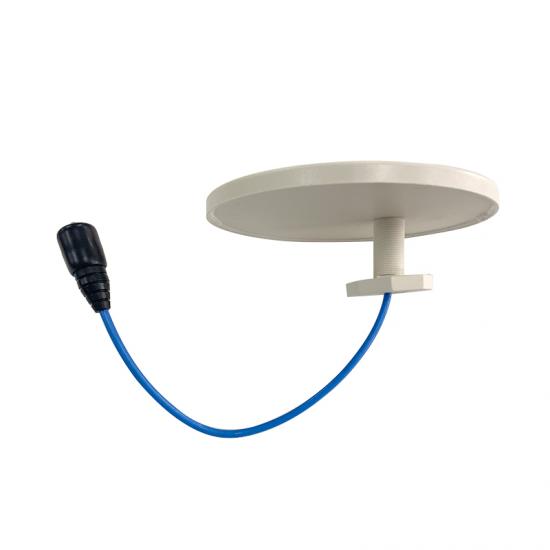

Maniron 698-2700MHz Slim RF Omni Ceiling Antenna

The omni ceiling antenna covers frequency 698-2700MHz,which is slim and in low PIM -153dBc.
  • Item NO.:

    MOA-727-24-NF-153T
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen
  • Color:

    White
  • Products Details

Product Name: 698-2700MHz Low PIM Slim Indoor Omni Antenna



Product Features

◆ With Wide Frequency Band 698-2700MHz

◆ Low VSWR

◆ Low PIM

◆ Widely used for In-building Solutions

The Omni ceiling antenna covers frequency band 698-2700MHz,which is widely used for IBS DAS.It's in low PIM

Technical &Mechanical Specifications

Model No.
MOA-727-24-NF-153T
Frequency(MHz)
698-960
1710-2700
Polarization
Vertica
Vertical
Gain (dBi)
2
4
Horizontal beam width(°)
360°
360°
Vertical beam width(°)
85°
50°
VSWR
≤1.5
3rd PIM(dBc)
≤-153dBc@2*43dBm
Total Input Power(W)
50
Impedance (ohm)
50
Connector
N-Female



Products Pictures

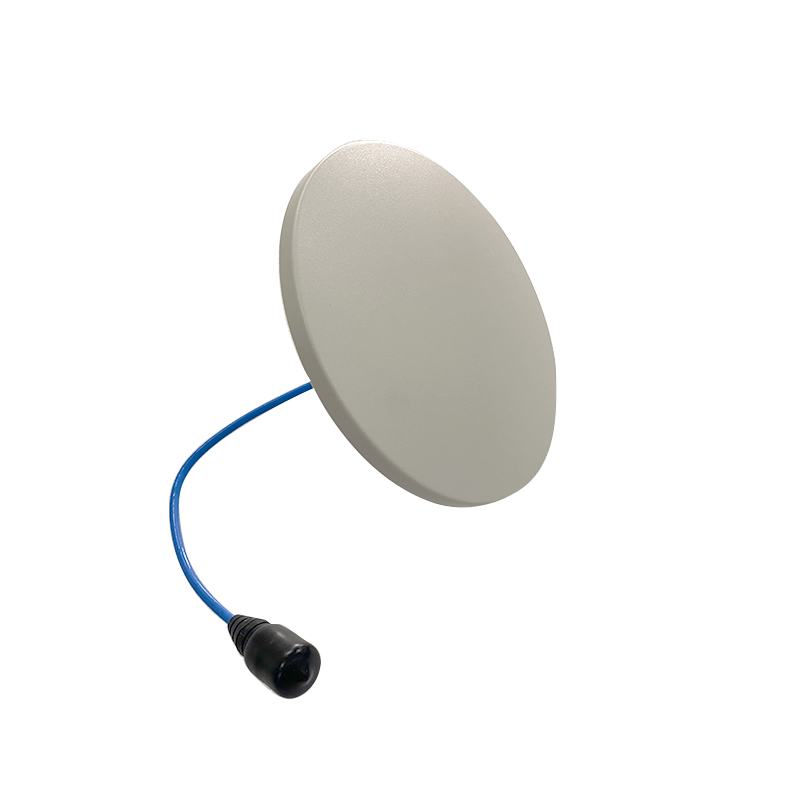

698-2700MHz low pim rf antenna
