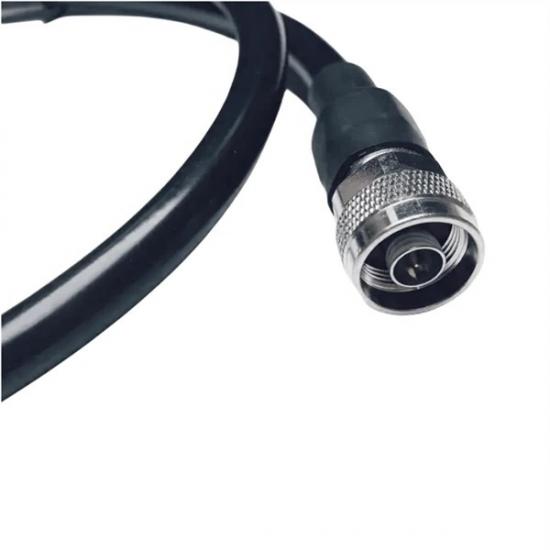

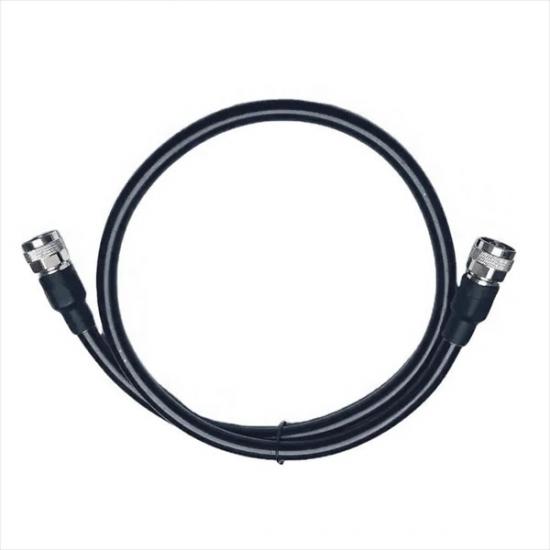

1M RG214 Jumper Cable with N male to N male connectors

RG214 Jumper cable uses 1meter of RG214 cable. This jumper cable is fitted with N Male to N male connectors on both sides. The crimp connectors include heat shrink.
  • Item NO.:

    MNJC-RG214-NMNM-1
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    Black/Customized
  • Products Details

Product Name

RG214 1M Jumper Cable with N male to N male connectors on ends


Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ Wide band

◆ Widely used for In-building Solutions application.


Technical &Mechanical Specifications

                                  Frequency  (GHz)

                                        DC-6G

      VSWR

≤1.20@0~3GHz

≤1.30@3~6GHz



Impedance (Ω)

50

Center Conductor

Brass,Gold Plating

Insulators

PTFE
Body

Brass,Nickel Plating

Gasket

Silicone Rubber

Connectors

N-male straight connector

                         Temperature Range
                              -40℃~+85℃



OUR SERVICES


1. Professional skills support for RG214 1M Jumper Cable with N male to N male Connectors on both ends.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose!
