RF band pass cavity filter 3600-4100MHz

Item NO.:
MNL-BPF-3641-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Gray
MOQ:
5

Inquiry now

Products Details

Product Name :

RF band pass cavity filter 3600-4100MHz

Product Features:

◆Compact, low weight

◆High reliability

◆Simple installation rf cavity filter

Technical &Mechanical Specifications:

Electrical Specifications
Frequency	CH：3600-4100MHz
VSWR	1.3
Insertion loss	0.3dB
Rejection	≥50dB@700-2700MHz
Power handling	100 W Avg
Impedance	50W
Applications	IP67

Product Photos:

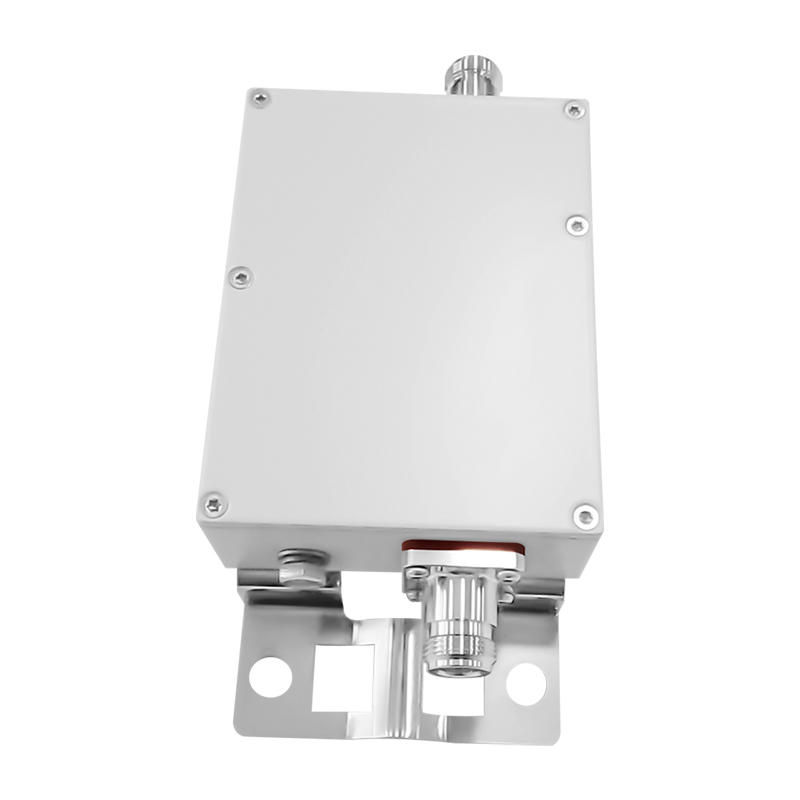

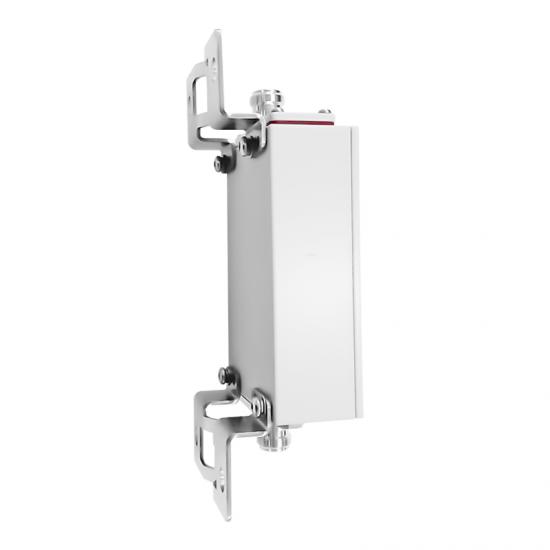

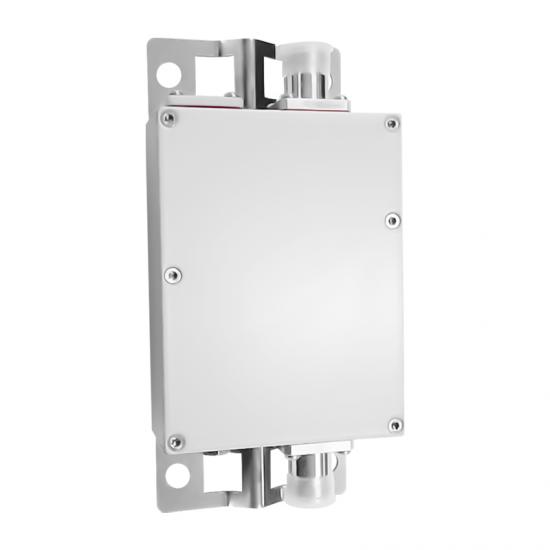

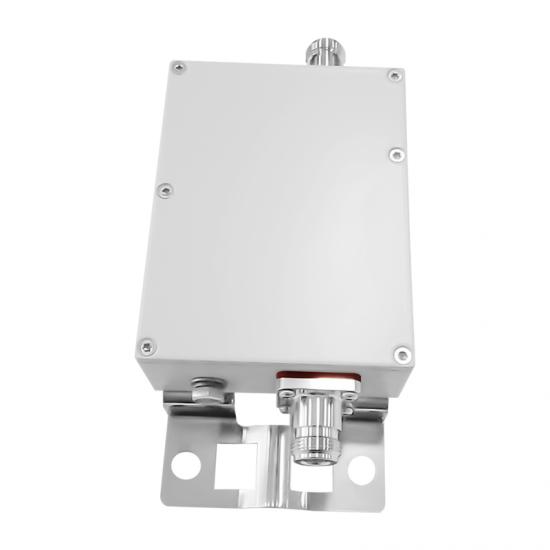

rf bandpass filter
