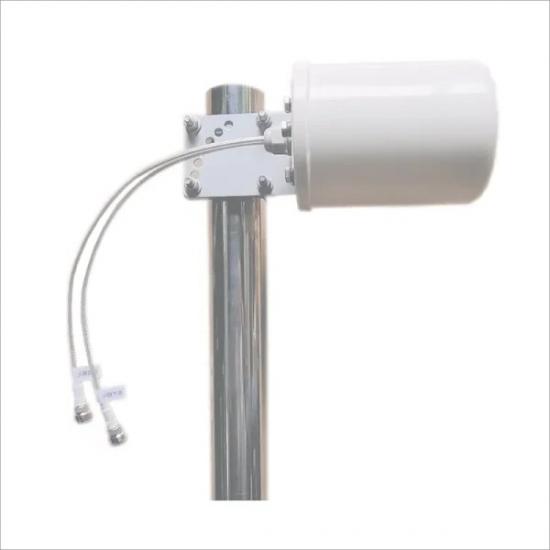

Hot Sale 3700-4000MHz 10dBi MIMO Log-Periodic Directional Antenna

MIMO Log-Periodic Antenna covering 3700-4000MHz with up to 10dBi gain, ideal for DAS, 4G/5G indoor coverage and stable signal distribution.

Item NO.:
MLPA-3740-2NF-10dBi
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen

Inquiry now

Products Details

Product Name:

MIMO Log-Periodic Antenna 3400-4000MHz Directional Antenna

Product Feature:

◆ 2G/3G/4G/LTE Coverage

◆ Low Insertion Loss

◆ Widely used for DAS

Electrical & Mechanical Specifications:

Frequency range (MHz)	3700～4000
Polarization	Vertical and Horizontal
Peak Gain (dBi)	10±1
Horizontal beam width (°)	65±10
Vertical beam width (°)	50±10
Front-to-back ratio (dB)	≥15
Impedance (Ω)	50
Isolation (dB)	≥20
VSWR	≤2.0
Maximum power (W)	50
Lighting protection	DC Ground
Connector	2*N Female or Customized
Exposed cable length (cm)	35 or Customized
Connector position	Bottom
Antenna size (mm)	Φ100*130
Packing size (mm)	234113113
Weight (kg)	0.6 (Include bracket)
Radome material	ABS
Radome color	White
Operating temperature (℃)	-30～60
Application	Outdoor
Mechanical tilt (°)	0～60
Rated wind velocity (m/s)	60
Suitable pole diameter (mm)	Φ25-Φ50
Mounting kit	JM-T4A

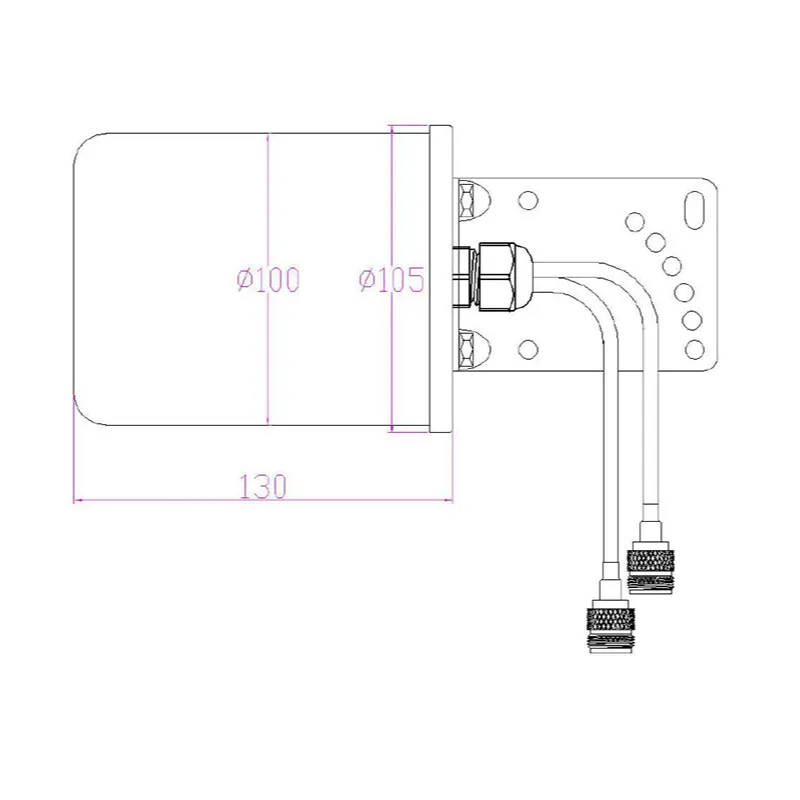

Product Drawing:
