Newly 769-775 & 799-809 & 851-854 Band Pass Filter with High Rejection

Band pass Filter which covers from frequency 769-775 & 799-809 & 851-854MHz.It's in low vswr and insertion loss,high rejection.

Item NO.:
MNF-7NPSPAC-IN1
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
Gray or customized

Inquiry now

Products Details

Product Name

769-775 & 799-809 & 851-854MHzRF Bandpass cavity Filter.

All parameters can be customized according to customers' requirements.

Product Feature

◆Compact, Low Weightbandpass filter

◆High Reliability

◆Simple Installation

Technical &Mechanical Specifications

Frequency	769-775 & 799-809 & 851-854MHz
VSWR	1.2
Insertion loss	≤4.0
Rejection(dB)	≥55@0-767MHz ≥30@767-768MHz ≥30@777-798MHz ≥30@810-849MHz ≥30@855-856MHz ≥30@806-2200MHz
Return Loss	≥18dB
Input power	50W
Impedance	50 ohm
Appliactions	IP60
Connectors type	N female
Outer Dimension(mm)	359x274x46
Packing	1Pce in box

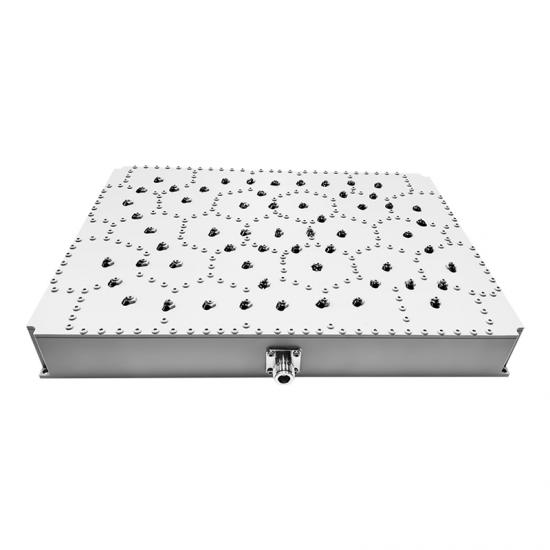

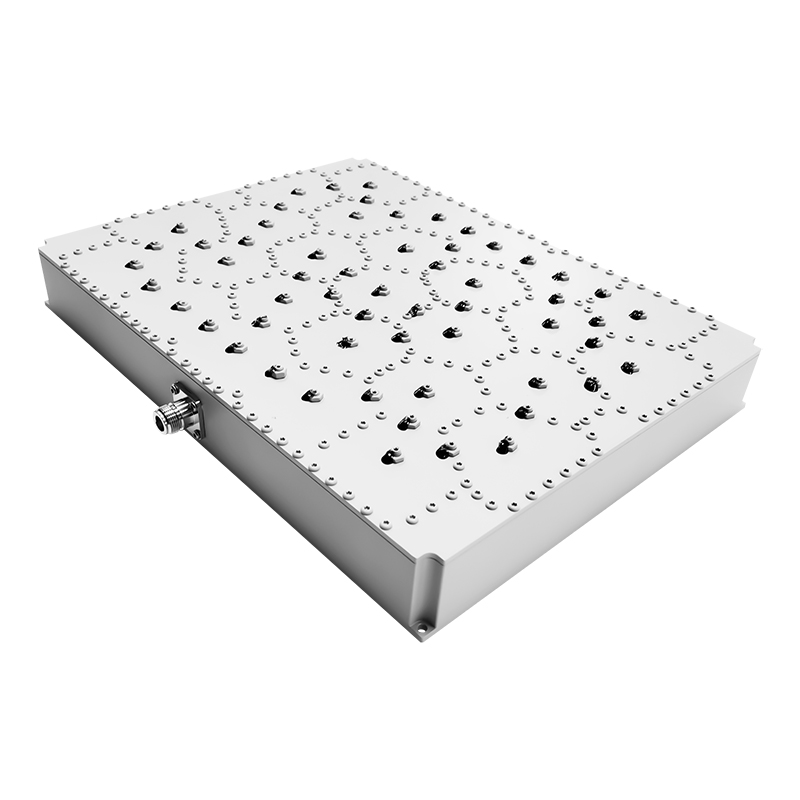

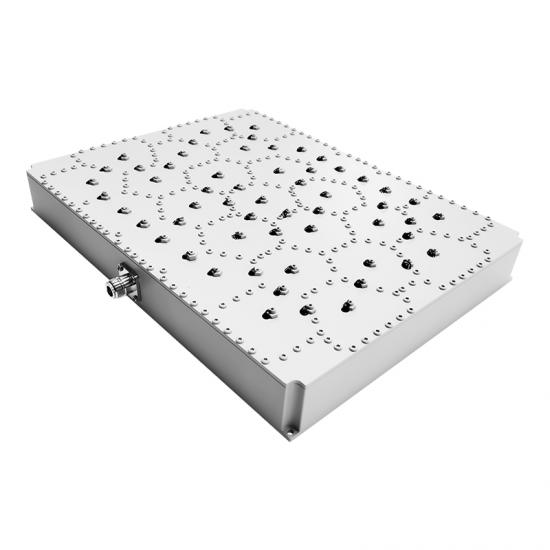

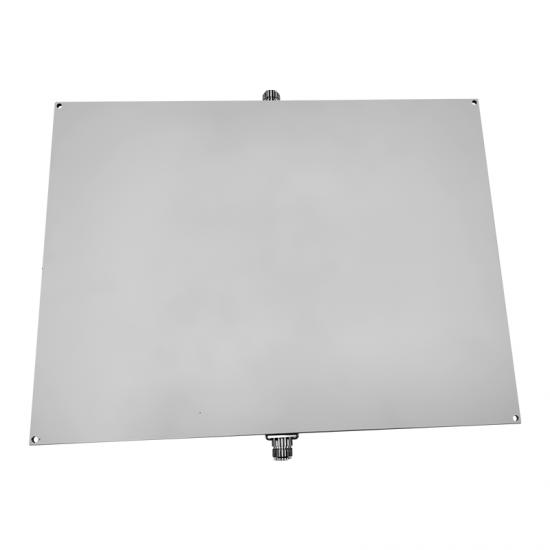

Product Pictures
