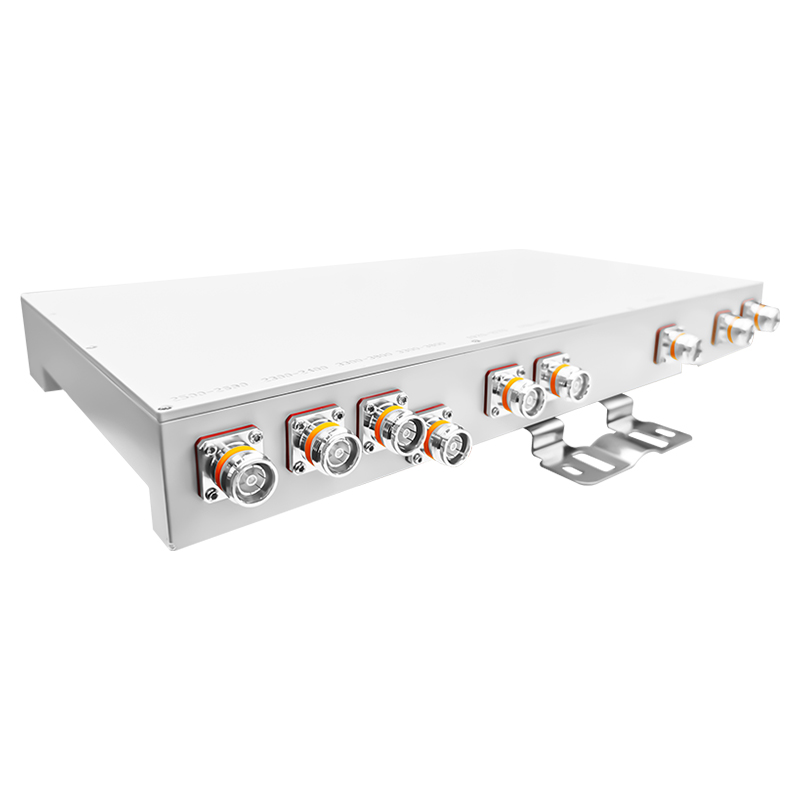

Nona-Band Low PIM Combiner
Nona-Band Low PIM Combiner Nona-Band Low PIM Combiner Nona-Band Low PIM Combiner

RF Parts Nona-Band Low PIM Combiner 703-3800MHz

Wide Frequency Band 703-803/825-882.5/885-960/1710-1880/1920-2170/2300-2400/2500-2690/3300-3800/3300-3800MHz 9 Nona Band Combiner widely used for In-building Solutions

  • Item NO.:

    MNC-9-703/3800-4F-15

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name

703-803/825-882.5/885-960/1710-1880/1920-2170/2300-2400/2500-2690/3300-3800/3300-3800MHz 9 Band Combiner with 4310 Female connector for DAS IBS


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

 Model
MNC-9-703/3800-4F-150
 Freq-MHz

Port1：703-803MHZ

Port 2: 825-882.5MHz

Port 3: 885-960MHz

Port 4: 1710-1880MHz

Port 5: 1920-2170MHz

Port 6: 2300-2400MHz

Port 7: 2500-2690MHz

Port 8: 3300-3800MHz

Port 9: 3300-3800MHz

 Insertion Loss-dB

≤1.5 dB (703-803MHz)

≤2.6 dB (825-960MHz)

≤1.5 dB (1710-2690MHz)

≤4.0 dB (3300-3800)

 Isolation-dB

≥50dB for Cross Band

≥25dB for Same Bands

 Return Loss
≥20dB
 PIM 3rd-dBc
≤ -150dBc
 Average Power-W
200W
 Impedance-Ω
50
 Connector
4310-female
 Temp(deg)
-40~+65
 Applications
Indoor/Outdoor（IP65）

Outline Drawings:




Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.Maniron has a huge fellowship that is composed of many high-level technologists.We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also other passive components with Low PIM values,such as -150dBc,160dBc,161dBc etc.
