Product Description
MN‑65D0727B12‑17D18F‑I‑W is a 12‑Ports 2L4H multi‑band base station antenna with ±45° dual‑polarization, covering 690‑960MHz and 1427‑2690MHz. Integrated RET compliant with AISG2.0/3GPP enables independent continuous electrical downtilt from 2‑12° for each array. It features VSWR ≤1.5, IM3 ≤‑150dBc(2×43dBm), inter‑port isolation ≥25dB. Equipped with 12 bottom‑mounted 4.3‑10 female connectors, DC grounding for lightning protection, operating temperature ‑40℃~+70℃. Complies with NGMN‑BASTA V12.0, ideal for 4G&5G multi‑RAT macro co‑site deployment to save tower space.
Technical & Mechanical Specifications
Electrical Specifications
Frequency Range (MHz)
2 × (690 – 960) (R1, R2)
690-792
792-880
880-960
Polarization
±45°
Electrical Downtilt (°)
2-12, Independently continuously adjustable
Gain (dBi)
at mid Tilt
15.4
15.9
16.4
over all Tilts
15.3±0.9
15.8±0.9
16.3±0.9
Side lobe suppression for first side lobe above main beam (dB)
> 15
> 15
> 16
Horizontal 3dB Beam Width (°)
65±5
62±4
63±6
Vertical 3dB Beam Width (°)
11. 1±0.9
10±0.9
8.9±0.5
Cross-Polar Ratio, 0° (dB)
>20
>21
>21
Front to Back Ratio, ±30° (dB)
>21
>22
>24
Frequency Range (MHz)
2 × (1710 – 2690) (Y1, Y4)
1710-1880
1920-2170
2200-2500
2500-2690
Polarization
±45°
Electrical Downtilt (°)
2-12, Independently continuously adjustable
Gain (dBi)
at mid Tilt
17.1
17.5
17.9
18.4
over all Tilts
16.9±0.5
17.4±0.5
17.7±0.5
18.3±0.5
Side lobe suppression for first side lobe above main beam (dB)
> 17
> 17
> 17
> 15
Horizontal 3dB Beam Width (°)
69±6
65±4
62±6
57±5
Vertical 3dB Beam Width (°)
7.3±0.5
6.5±0.5
5.5±0.5
5. 1±0.3
Cross-Polar Ratio, 0° (dB)
> 18
>21
>21
>21
Front to Back Ratio, ±30° (dB)
>22
>25
>24
>24
Frequency Range (MHz)
2 × (1427 – 2690) (Y2, Y3)
1427-1518
1710-1880
1920-2170
2200-2500
2500-2690
Polarization
±45°
Electrical Downtilt (°)
2-12, Independently continuously adjustable
Gain (dBi)
at mid Tilt
15.6
17.1
17.5
17.9
18.4
over all Tilts
15.5±0.7
16.9±0.5
17.4±0.5
17.7±0.5
18.3±0.5
Side lobe suppression for first side lobe above main beam (dB)
> 15
> 16
> 16
> 15
> 15
Horizontal 3dB Beam Width (°)
85±6
69±6
65±4
62±6
57±5
Vertical 3dB Beam Width (°)
8.5±0.6
7.3±0.5
6.5±0.5
5.5±0.5
5. 1±0.3
Cross-Polar Ratio, 0° (dB)
> 17
> 18
>21
>21
>21
Front to Back Ratio, ±30° (dB)
>23
>22
>25
>24
>24
VSWR
≤ 1.5
Intermodulation IM3 (dBc)
≤-150 (2 x 43 dBm carrier)
Cross Polar Isolation (dB)
≥25 (R1, R2); ≥27 (Y1, Y4); ≥25 (Y2, Y3);
Interband isolation (dB)
≥25
Max. power per port (W)
250 (R1, R2); 200 (Y1, Y2, Y3, Y4)
Impedance (Ω)
50
Grounding
DC Grounding
Values based on NGMN recommendations on Base Station Antenna Standards V12.0(BASTA V12.0)
Mechanical Specifications
|
RET type |
Integrated RET (AISG2.0/3GPP) |
|
AISG Connectors (2 in 2 out) |
4x8 pin (in: Male; out: Female) |
|
Connector |
12 x 4.3- 10 Female, Bottom |
|
Antenna dimensions (H x W x D) (mm) |
1985 x 500 x 160 |
|
Packing dimensions (H x W x D) (mm) |
2260 x 615 x 290 |
|
Antenna weight (kg) |
35.3 |
|
Clamps weight (kg) |
6.8 |
|
Diameter of installation pole (mm) |
φ50 ~φ 125 |
|
Radome material |
Fiberglass |
|
Radome color |
Light grey |
|
Operational temperature (℃) |
-40 to +70 |
|
Wind load at 42m/s (N) |
1481/ 364/ 1481 (Frontal/ Lateral/ Rearal) |
|
Max. operational wind speed (km/h) |
200 |
Product Images

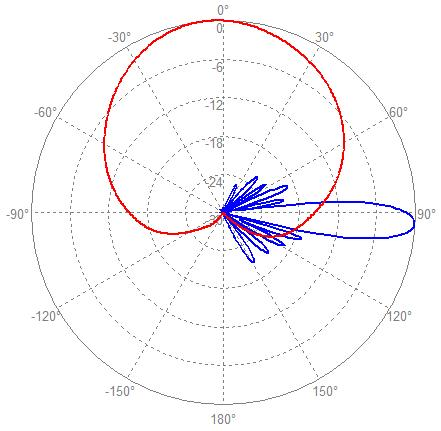

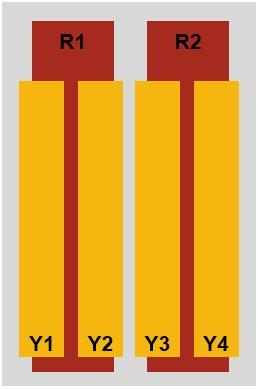

R1/R2: 690-960MHz

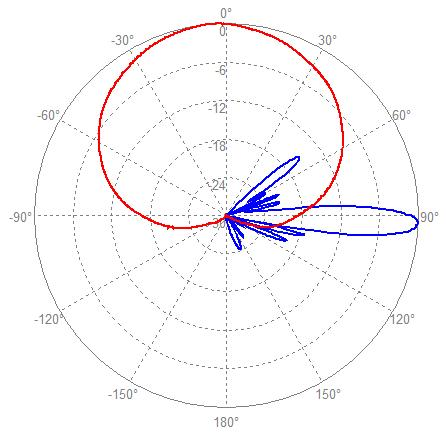

Y1/Y4: 1710-2690MHz

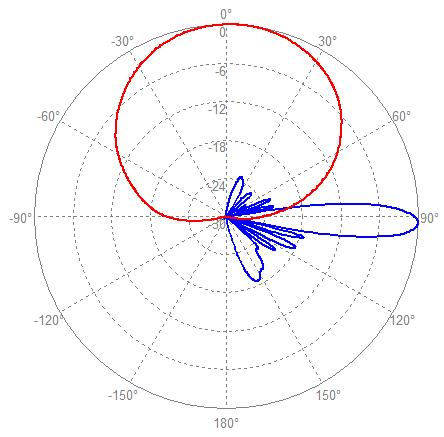

Y2/Y3: 1427-2690MHz
