Base Station Antenna 698~960MHz/1710~2690MHz 65°/65° 4.6/17.5dBi 2°~12°/2°~12° Integrated RCU Antenna

Base Station Antenna has excellent PIM performance and high gain with  8x4.3/10 Female connector, cover GSM/CDMA/PCS/3G/4G/5G.
  • Item NO.:

    MBA-727-4F-08-17.5-1
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo
  • Color:

    White
  • Products Details

 Product Name

Base Station Antenna 698~960MHz/1710~2690MHz 65°/65° 4.6/17.5dBi 2°~12°/2°~12° Integrated RCU Antenna


Product Features

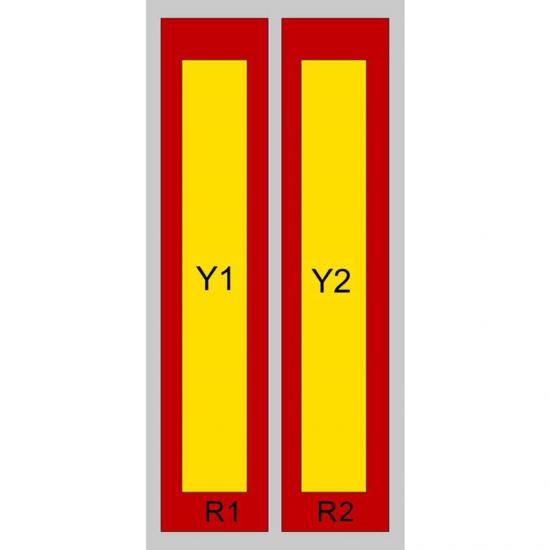

 Includes 2 cross polarization arrays(4ports) for low band(698-960MHz) and 2 cross polarization arrays(4ports) for high band(1710-2690MHz)

 Uses the 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector

◆ Single integrated and field replaceable RCU provide up to 5 RETs for independent electrical tilt control for each array. Compliant with AISG/3GPP


Technical Specifications

Frequency Range(MHz)

R1/R2: 698-960



698-806

790-862

824-894

880-960

Polarization

±45°

Gain at mid tilt (dBi)

13.7

14.1

14.3

14.6

Gain over all tilts (dBi)

13.5±0.5

13.9±0.5

14.1±0.5

14.4±0.5

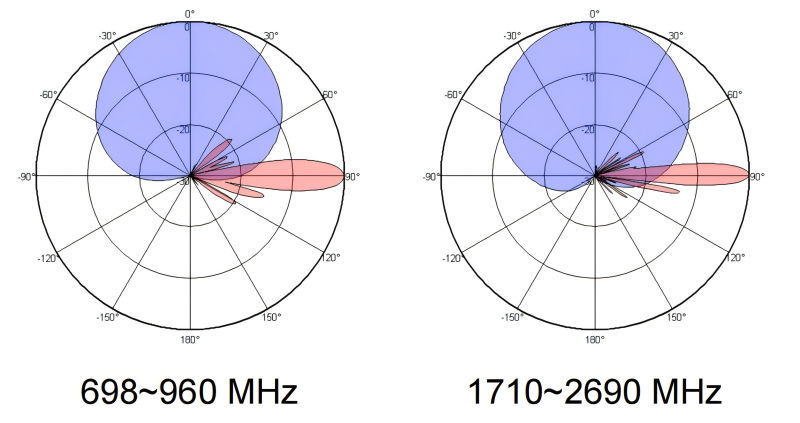

Horizontal 3dB beamwidth (°)

70±6

68±6

67±5

66±7

Vertical 3dB beamwidth (°)

15.6±1.0

14.2±1.0

13.4±0.8

12.6±0.9

Front-to-back ratio (dB)

Total power, ±30°

>22

>22

>24

>24

Cross-polar ratio (dB)

(at Boresight)

>22

>23

>24

>20

Electrical downtilt (°)

2~12

Sidelobe suppression (dB) (First sidelobe above main beam)

>15

>15

>15

>15

VSWR

<1.5

Isolation: intra-system (dB)

25

Isolation: inter-system (dB)

R1//R2  25

R1, R2//(Y1, Y2)  28

Intermodulation IM3 (2×43dBm carrier)

≤-153dBc

Impedance (Ω)

50

Max. Power per Input(W)@50℃

500

Lightning Protection

DC Ground

Frequency Range(MHz)

Y1/Y2: 1710-2690



1710-1920

1920-2200

2200-2490

2490-2690

Polarization

±45°

Gain at mid tilt (dBi)

17.3

17.8

18.0

18.5

Gain over all tilts (dBi)

17.2±0.4

17.7±0.5

17.8±0.5

18.4±0.5

Horizontal 3dB beamwidth (°)

64±4

67±5

67±3

66±8

Vertical 3dB beamwidth (°)

6.8±0.5

5.8±0.4

5.3±0.3

4.8±0.4

Front-to-back ratio (dB)

Total power, ±30°

>28

>28

>29

>29

Cross-polar ratio (dB)

(at Boresight)

>18

>18

>17

>17

Electrical downtilt (°)

2~12

Sidelobe suppression (dB) (First sidelobe above main beam)

>18

>18

>18

>16

VSWR

<1.5

Isolation: intra-system (dB)

25

Isolation: inter-system (dB)

  28

Intermodulation IM3 (2×43dBm carrier)

≤-153dBc

Impedance (Ω)

50

Max. Power per Input(W)@50℃

200

Lightning Protection

DC Ground


Mechanical Specifications

Connector

8×4.3-10-Female

Connector Position

Bottom

Height×width×depth (mm)

1450×446×165

Packing Size (mm)

1740×510×215

Antenna weight (kg)

24

Installation Kit Weight (kg)

5.4

Packing Weight (kg)

35.3

Wind load (N, at 150km/h) Frontal/Lateral/Rear

829/179/926

Max. Wind Velocity (km/h)

216

Radome Material

Fiberglass

Radome Color

Gray

Mechanical tilt (°)

0~15

Operating Temperature (°C)

-50~65

Mounting Hardware (mm)

Ф50~Ф115


Integrated RET Properties

RET model

MRCU-MQ10P2

RET type

Integrated (Replaceable)

RET protocol

AISG 2.0/3GPP

Power supply(V)

10-30 DC

Power consumption(W)

≤0.6 (Idle,12V),≤6 (In motion,12V)

Adjustment time (Full Range)

4Mins

Adjustment cycles

50,000

Temperature range (℃)

-40~65

Lightning protection

3KA(8/20μs) @ Pin5 & Pin3;

5KA(8/20μs) @ Pin1 / Pin6 & Pin7

Connectors

2×8 Pin circle connector according to IEC 60130-9 and AISG.

Daisy chain in:Male,Daisy chain out:Female

Pin1:12V;Pin3:RS485B;Pin5:RS485A;Pin6:10-30V;

Pin7:GND;Pin2&Pin4&Pin8:N/C




Application
