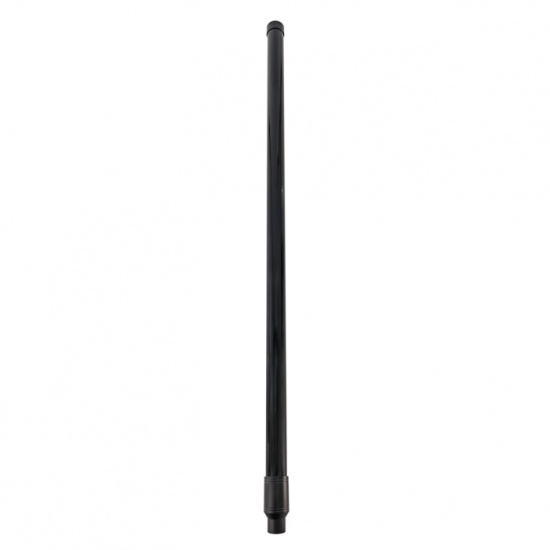

5-6000MHz 5dBi Wideband Fiberglass Antenna

Featuring a 100 W maximum power rating, 50-ohm impedance, N-Male connector, and a rated wind velocity of 60 m/s, the MFA-0060AH3 is designed for demanding wireless communication and infrastructure applications.

Item NO.:
MFA-0060AH3
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black

Inquiry now

Products Details

Product Name

5-6000MHz 5dBi Wideband Omni Fiberglass Antenna

Product Features

◆ Wide Frequency Band

◆ Low VSWR

◆ High Gain

◆ Widely used for DAS

Technical &Mechanical Specifications

Model	MFA-0060AH3
Frequency Range -MHz	5-6000
Gain -dBi	5
Horizontal Beamwidth -°	360
Vertical Beamwidth -°	55
VSWR	≤2.0
Polarization	Vertical
Normal Impedance -Ω	50
Max power -W	100
Dimensions -mm	Φ32×1000
Weight -kg	0.6
Rated Wind Velocity -m/s	60
Connector	N male
