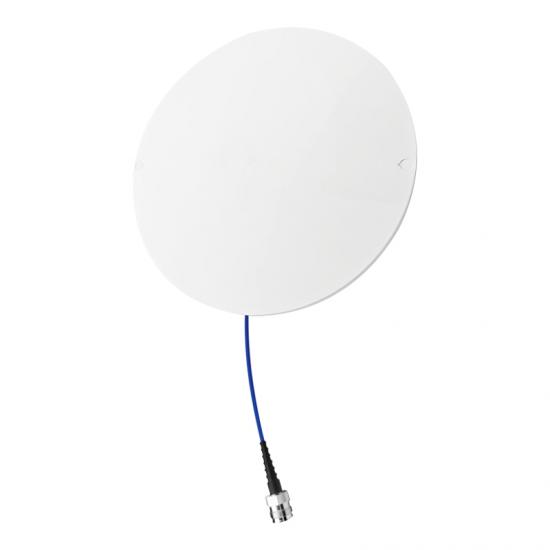

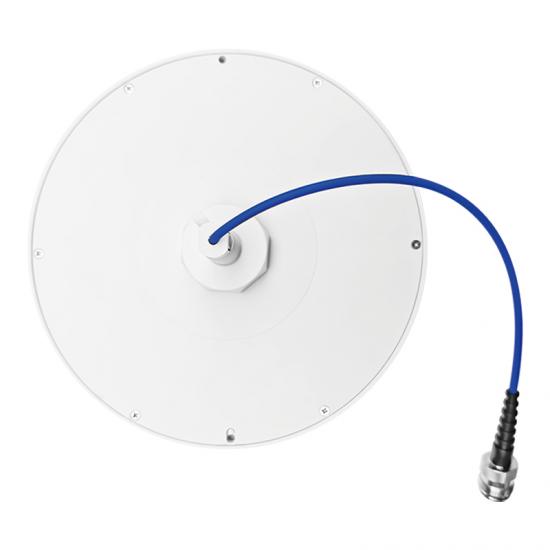

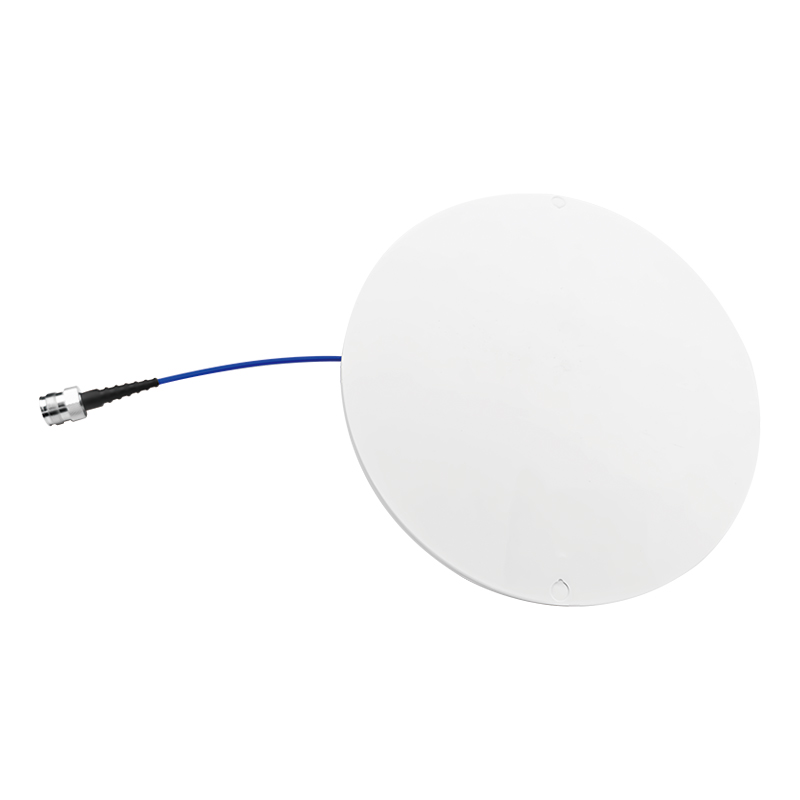

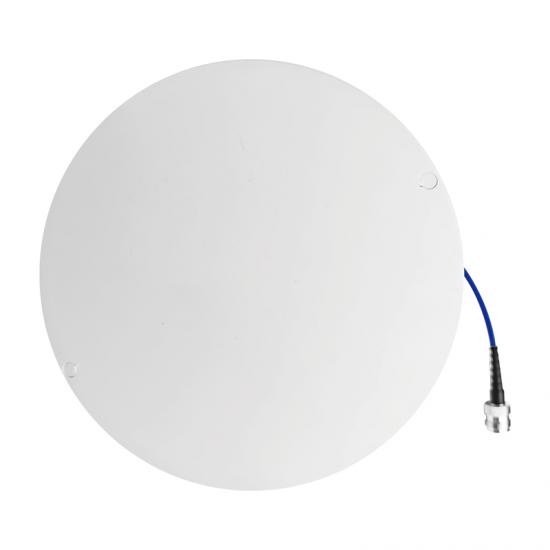

617-6000MHz Low PIM Indoor Thin Omni Antenna Ceiling Mounted

High-performance Ceiling Mounted Omni Antenna 617-6000MHz, with gain 6dBi,one port

Item NO.:
MCA-660-4F-6dBi
Lead Time:
2-3 week
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
5

Inquiry now

Products Details

Product Name

Indoor Ceiling Mounted Omni Antenna 617-6000MHz Low PIM Thin Antenna

Product Features

◆ Wide Frequency Band Omni antenna

◆ Low VSWR

◆ High Gain

Technical &Mechanical Specifications

Electrical Specifications
Frequency Range, MHz	617-806	806-960	1350-1550	1690-2700	3300-3800		4900-6000
Gain, dBi	1.5±0.5	2.2±0.5	3.5±0.5	4.5±1.0	6.0±1.0		6.0±1.0
VSWR	≤1.8
Polarization	Horizontal
PIM, 3rd Order, 2x20W	≤-153 dBc
Horizontal Beam width	360°
Vertical Beam width	70-230		55-150			45-105
Input Impedance	50 Ω
Max. Input Power	50 W
Lightning Protection	DC Ground
Mechanical Specifications

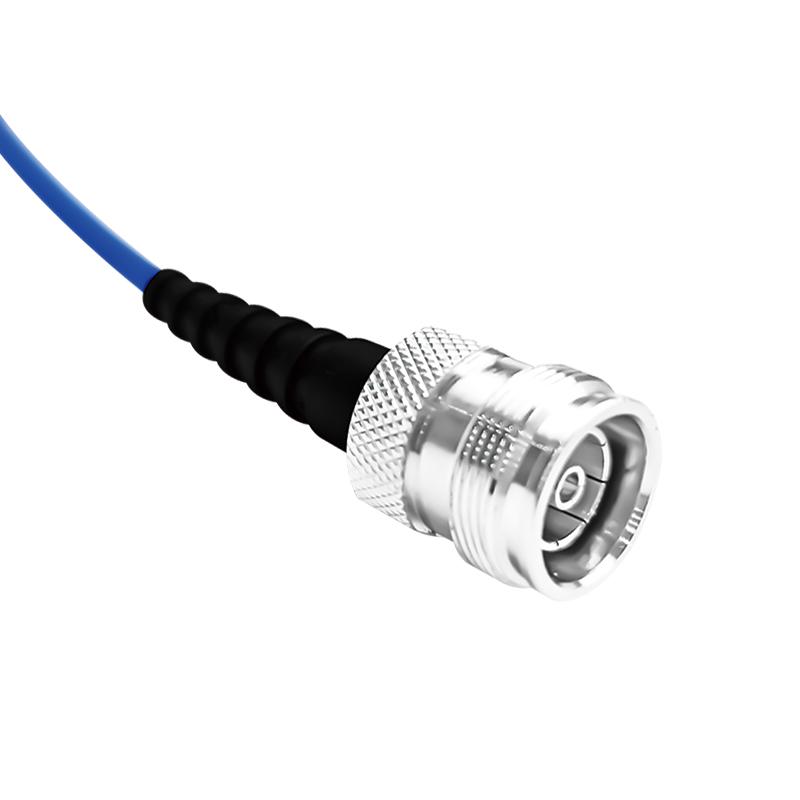

Connector	4.3-10 Female
Dimensions	Ø220*18 mm
Weight
Reflector Material	Aluminum
Radome Material	ABS (UV Stabilized)
Operating Temperature	-55°C to +60 °C

Application

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 617-6000MHz Low PIM Indoor Thin Omni Antenna Ceiling Mounted
Im interested in your "617-6000MHz Low PIM Indoor Thin Omni Antenna Ceiling Mounted", please inform me more detailed product information and price. Thankyou!
