810-960MHz Cavity Band Rejection Filter with 7/16 female connector

Cavity Band Rejection Filter which covers from frequency 810-960MHz

Item NO.:
MNF-CB-890-7-16F
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
Black or customized

Inquiry now

Products Details

Product Name

810-960MHz Cavity Band Rejection Filter

Product Feature

◆Compact, Low Weightbandpass cavity filter

◆High Reliability

◆Simple Installation

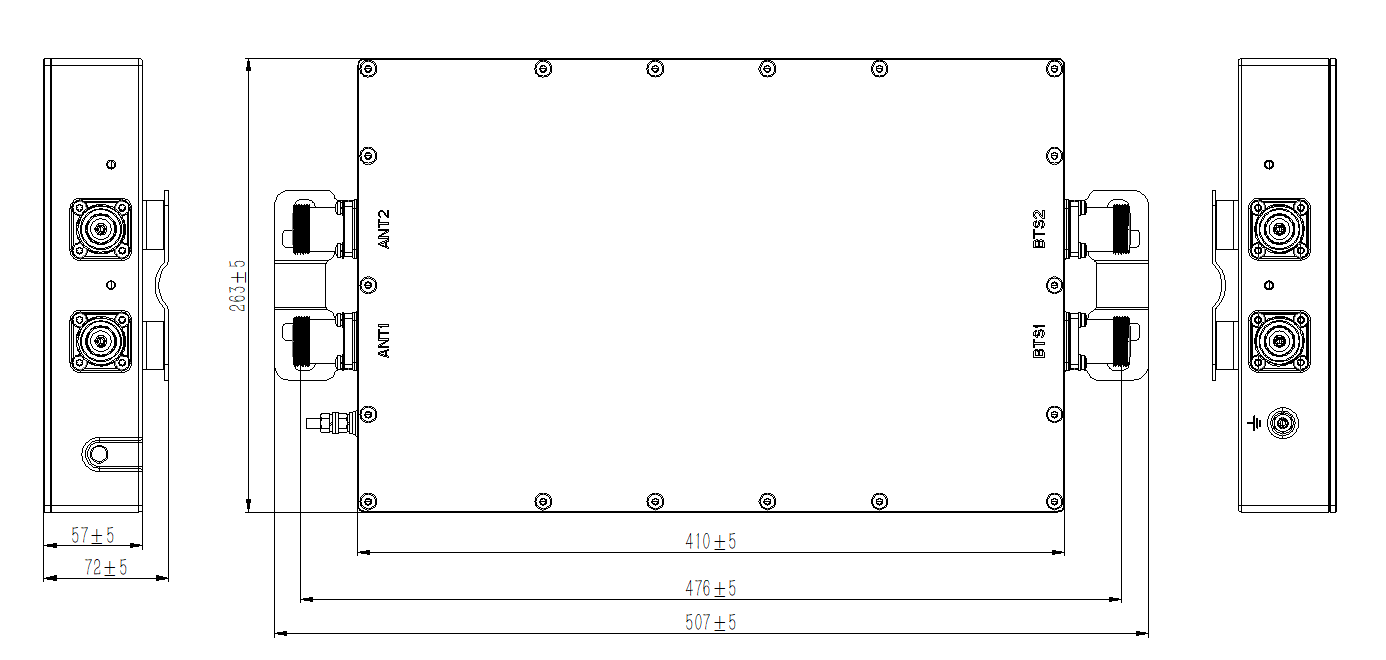

Technical &Mechanical Specifications

Specifications
Part number	BN 5706KE
Version	Double Unit
Pass band	810-879MHz
Stop band	882-960MHz
Insertion loss	@819-824MHz(Typ. 0.30 dB)≤0.5dB @824-834MHz(Typ. 0.30 dB)≤2.3dB @864-879MHz(Typ. 0.62 dB)
Stop band allenuation	≥72 dB
DC/AISG Pass	Max,1A per input max 60V DC (AISG Standard,2.0,§ 6.4）
Power RatingPeak Envelope Power	200 W（CW）max,3kw
PassiveIntermodulation (3rd order@2×20W)	-155dBc
Impendence	50ohm
Operating temperature range	-40°C to +55°C
Relative humidity.max	95% (non-condensing)
Connectors type	7-16 female
Class. of environmental conditions	ETSI EN 300019-1-1 Class 1.2 ETSI EN 300019-1-2 Class 2.3 ETSI EN 300019-1-4 Class 4.1E
Applications	IP65

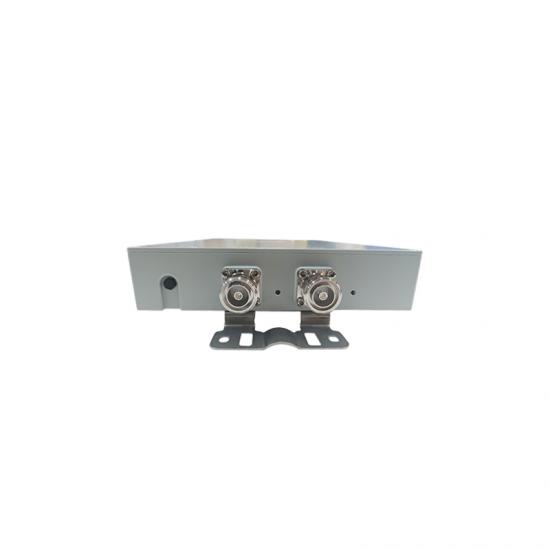

Product Pictures

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 810-960MHz Cavity Band Rejection Filter with 7/16 female connector
Im interested in your "810-960MHz Cavity Band Rejection Filter with 7/16 female connector", please inform me more detailed product information and price. Thankyou!
