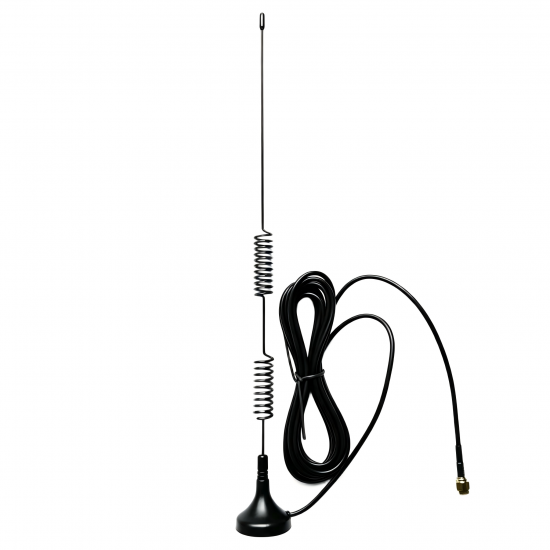

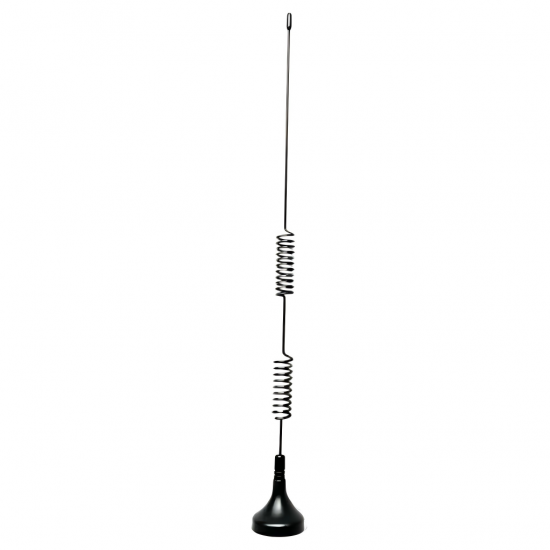

4G LTE Magnetic Mount Antenna N Female

This 4G LTE Magnetic Mount Antenna is designed for reliable cellular signal reception, covering the full 800-960MHz / 1710-2500MHz frequency bands. It is ideal for vehicle-mounted systems, routers, modems, and signal boosters that require stable 4G connectivity.

Item NO.:
MN-0825A
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
/
MOQ:
5-10

Inquiry now

Products Details

Product Name

800-960/1710-2500MHz Magnetic Mount Antenna High Gain Car Antenna 5.5/7dBi with N Female Connector

Product Features

◆ Full-band 4G coverage: 800-960MHz / 1710-2500MHz

◆ 5.5/7dBi high gain with low VSWR ≤1.8

◆ Quick magnetic mount for vehicle and metal surface use

◆ N Female connector, 100W power handling, durable design

Technical &Mechanical Specifications

Frequency Range 800-960MHz / 1710-2500MHz

Gain 5.5dBi / 7dBi

VSWR ≤1.8

Impedance 50Ω

Polarization Vertical

Max Power 100W

Connector N Female (customizable)

Rated Wind Velocity-m/s 60

Length-mm 36

Weight-kg 0.25

Mounting Type Magnetic base

Application Vehicle communication, routers, modems, signal boosters

Application

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 4G LTE Magnetic Mount Antenna N Female
Im interested in your "4G LTE Magnetic Mount Antenna N Female", please inform me more detailed product information and price. Thankyou!
