Product Description

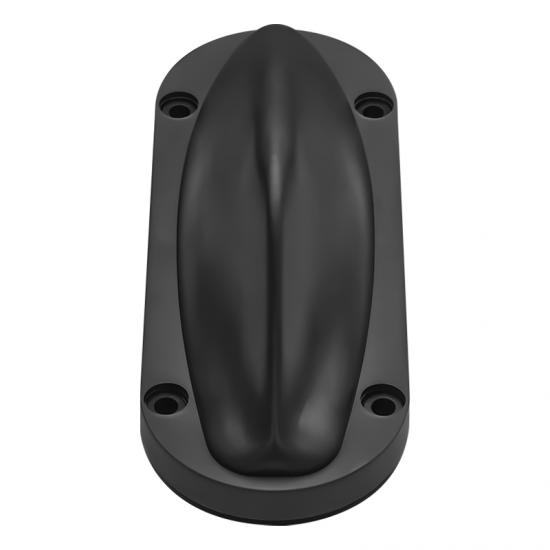

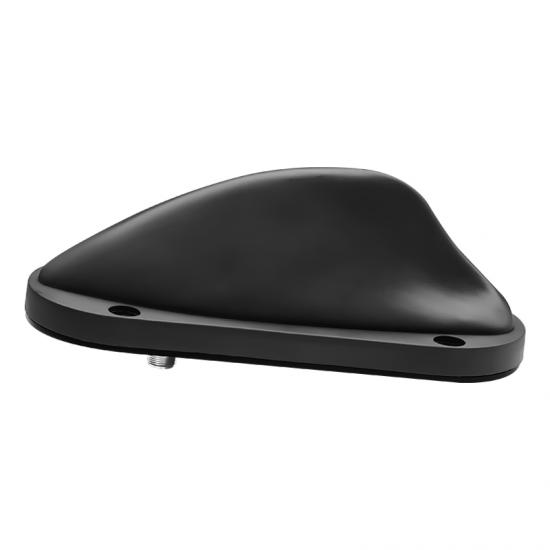

The Maniron 694-6425MHz Outdoor Omnidirectional Antenna is a high-performance vertical polarized antenna designed for stable outdoor cellular signal coverage. Featuring an ultra-wide frequency band and variable high gain of 5/6/8/8.5dBi, it is engineered to deliver consistent and efficient signal transmission across 3G, 4G LTE and 5G mobile networks. Its omnidirectional radiation design provides 360-degree uniform signal coverage for DAS, small cell base station and modern wireless telecommunication systems.
Application Scenarios
- Distributed Antenna Systems (DAS): Ideal for uniform wide-band cellular signal coverage in indoor and outdoor wireless network projects.
- Outdoor Wireless Coverage: Vertical omnidirectional radiation with stable 5/6/8/8.5dBi gain for full surrounding 360° signal transmission.
- LTE & 5G Infrastructure:Covers the 694-6425MHz range, supporting mainstream global communication frequency bands.
Technical & Mechanical Specifications
|
Paramater |
Specifications |
||||||
|
Frequency range-MHz |
694-790 |
790-960 |
1350-1710 |
1710-2700 |
2700-3300 |
3300-4900 |
4900-6425 |
|
Gain-dBi |
5 |
5 |
6 |
6 |
8.5 |
8 |
8 |
|
VSWR |
2.0 |
1.5 |
2.0 |
1.5 |
1.5 |
1.7 |
1.5 |
|
Polarization |
Vertical |
||||||
|
Nominal resistance-Ω |
50 |
||||||
|
Degree of protection |
IP68 |
||||||
|
Power Capacity-W |
350 |
||||||
|
Dimension-mm |
90*100*260(Height*Width*Depth) |
||||||
|
Weight-KG |
≤1.5 |
||||||
|
Directional |
Omnidirectional |
||||||
|
Color |
Grey |
||||||
|

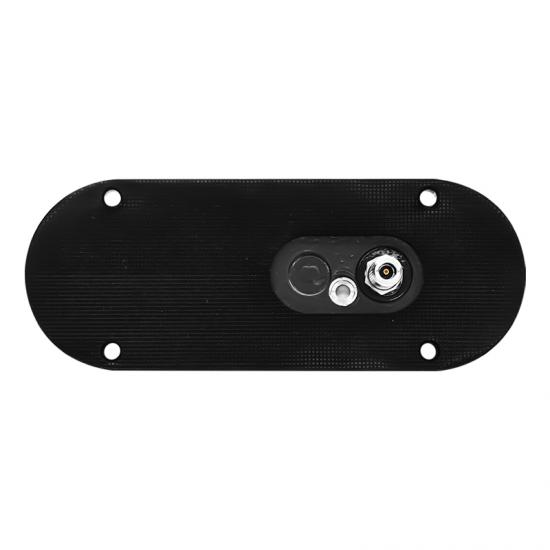

Connector |
N-Female |
||||||
|
Altitude |
≤4000m |
||||||
|
Temperature-℃ |
-40 to +85 |
||||||
Frequently Asked Questions
- Q1: What frequency bands does this antenna support?
- A: It supports a wide frequency range from 698-3800MHz, including 700MHz, 800MHz, 900MHz, 1800MHz, 2100MHz, 2600MHz, and 3500MHz bands.
- Q2: What is the benefit of the MIMO design?
- A: The MIMO design with ±45° polarization helps reduce interference and significantly improves data transmission speeds in 4G and 5G networks.
- Q3: Is this antenna suitable for extreme weather conditions?
- A: Yes, it is built for outdoor use with an operating temperature range of -40°C to +70°C and features integrated DC Ground lightning protection.
- Q4: How do I install this antenna?
- A: The antenna is designed for pole mounting and is compatible with mounting poles ranging from Ø38mm to Ø60mm in diameter.
