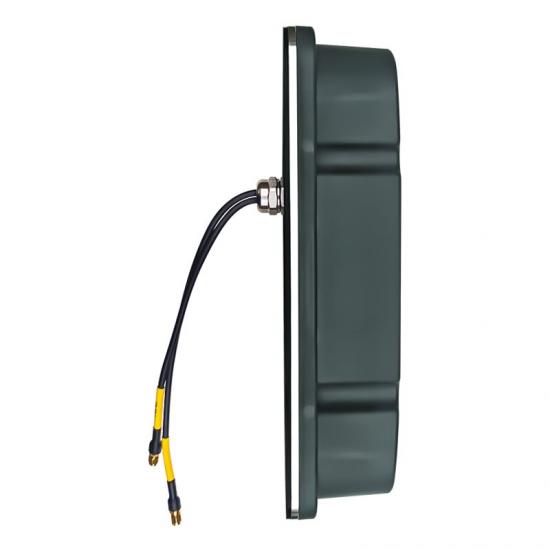

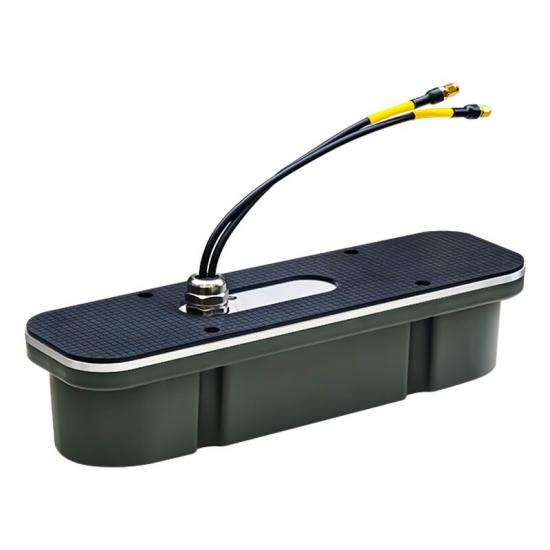

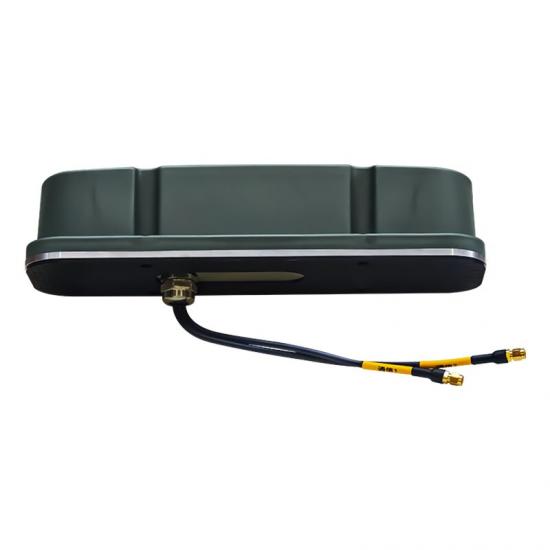

Mobile Antenna MRA-0727-V-MIMO-SMA

This omnidirectional vertically polarized antenna covers multiple mainstream cellular frequency bands, with tiered antenna gain matching different frequency segments.

Item NO.:
MRA-0727-V-MIMO-SMA
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen

Inquiry now

Products Details

Product Name:

Mobile Antenna MRA-0727-V-MIMO-SMA

Product Feature:

◆ 2G/3G/4G/LTE Coverage

◆ graded gain

◆ vertical polarization

Electrical & Mechanical Specifications:

Model	MRA-0727-V-MIMO-SMA
Frequency range-MHz	698-790	790-960	1710-2170	2400-2690
Gain-dBi	6	6	7.5	7.5
VSWR	1.9	1.9	1.9	2.0
Polarization	Vertical
Nominal resistance-Ω	50
Degree of protection	IP68
Power Capacity-W	80
Dimension-mm	352.5102.581.6(HeightWidthDepth)
Weight-KG	≤2
Directional	Omnidirectional
Color	Grey
Connector	SMA
Altitude	≤4000m
Temperature-℃	-40 to +85
Fire Resistance rating	EN 45545-2
Max. Wind Velocity	500 km/h
