panel directional antenna 7dBi 698-2700MHz

698-2700MHz Panel directional Antenna with 7dBi N-F Connector

Panel Directional Antenna is Widely used in IBS projects

Item NO.:
MNA-727-PP-NF
Product Orgin:
China
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

698-2700MHz High Gain 7dBi Panel Antenna

Product Features

◆with Wide Frequency Band 698-2700MHz

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR

◆ High Gain with 7dBi

◆ Widely used for In-building Solutions

Panel Antenna Operates From 698 MHz to 2700 MHz With a Nominal 7 dBi Gain N Female Input Connector

Antenna from Maniron is featured in our extensive in-stock radio frequency omni directional antenna selection.It has a frequency range of and 7 dBi gain

Technical &Mechanical Specifications

Model No.	MNA-7987V9i65A
Freq(MHz)	698-960/1710-2700MHz
Polarization	Vertical
Gain(dBi)	≥7
Vertical beam width	58
Horizontal Beamwidth	70
Front-to-back ratio(dB)	≥18
Impedance- Ω	50
Maximum power(W)	100
VSWR	≤1.5

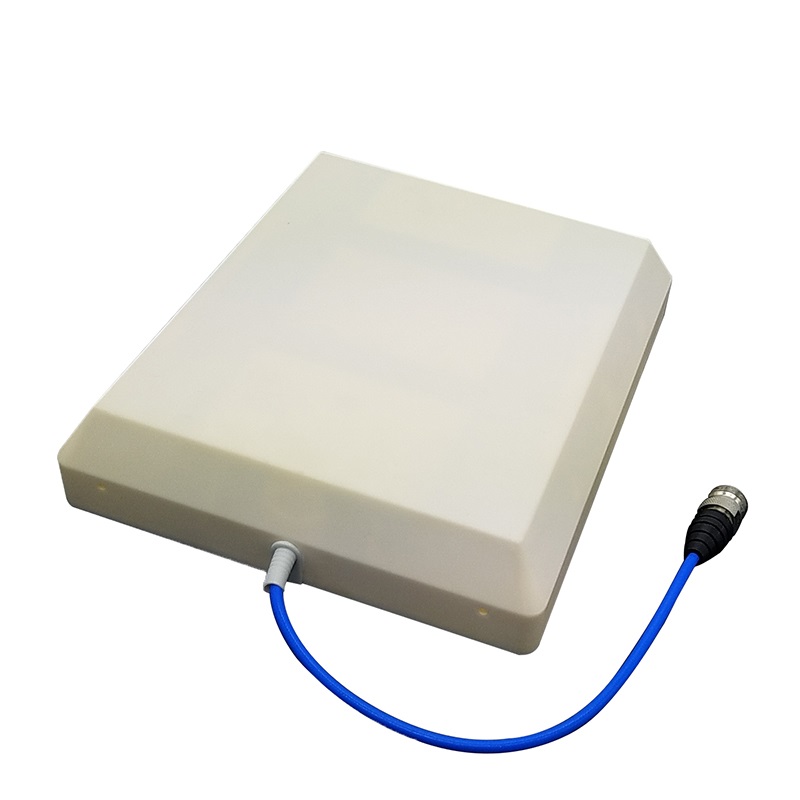

Products Pictures

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 698-2700MHz Panel directional Antenna with 7dBi N-F Connector
Im interested in your "698-2700MHz Panel directional Antenna with 7dBi N-F Connector", please inform me more detailed product information and price. Thankyou!
