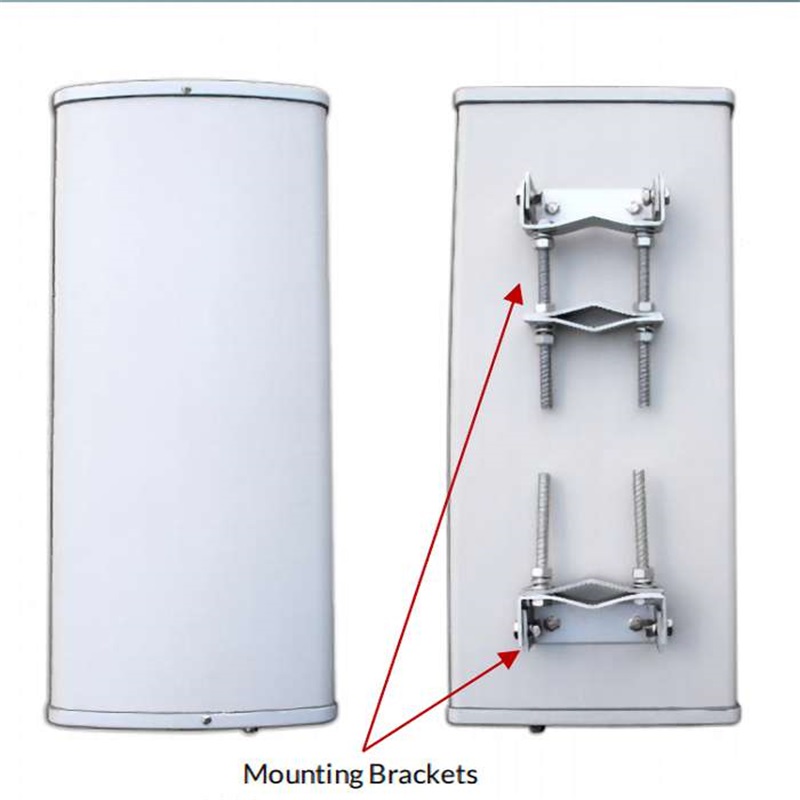

GSM Multi-Band Directional Sector Antenna

GSM Multi-Band Directional Sector Antenna is high Gain used in DAS
  • Item NO.:

    SA-727-NF12-650
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Products Details

Product Name

GSM Multi-Band Directional Sector Antenna is wide frequency band,12dBi 900MHz/1800MHz Sector Antennas is high Gain and used in DAS


Technical &Mechanical Specifications

                                      Model No.

                                       MLPA-727-SS-NF

Freq(GHz)

698~960/1710~2700MHz

Gain-dBi

11/12

Polarization

Linear, Vertical

BW/Azimuth

65 °

 BW/Elevation

30 °

Front to Back Ratio

>27dB

Nominal Impedance-Ω

50

PIM

140dBc

Power Handling

200W

Dimension-mm

650 x 280 x 135 (mm) / 25.59" x 11.02" x 5.31"

Weight-kg

8kg / 17.6lb

Connector

N-Female

Environmental

IP65


Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
