Wall Mount Panel Antennas High Gain Antenna for Communication

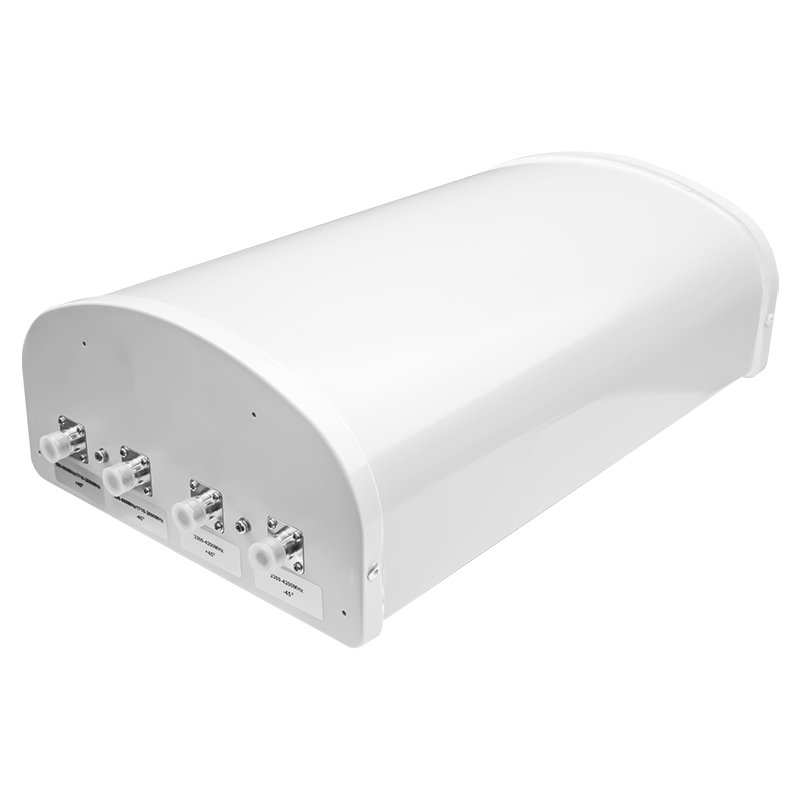

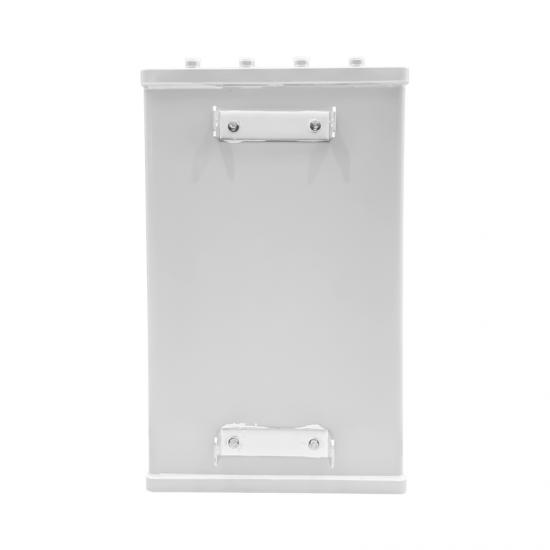

Maniron 698-4200MHz Outdoor Directional Panel Antenna with High Gain

698-4200MHz 10.5dBi Outdoor Outdoor Directional Panel Antenna is used in the wide band. With wide frequency, high gain, it can be widely used for DAS.

Item NO.:
MPA-6942P2X65D8-BG
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

Maniron 698-4200MHz 7.5/10.5dBi Outdoor Directional Panel Antenna

Product Features

◆ Wide Frequency Band 698-4200MHz

◆ Low VSWR

◆ High Gain

◆ Widely used for DAS

Technical &Mechanical Specifications

Model	MPA-6942P2X65D8-BG
Frequency Range(MHz)	698-960/1710-2690/3300-4200
polarization	±45°
Electric downtilt angle (°)	0
Gain(dBi)	7.5±1/8.5±1/10.5±1
Horizontal Beamwidth-°	80/70/55
Vertical Beamwidth-°	80/70/30
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	V
Max Input Protection(W)	50

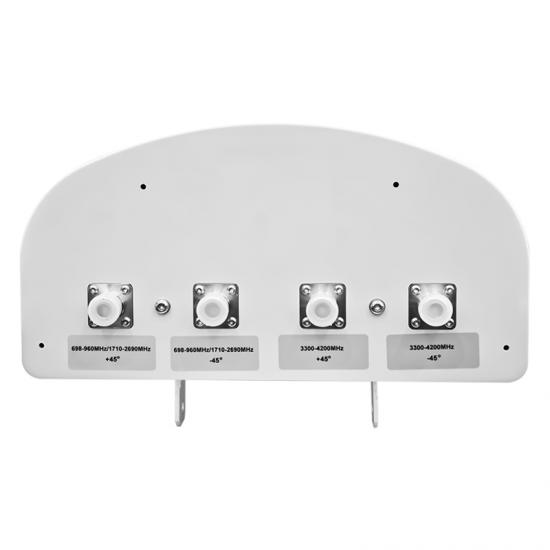

Connector	N Female or Customization
PIM	≤-150dBc@2*43dBm
Antenna Dimension(mm)	450278138
Degree of protection	IP55
Operating Temperature(°)	-40～+70

Application
