76-108MHz Car Sucker FM Antenna BNC Connector

This Car Sucker FM Antenna is designed for reliable FM signal reception in vehicles. With its strong suction base and stainless steel whip, it works stably at speeds up to 120km/h, making it ideal for car radios, broadcast receivers, and mobile communication systems. The omni-directional design ensures consistent signal quality across different environments.

Item NO.:
MNA-CA200
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
/
MOQ:
5-10

Inquiry now

Products Details

Product Name

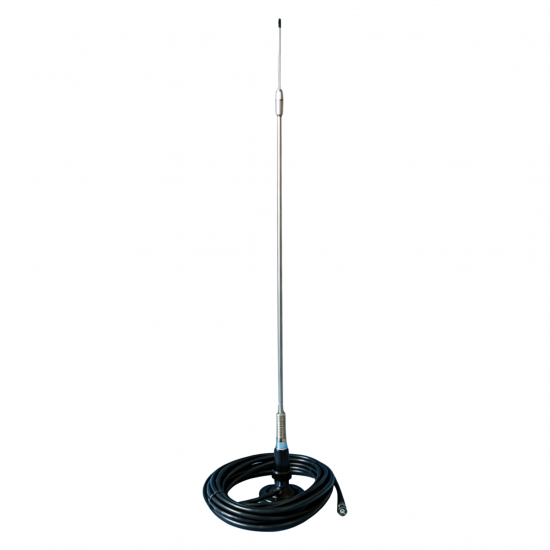

VHF Stainless Steel Flexible Car Sucker FM Antenna 76-108MHz 150W 3dBi Omni Directional Antenna

Product Features

◆ Covers full FM band: 76-108MHz with 3dBi gain

◆ 110mm suction base, stable up to 120km/h

◆ Quick magnetic mount for vehicle and metal surface use

◆ BNC-female connector, 150W max power handling

Technical &Mechanical Specifications

Frequency Range 76~108 MHz

Band Width 6 MHz

VSWR <1.5

Impedance 50Ω

Gain 3 dBi

Polarization Vertical

Radiation Omni Directional

Lighting Protection Direct Ground

Maximum Power Input 150 W

Height 724±5 mm (adjustable by frequency)

Antenna Connector BNC-female

Radiating Element Material Stainless Steel

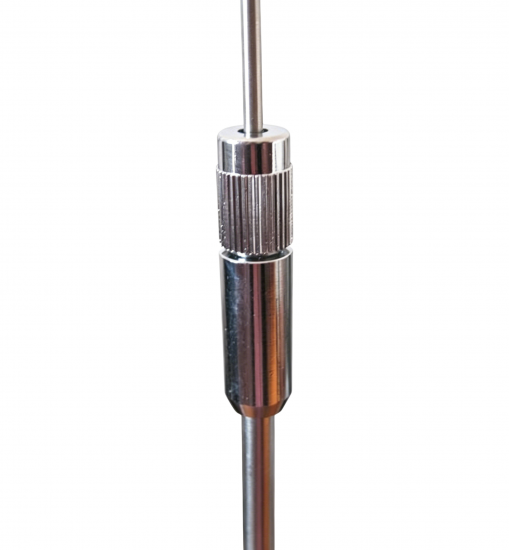

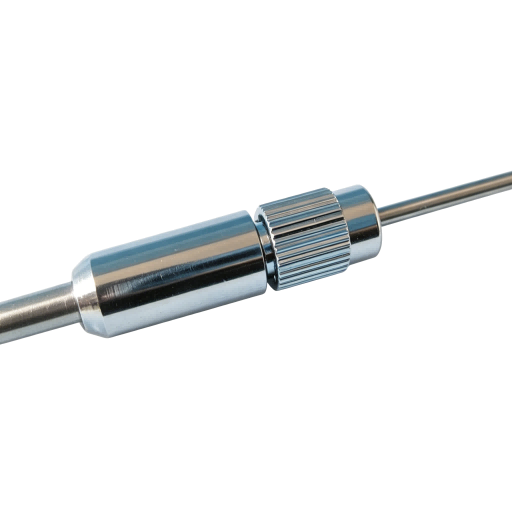

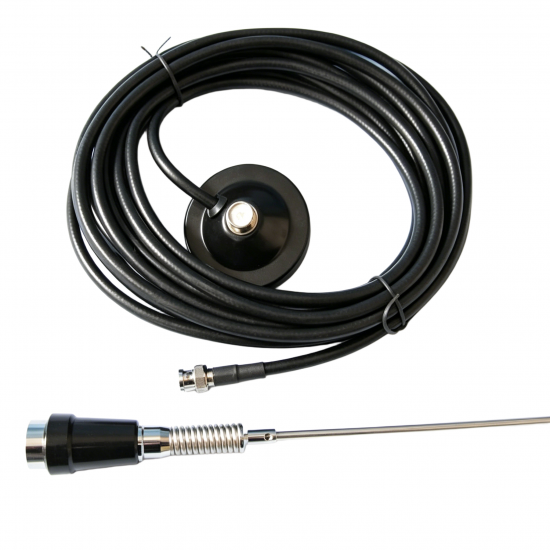

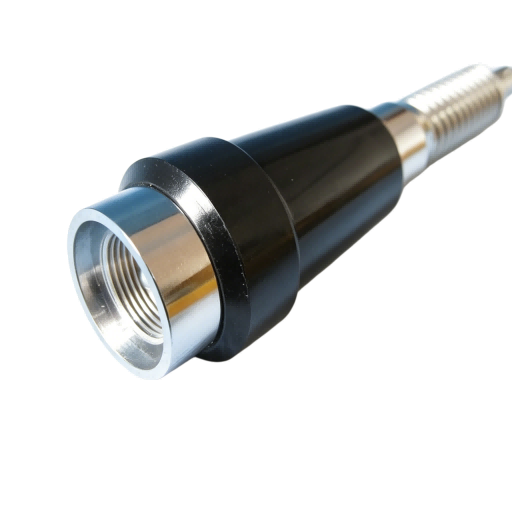

Produt Pictures
