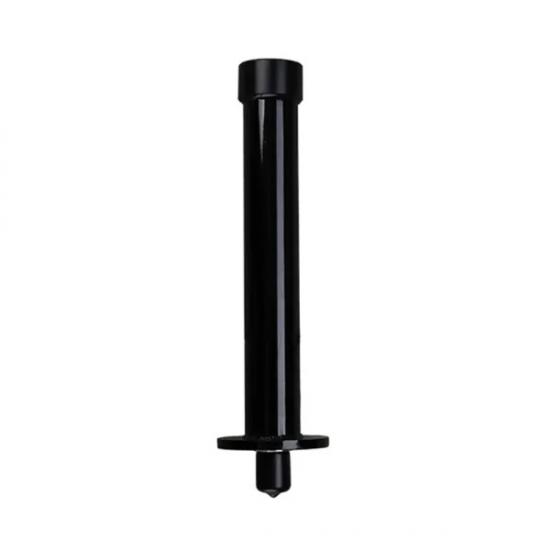

Maniron 617-6000MHz 3dBi Fiberglass Omnidirectional Wireless Antenna

It's Omni-directional fibreglass antenna,coveres frequency from 617-6000MHz.It's easy for install.

Item NO.:
MFOA-0660-4F
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

Maniron 617-6000MHz 3dBi Fiberglass Omnidirectional Wireless Antenna

Product Features

◆Compact, Low Weight

◆Contain Wide Band 617-6000MHz

◆High Reliability

◆Long Warranty Time

◆Simple Installation

Technical & Mechanical Specifications

Electrical Performance

Freguency range (MHz)

698-6000

Polarisation

V

Gain(dBi)

2.0-5.5

Beam width(°)

Horizonal:360

Vertical:85°/80°/54°/28°/20°

Impedance(Ω)

50

VSWR

≤2.0

Power(W)

50

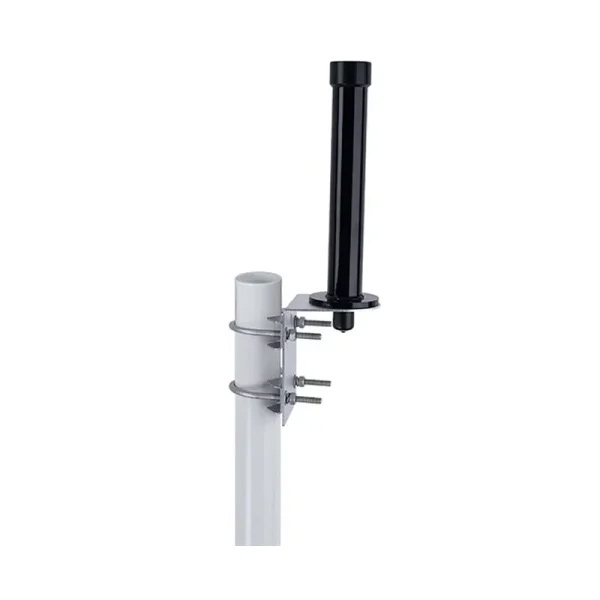

Product Image (For Reference Only)
