Product Description

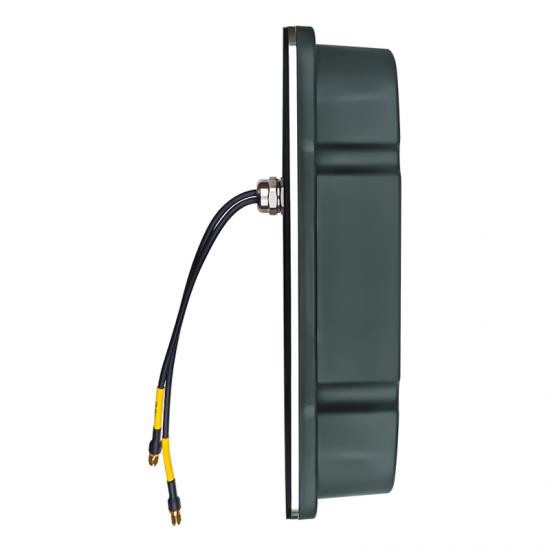

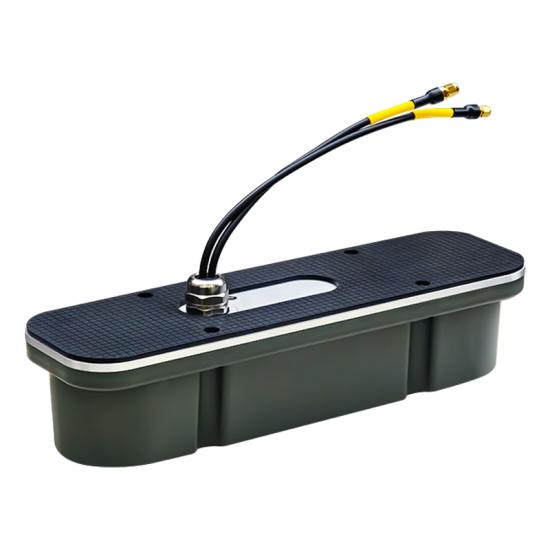

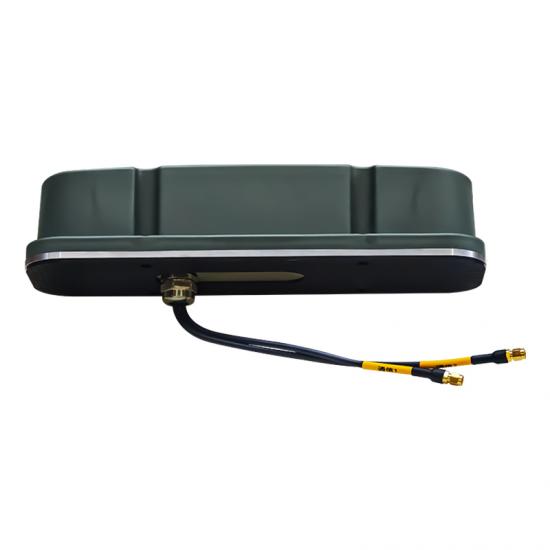

The Maniron 698-2690MHz Outdoor MIMO Omnidirectional Antenna is a high-performance vertical polarized antenna designed for stable outdoor cellular signal coverage. Featuring an ultra-wide frequency band and adjustable high gain of 6/7.5dBi, it is engineered to deliver consistent and efficient signal transmission across 4G LTE and 5G mobile networks. Its MIMO (Multiple Input Multiple Output) design ensures excellent data throughput and reliable signal performance for DAS, base station and modern wireless telecommunication systems.
Application Scenarios
- Distributed Antenna Systems (DAS): Ideal for uniform wide-band cellular signal coverage in indoor and outdoor wireless network projects.
- Outdoor Wireless Coverage: Vertical omnidirectional radiation with stable 6/7.5dBi & 7.5dBi gain for full surrounding signal transmission.
- LTE & 5G Infrastructure: Covers the 698-3800MHz range, supporting mainstream global frequency bands.Covers 698–2690MHz multi-band spectrum, compatible with mainstream 4G/5G global communication frequency bands.
Technical & Mechanical Specifications
| Parameter |
Specifications |
|||
|
Frequency range-MHz |
698-790 |
790-960 |
1710-2170 |
2400-2690 |
|
Gain-dBi |
6 |
6 |
7.5 |
7.5 |
|
VSWR |
1.9 |
1.9 |
1.9 |
2.0 |
|
Polarization |
Vertical |
|||
|
Nominal resistance-Ω |
50 |
|||
|
Degree of protection |
IP68 |
|||
|
Power Capacity-W |
80 |
|||
|
Dimension-mm |
352.5*102.5*81.6(Height*Width*Depth) |
|||
|
Weight-KG |
≤2 |
|||
|
Directional |
Omnidirectional |
|||
|
Color |
Grey |
|||
|

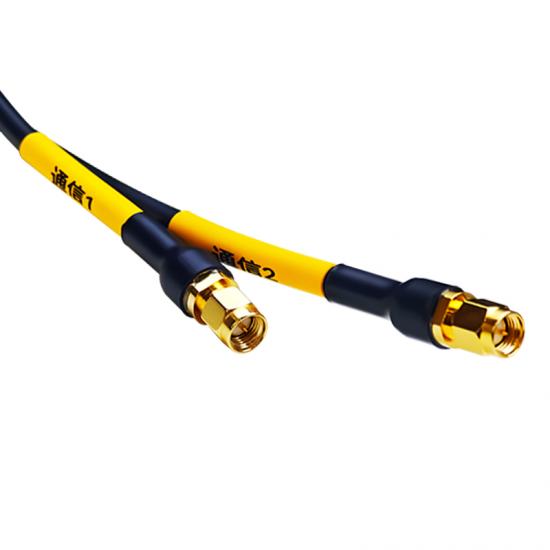

Connector |
SMA-Type |
|||
|
Altitude |
≤4000m |
|||
|
Temperature-℃ |
-40 to +85 |
|||
|
Fire Resistance rating |
EN 45545-2 |
|||
|
Max. Wind Velocity |
500 km/h |
|||
Frequently Asked Questions
- Q1: What frequency bands does this antenna support?
- A: It supports a wide frequency range from 698-3800MHz, including 700MHz, 800MHz, 900MHz, 1800MHz, 2100MHz, 2600MHz, and 3500MHz bands.
- Q2: What is the benefit of the MIMO design?
- A: The MIMO design with ±45° polarization helps reduce interference and significantly improves data transmission speeds in 4G and 5G networks.
- Q3: Is this antenna suitable for extreme weather conditions?
- A: Yes, it is built for outdoor use with an operating temperature range of -40°C to +70°C and features integrated DC Ground lightning protection.
- Q4: How do I install this antenna?
- A: The antenna is designed for pole mounting and is compatible with mounting poles ranging from Ø38mm to Ø60mm in diameter.
DAS Layout
