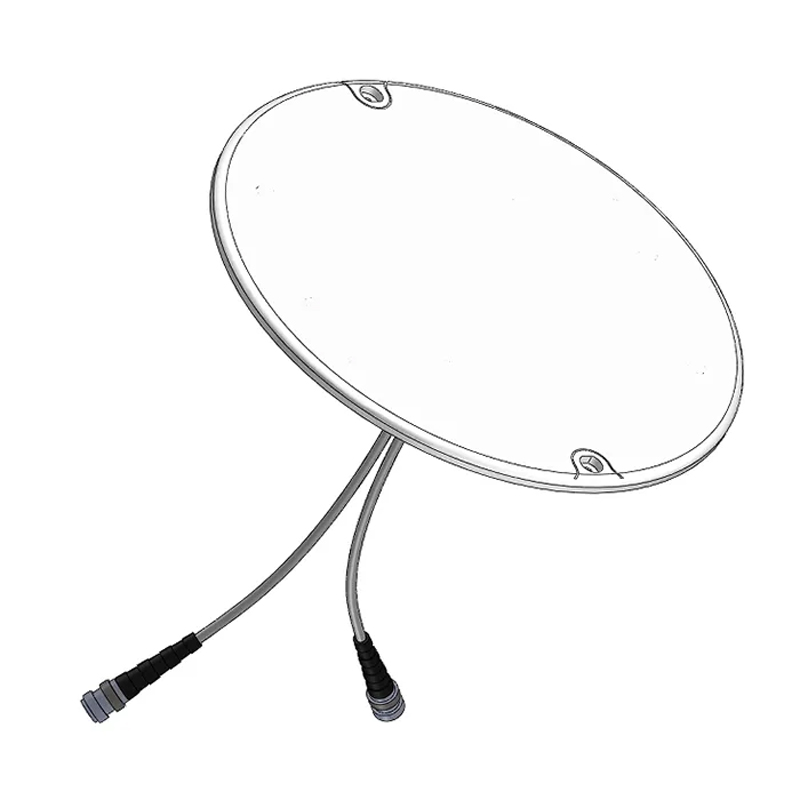

Maniron 698-2700MHz MIMO Indoor Slim Omni Ceiling Mount Antennas

Slim Omni Ceiling Mount Antennas is used in the wide wave band. With wide frequency, high gain and low PIM, it can be widely used for DAS.

Item NO.:
MLA-698-2700-4A-LP
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

Maniron 698-2700MHz MIMO Indoor Slim Omni Ceiling Mount Antennas

Product Features

◆ Wide Frequency Band 698-2700MHz

◆ Low VSWR

◆ High Gain

◆ Widely used for DAS

Technical &Mechanical Specifications

Frequency Range(MHz)	698-960	1710-2700
Gain(dBi)	4.0	6.0
VSWR	≤1.8	≤1.8
Polarization	Linear Horizontal for Each Radiator
PIM, 3rd Order, 2x20W(dBc)	≤-140 \| -150 \| -153
Isolation(dB)	≥15 >20
Horizontal Beam width	360°	360°
Vertical Beam width	68°	29°
Input Impedance	50 Ω
Max. Input Power	50 W
Lightning Protection	DC Ground
Mechanical Specifications
Connector	2xN-Female \| 4.3-10 Female
Dimensions(mm)	Ø285x8.0
Weight(kg)	0.55
Radome Material	ABS
Color	White
Operating Temperature	-40°C to +65 °C
Polarization	Linear Horizontal for Each Radiator
Mounting	Ceiling Mount

Application
