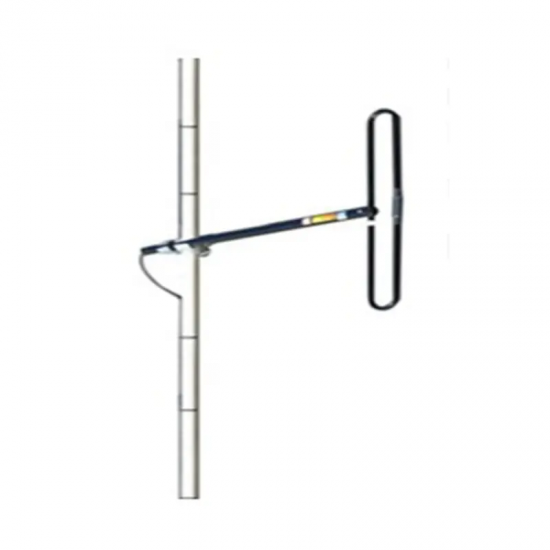

150MHz VHF Dipole Array Antenna for Tetra Communications

The 150MHz VHF Dipole Array Antenna is a high-gain, heavy-duty solution engineered for TETRA, LMR, and Public Safety base station applications. Featuring a ruggedized dipole array configuration, it provides exceptional signal reliability and vertical beam control for wide-area outdoor coverage in critical communication networks.

Item NO.:
MNA-150-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

150MHz Dipole Antennas

Technical & Mechanical Specifications

Frequency：	145～175
Bandwidth -MHz:	30
Gain -dBd (depend on pattern)：	1-2.5
Ver.Beamwidth -°:	80
Noise figure	＜1.5dB
VSWR：	≤1.5
Voltage Supply-V：	3 to 5.5
Impedance-Ω：	50 Ω
Max.Power-W：	300W
Polarization:	Vertical

Connector Type：	N Female or 7/16DIN
Net Weight：	3Kgs
Dimensions：	1400±10×1003mm
Lightning Protection：	DC Grounded
Wind rating -m/s	60

Application:
