3 Sector 6 Port 1710-3800MMHz Antenna

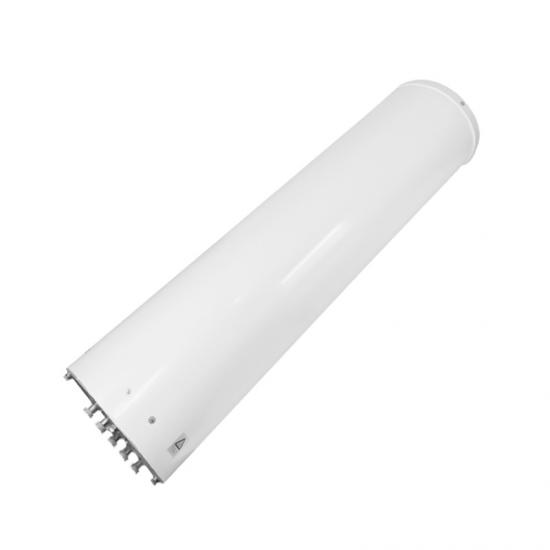

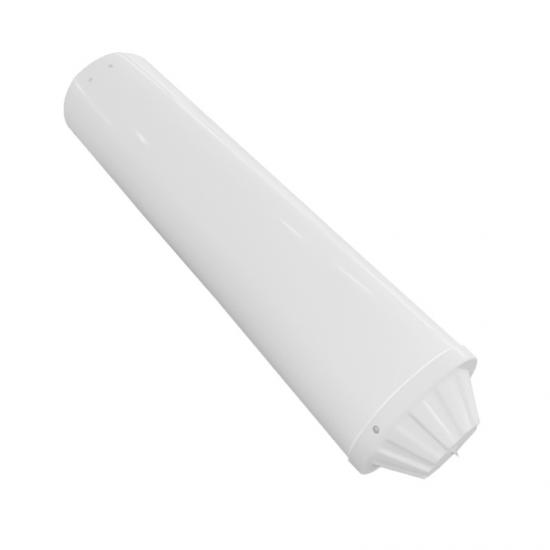

Hot Sale 1710-2690/3300-3800MHz 18dBi Outdoor 3 Sector 6 Port Cylindrical Antenna.

Item NO.:
MEA-1738-4F-17
Lead Time:
8-15 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
white
MOQ:
5

Inquiry now

Products Details

Product Name

1710-2690/3300-3800MHz 3 Sector 6 Port 18dBi Outdoor Beautifying Antennas

Product Features

◆ Wide Frequency Band 1710-3800MHz

◆ Outdoor Small Cell Antennas

◆ 4.3-10-Female connector

Technical &Mechanical Specifications

3 Sector 6 Port 1710 - 3800MHz Antenna
Electrical Data(BASTA 11.1)
Frequency(MHz)	1710 - 2690	3300 - 3800
Polarization	±45°
Gain (dBi)-Mid Tilt	18.0	18.0
Gain (dBi)-Over All Tilts	17.8±0.6	17.8±0.6
3dB Azimuth Beamwidth(°)	60±6	58±6
Cross - Polar Discrimination At Mechanical Boresight 0°	＞16	＞16
Front to Back Ratio, Total Power, 180°±30° (dB)	＞25	＞25
3dB Elevation Beamwidth(°)	7.5±0.4	5.0±0.4
fixed elect till (°)	0 - 8
1st Upper Sidelobe Suppression (dB)	≥15	≥15
VSWR	＜1.5
Intra - Cluster Isolation (dB)	＞25
Inter - Cluster Isolation (dB)	＞25
3rd PIM(2 x 43 dBm)(dBc)	＜ - 150
Impedance (Ω)	50
Maximum Effective Power per Port (W)	250	200
Mechanical Data (BASTA 11.1)

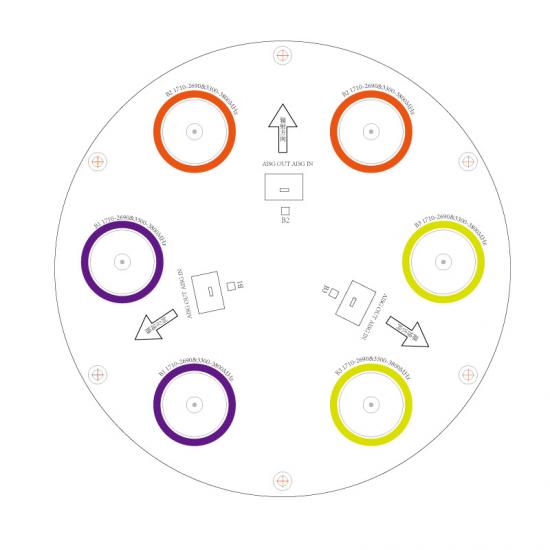

Connector Type	3×2×4.3 - 10 female
Connector Position	Bottom
Lightning Protection	DC Ground
Radome Material	UPVC
Radome Color	Light Grey
Antenna Net Weight	≤30kg
Shipping Weight	≤42kg
Antenna Dimensions (H x W x D)	2000 - 2030mm（Including the height of the heightening frame and the exhaust cap）
Packing Size (H x W x D)	≤2300×360×460mm
Survival Wind Speed	241 km/h
Operating Temperature Range	- 40 - + 70 °C

Application
