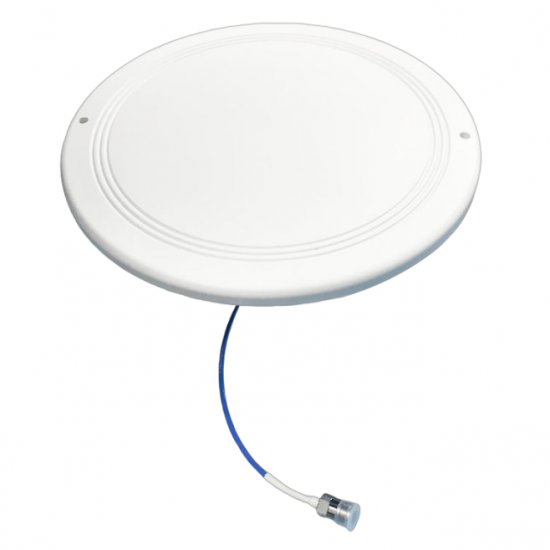

350-6000MHz SISO Omnidirectional Ceiling Antenna

Item NO.:
MOA-360-47-NF-153S
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou

Inquiry now

Products Details

Product Name

Product Features

◆ Wide Frequency Band

◆ Low VSWR

◆ High Gain

Technical Specifications

Electrical specifications
Frequency range (MHz)	350-520	617-960	1695-2700	3300-4200	4800-6000
Polarization	Linear or Horizontal
Peak Gain (dBi)	4	4	6	7	7
Horizontal beam width (°)	360，omnidirectional
Typical Vertical beam width (°)	120	90	80	50	40
Impedance (Ω)	50
VSWR	≤ 1.8	≤ 1.5
Intermodulation IM3 (2×43dBm carrier)	/	≤-153dBc	≤-153dBc	≤-153dBc	/
Maximum power (W)	50
Mechanical specifications
Connector	N Female or 4.3-10 Female
Exposed cable size (cm)	30
Connector position	Bottom
Antenna size (mm)	Φ300*13
Packing size (mm)	32532588
Weight (kg)	≤0.55
Radome material	ABS
Radome color	White (RAL 9003)
Operating humidity (%)	5~95
Operating temperature (℃)	-40~+60
Application	Indoor
Mounting	Fixed with nut
