Product Name

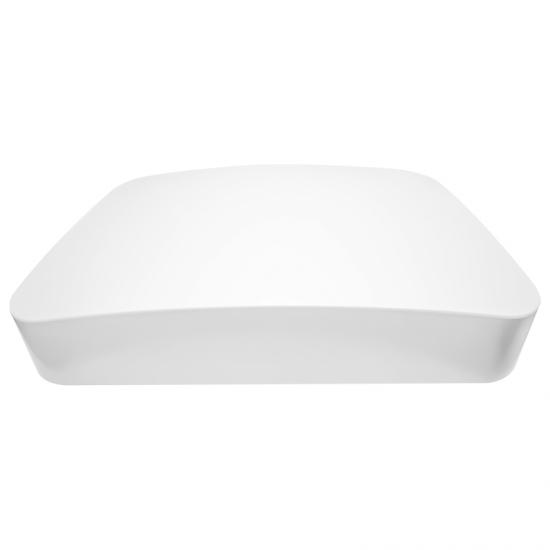

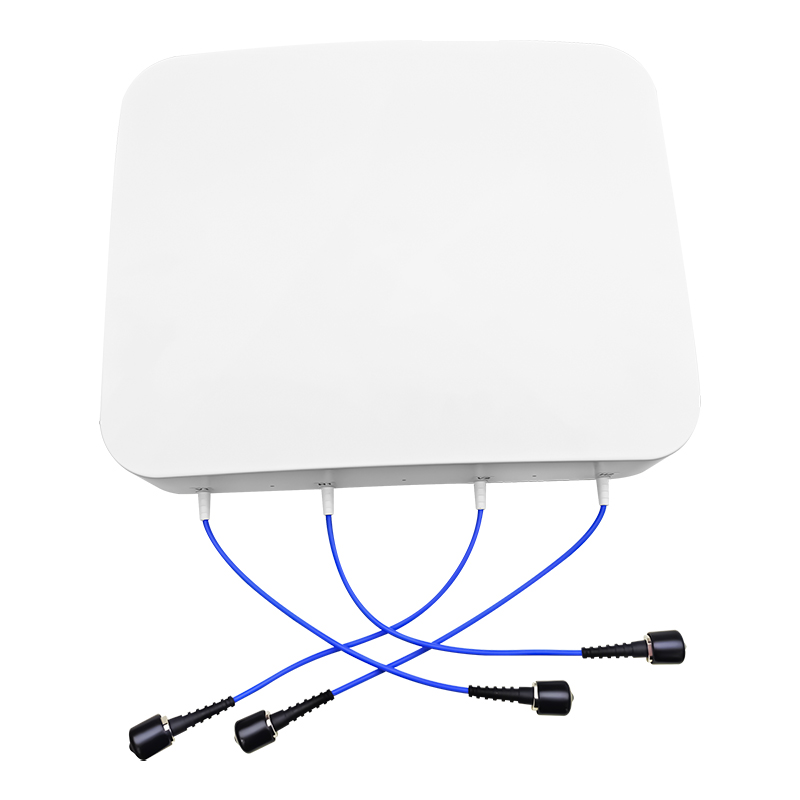

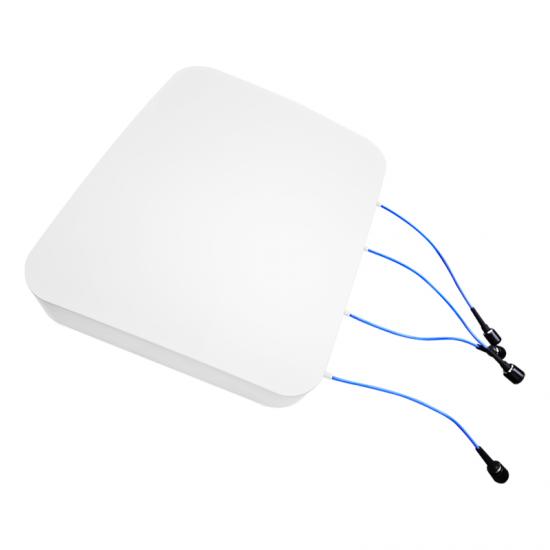

600-6000MHz Low PIM 4-port Outdoor Panel Antenna
Product Features
◆ Wide Frequency Band 600-6000MHz
◆ Low VSWR
◆ High Gain
Technical &Mechanical Specifications
|
Electrical Specifications |
|||||
|
Frequency Range, MHz |
600-698 |
698-960 |
1710-2700 |
3300-4000 |
4000-6000 |
|
Gain, d Bi |
4.0 |
5.5 |
8.5 |
7.0 |
6.0 |
|
VSWR |
≤2.5 |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
|
Polarization |
Horizontal and Vertical |
||||
|
Isolation, dB |
≥10 |
≥12 |
≥20 |
≥24 |
≥24 |
|
Front to Back Ratio, dB |
≥6 |
≥7 |
≥13 |
≥10 |
≥10 |
|
PIM, 3rd Order, 2x20W |
≤-140 d Bc |
≤-153 d Bc |
|||
|
Horizontal Beam width |
108-80° |
130-85° |
95-58° |
65-33° |
52-28° |
|
Vertical Beam width |
98-75° |
108-78° |
83-45° |
90-25° |
45-22° |
|
Input Impedance |
50 Ω |
||||
|
Max. Input Power |
50 W |
||||
|
Lightning Protection |
DC Ground |
||||
|
Mechanical Specifications |
|||||
|
Connector |
4 x 4.3-10 Female |
||||
|
Dimensions |
385x315x68 mm |
||||
|
Weight |
1.5 kg |
||||
|
Reflector Material |
Aluminum and PCB |
||||
|
Radome Material |
ABS (UV Stabilized) |
||||
|
Operating Temperature |
-40°C to +65°C |
||||
Application
