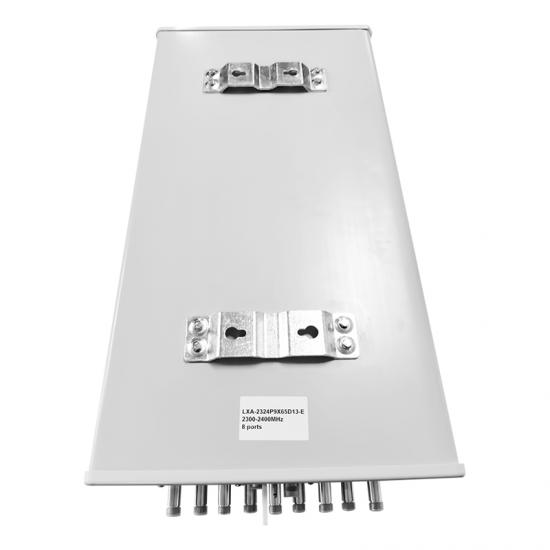

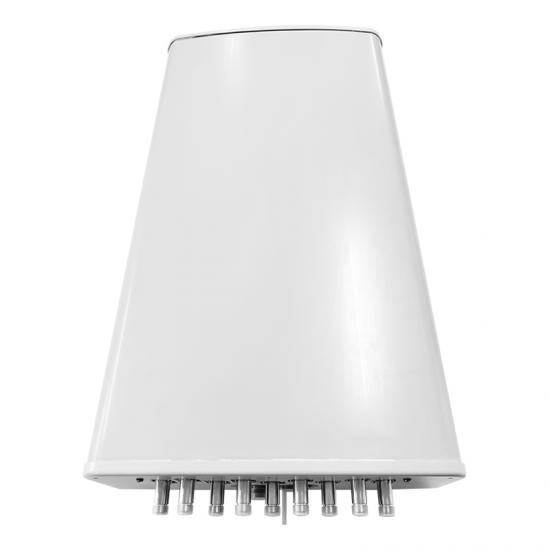

8-port 2300-2400MHz 13dBi dual polarized RET antenna

Frequency Range

2300-2400

Vertical Electrical Downtilt Range (°)

2-12

Downtilt Accuracy (°)

±1.0

Calibration and electrical parameters

Coupling Degree from Calibration Port to Radiating Ports (dB)

-26±2

Maximum Amplitude Deviation from Calibration Port to Radiating Ports (dB)

≤0.9

Maximum Phase Deviation from Calibration Port to Radiating Ports (°)

≤7

Voltage Standing Wave Ratio (VSWR) at Calibration and Radiating Ports

≤1.50

Average Power Handling Capacity (W)

≥80

Isolation Between Co-Polarized Radiating Ports (dB)

At 2-6° downtilt

≥25

At 7-12° downtilt

≥25

Isolation Between Cross-Polarized Radiating Ports (dB)

At 2-6° downtilt

≥25

At 7-12° downtilt

≥25

Radiation parameters

Unit beam

Horizontal Half-Power Beamwidth (°)

65±10

Element Beam Gain (dBi)

≥13

Edge Power Drop at ±60° (dB)

12±3

Vertical Half-Power Beamwidth (°)

≥15

Cross-Polarization Ratio (Axial, dB)

≥15

Cross-Polarization Ratio (±60° Range, dB)

≥8

Front-to-Back Ratio (dB)

≥23

Upper Side Lobe Suppression (dB)

≤-16

Broadcast beam

Broadcast Beam Gain (dBi)

≥13

Power Ratio in ±32.5° Sector (%)

72±7

Power Ratio in ±60° Sector (%)

≥90

Beam ±60° edge power drop (dB)

12±3

Vertical half-power beamwidth (°)

≥4.5

Power Front-to-Back Ratio (dB)

≥25

Upper Side Lobe Suppression (dB

≤-16

Business beam

Service Beam Gain at 0° (dBi)

≥19

Horizontal Half-Power Beamwidth at 0° (°)

≤25

Horizontal Side Lobe Level at 0° (dB)

≤-13.5

Service Beam Gain at ±60° (dBi)

≥17

Horizontal Half-Power Beamwidth at ±60° (°)

≤25

Horizontal Side Lobe Level at ±60° (dB)

≤-3

Cross-Polarization Ratio at 0° (Axial, dB)

≥20

Front-to-Back Ratio at 0° (dB)

≥28

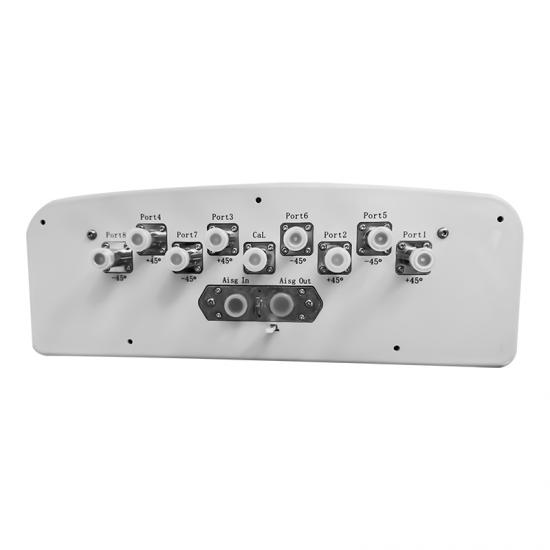

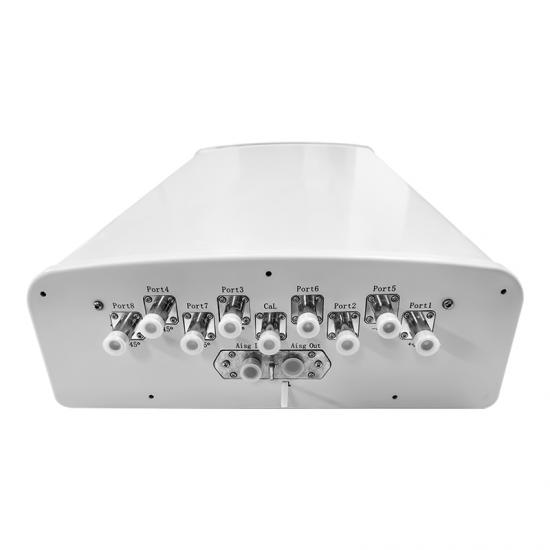

Connector Type

9*N-K female or 9*4.3-10 female

Connector Location

Bottom

Dimensions (mm)

750*398*141

Weight (kg)

15 (excluding brackets)

Radome Material

UPVC

Radome Color

Gray

Operating Temperature (°C)

-40 to +70

Operating Humidity (%)

5-95

Wind Resistance (m/s)

60

Application

Outdoor

Mounting Method

Pole mounting (pole diameter: ∅42-∅115mm)

RET Properties

RET type

Integrated RET

RET protocols

AISG 2.0/3GPP

Input voltoge range(v)

10-30DC

Power consumption(w)

＜0.6（when the motor does not work ,12V）

＜5 （when the motor is working ,12V）

＜10（when the motor is starting up or shuting down ,12V）

Adjustment time(full range)(s)

Typ.50(typically ,depending on antenna type)

Ret connector

2*8 pin connector according to IEC 60130-9

Daisy chan in:male/Daisy chan out:Female

Pin assignment according Aisg

1

2

3

4

5

6

7

8

Not used

Not used

RS-485B

Not used

RS-485A

DC

DC return

Not used

Lightning protection(KA)

8(8/20μs)
