Product Name

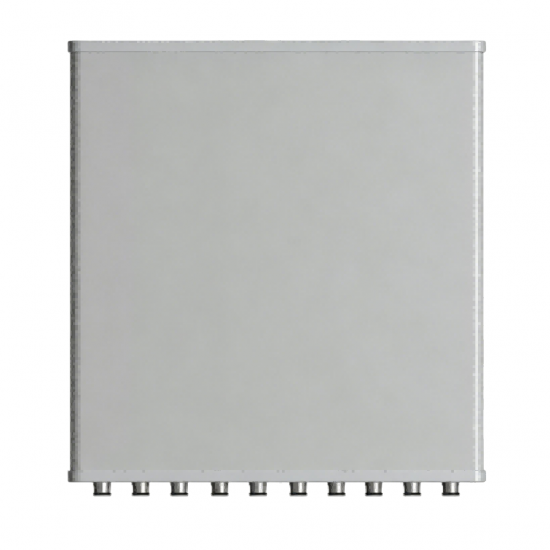

200W 10 Port Base Station Antenna1710-2170MHz 23dBi Fixed Electrical Downtilt Antenna
Product Features
◆ Multi-beam design delivers flexible coverage and expanded capacity
◆ Dual polarization improves signal quality and anti-interference capability
◆ Excellent electrical performance guarantees stable network operation
◆ Durable structure supports reliable outdoor use in various environments
Technical &Mechanical Specifications
| Electrical specifications | |||
| Frequency Range | 1710~1880 MHz | 1880~1920 MHz | 1920~2170 MHz |
| Polarization | ±45° | ±45° | ±45° |
| Gain | 0°Beam: 21.9 dBi | 0°Beam: 22 dBi | 0°Beam: 22.6 dBi |

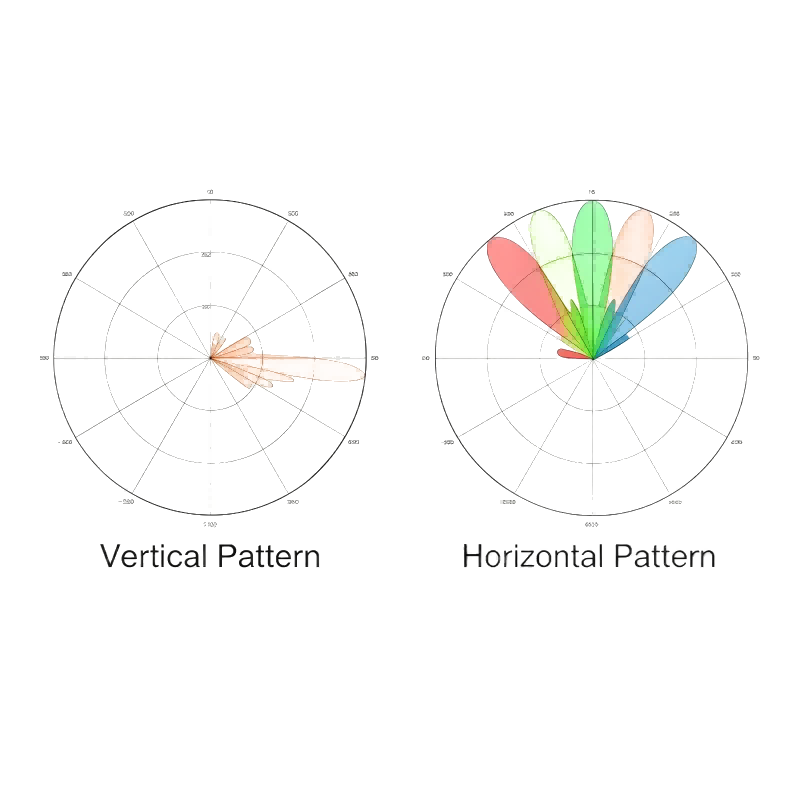

| Horizontal 3dB Beamwidth |
±40°
Beam: 16±1.0°
±20°
Beam: 13±0.6° 0°Beam: 12±0.4°
|
±40°
Beam: 14±0.4°
±20°
Beam: 12±0.2° 0° Beam: 11±0.1°
|
±40°
Beam: 13±1.4°
±20°
Beam: 11±0.7° 0° Beam: 10±0.4°
|
| Vertical 3dB Beamwidth | 11.7±0.6° | 11.0±0.3° | 10.4±0.9° |
| Front-to-back Ratio | >29 dB | >29 dB | >30 dB |
| Beam Isolation | >16 dB | >16 dB | >16 dB |
| Cross-polar Ratio | ≥15 dB (Main direction) | ≥15 dB (Main direction) | ≥15 dB (Main direction) |
| Electrical Downtilt | 6° | 6° | 6° |
| Sidelobe Suppression | >20 dB | >22 dB | >15 dB |
| VSWR | <1.45 | <1.45 | <1.45 |
| Isolation: Intra-system | ≥28 dB | ≥28 dB | ≥28 dB |
| Intermodulation IM3 | ≤-150dBc (2×43dBm carrier) | ≤-150dBc (2×43dBm carrier) | ≤-150dBc (2×43dBm carrier) |
| Impedance | 50 Ω | 50 Ω | 50 Ω |
| Max. Power per Input | 200 W | 200 W | 200 W |
| Lightning Protection | DC Ground | DC Ground | DC Ground |
| Mechanical specifications | |

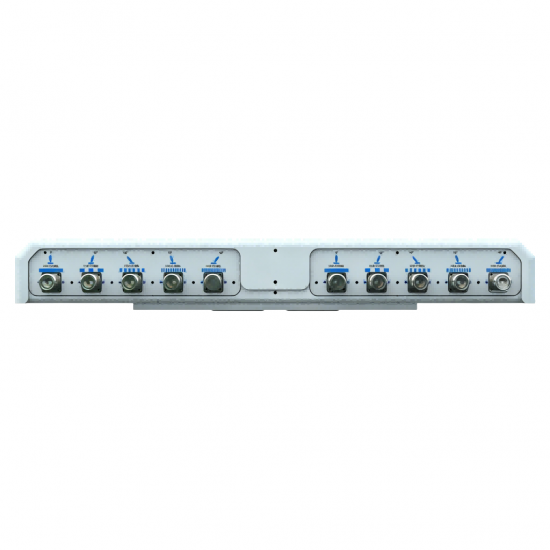

| Connector | 10×7/16 DIN-Female |
| Connector Position | Bottom |
| Height×Width×Depth | 800×900×107 mm |
| Packing Size | 1075×1015×205 mm |
| Antenna Weight | 29 kg |
| Installation Kit Weight | 5.4 kg |
| Packing Weight | 40 kg |
| Wind Load (at 150km/h) | 780/100/900 N (Frontal/Lateral/Rearside) |
| Max. Wind Velocity | 216 km/h |
| Reflector Material | Aluminum Alloy |
| Radome Material | ASA |
| Radome Color | Gray |
| Mechanical Tilt | 0~10° |
| Operating Temperature | -40~60 ℃ |
| Mounting Hardware | Φ50~Φ115 mm |
