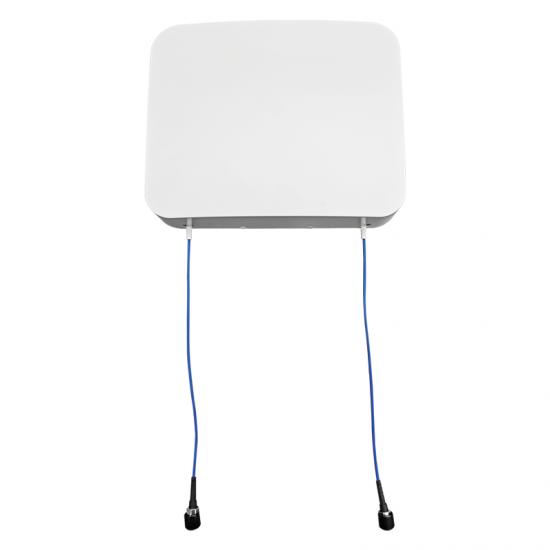

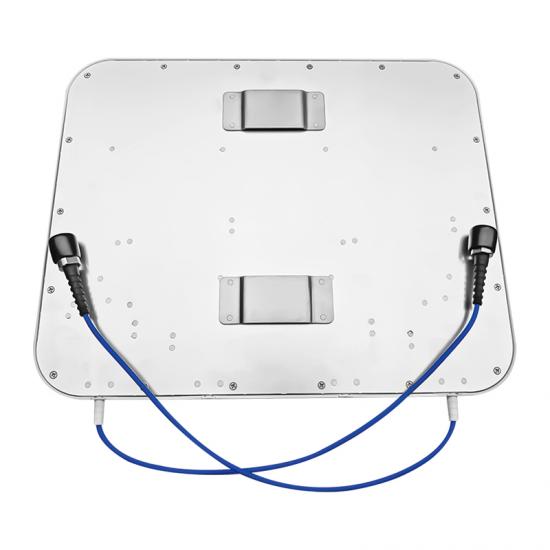

Hot sale New products 380-4300MHz 3-8dBi VV-Pol 2-Port Indoor Panel Antenna

Model Number

PIM<-140

PIM<-150

PIM<-153

N Female

MNA-380-4300VV-8-ID-NV1

MNA-380-4300VV-8-ID-NV2

MNA-380-4300VV-8-ID-NV3

4.3-10 Female

MNA-380-4300VV-8-ID-MV1

MNA-380-4300VV-8-ID-MV2

MNA-380-4300VV-8-ID-MV3

Electrical Specifications

Frequency Range, MHz

380-520

698-960

1710-2700

3300-4300

Gain, dBi

3

6

8

7.5

VSWR

≤3.0

≤2.0

≤2.0

≤2.0

Polarization

Vertical + Vertical

PIM, 3rd Order, 2x20W, dBc

N/A

 ≤-140 / ≤-150 / ≤-153

N/A

Front to Back Ratio, dB

N/A

10

18

14

Isolation, dB

10

12

20

24

Horizontal Beamwidth

120°

90°

65°

38°

Vertical Beamwidth

80°

65°

60°

36°

Input Impedance, Ω

50

Max. Input Power, W

50

Lightning Protection

DC Ground

Mechanical Specifications

Connector

2 x N Female / 2 x 4.3-10 Female

Dimensions, mm

393x317x80

Weight, kg

Approx. 1.5

Reflector Material

Aluminum

Radome Material, Color

ABS (UV Stabilized), White, RAL 9003

Operating Temperature, °C

-40 to +65
