Product Name
Maniron 600-6000MHz SISO Indoor Slim Omni Ceiling Mount Antennas
Product Features
◆ Wide Frequency Band 600-6000MHz
◆ Low VSWR
◆ High Gain
◆ Widely used for DAS
Technical &Mechanical Specifications
|
Electrical Specifications |
||||||
|
Frequency Range(MHz) |
600-698 |
617-698 |
698-960 |
1710-2700 |
3300-4000 |
4000-6000 |
|
Gain(dBi) |
2.5 |
2.5 |
3.5 |
4.0 |
5.5 |
5.5 |
|
VSWR |
≤2.5 |
≤2.0 |
≤1.8 |
≤1.8 |
≤1.8 |
≤1.8 |
|
Polarization |
Horizontal |
|||||
|
PIM, 3rd Order, 2x20W(dBc) |
≤-140 | -150 | -153 |
|||||
|

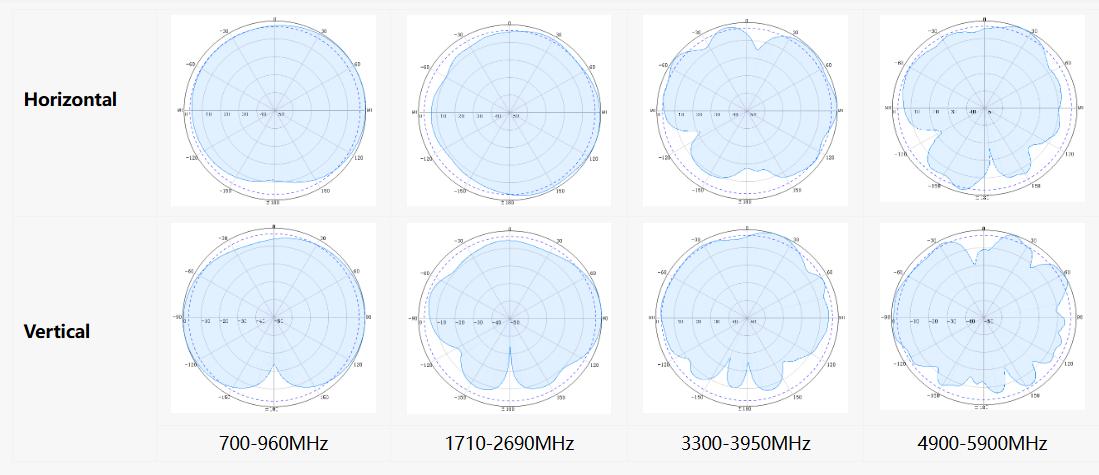

Horizontal Beam width |
360° |
|||||
|
Vertical Beam width |
120° |
90° |
78° |
70° |
42° |
|
|
Input Impedance |
50 Ω |
|||||
|
Max. Input Power |
50 W |
|||||
|
Mechanical Specifications |
||||||
|
Connector |
N | 4.3-10 Female |
|||||
|
Dimensions(mm) |
Ø190x7.3 |
|||||
|
Weight(kg) |
0.25 |
|||||
|
Color |
White |
|||||
|
Reflector Material |
PCB |
|||||
|
Radome Material |
ABS |
|||||
|
Operating Temperature |
-40°C to +65 °C |
|||||
|
Mounting |
Ceiling Mount |
|||||
Application
