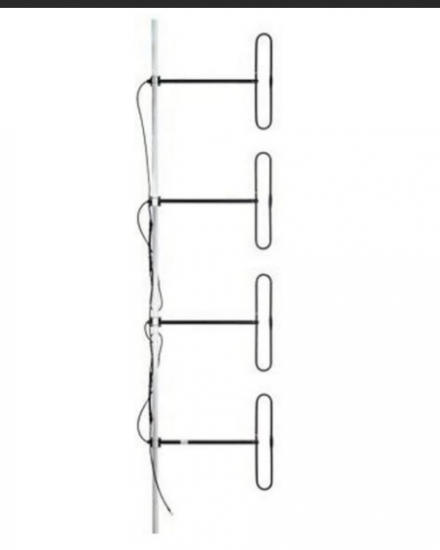

VHF 8‑Element Omni Dipole Antenna 138‑174MHz 10.6dBi N‑Male Connector

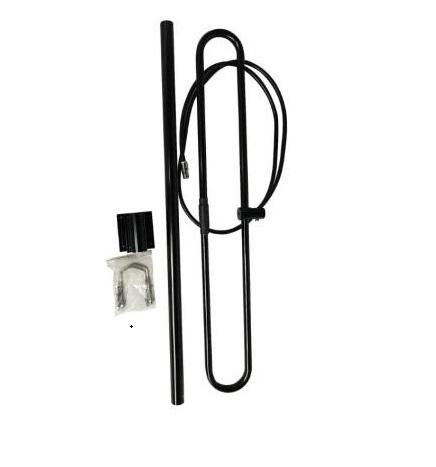

8‑element VHF omni dipole array antenna ,138‑174MHz,10.6dBi gain,50Ω impedance,max 300W power.DC‑grounding lightning protection,3m LMR400 cable with N‑male connector.Wind resistance up to 160km/h, mounting brackets included, ideal for outdoor base station & repeater.

Item NO.:
MNL-DA-8E-NM
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

138-174 MHz Dipole Antennas

Technical & Mechanical Specifications

Frequency:	138-174
Elements:	8
Impedance:	50
Gain:	10.6 dBi
Polarization:	Vertical
Typical Vertical Radiation angle：	≥ 15 °
Radiation:	Omni
VSWR:	≤ 1.50
Max.Input Power-W:	300W
Lightning Protection:	DC-Grouding

Application:
