High Gain 698-4000MHz Magnet Car Antenna

The 698-4000MHz mobile antenna is designed to enhance signal strength, making it an ideal choice for 5G applications and mobile communication systems. This antenna is perfect for boosting connectivity in both urban and rural areas, ensuring reliable performance across a wide frequency range.

Item NO.:
MA-740-SJ-3
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

698-4000MHz High Gain 3dBi Magnet Car Antenna

Technical & Mechanical Specifications

Frequency	698-4000MHz
Segmental Gain(dBi)	698-960MHz：1.5-2dBi, 1710-2710MHz:3dBi,2800-4000MHz:4dBi
VSWR	≤2.0
Polarization	Vertical
Gain(DBI)	±45°
Power Handling	50W
Impedance	50Ω

Connector Type SMA Male

Base Diameter 31

Antenna Length(MM) 85

cable Specification RG174

Line Length(mm) 3800

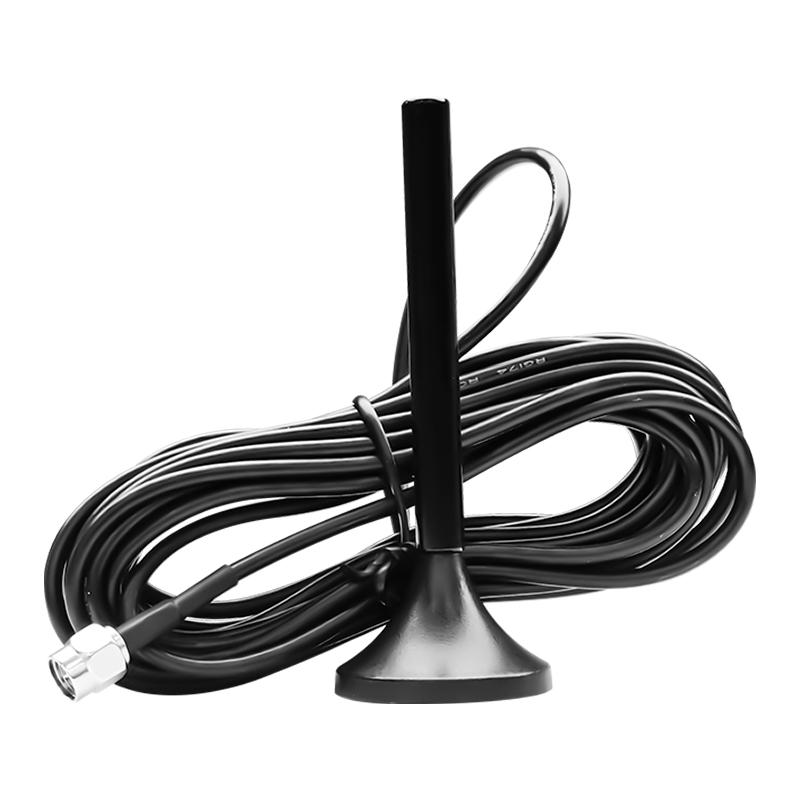

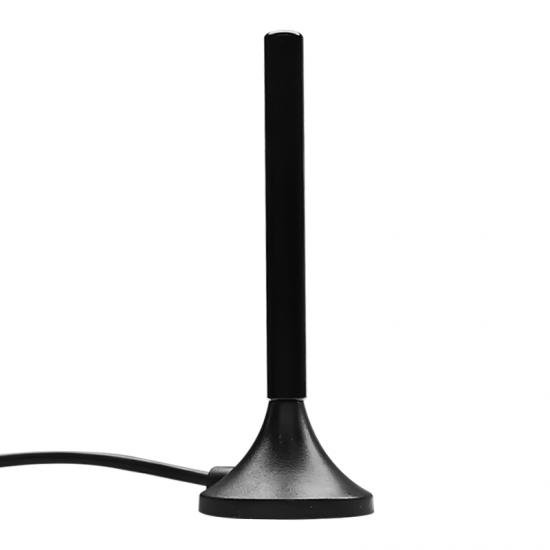

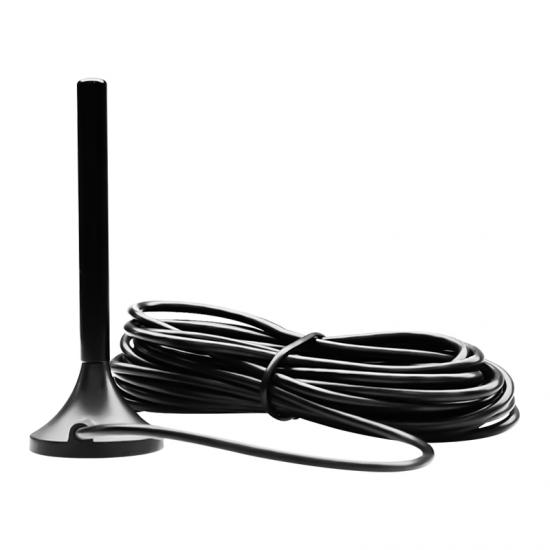

Product Photo

magnet antenna

Application:

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : High Gain 698-4000MHz Magnet Car Antenna
Im interested in your "High Gain 698-4000MHz Magnet Car Antenna", please inform me more detailed product information and price. Thankyou!
