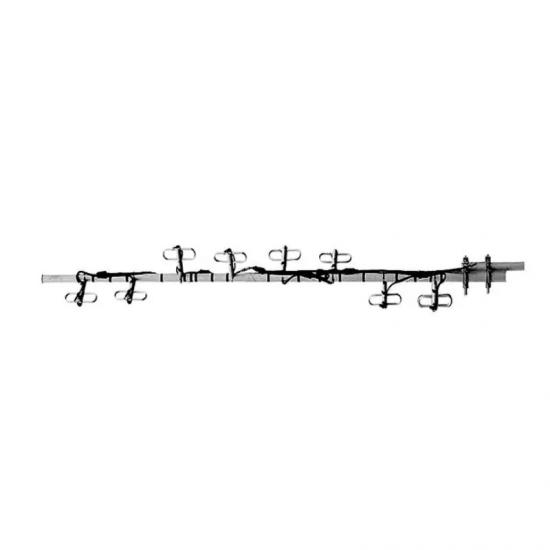

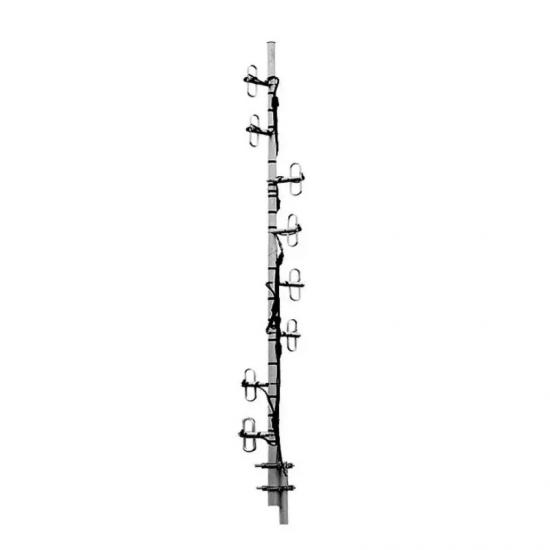

High Gain 150MHz 10-13dBi Eight Folded Dipoles Antenna

Their high gain, simplicity, and cost-effectiveness make Eight Folded Dipoles Antenna ideal for scenarios requiring focused signal transmission/reception over long distances, while rejecting noise or interference from other directions

Item NO.:
MFDA-1318-12-NF-8
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

150MHz 10-12dBi Eight Folded Dipole Antennas

Technical & Mechanical Specifications

Frequency range	130-180MHz
Gain	Omni-directional:11.8dBi Directional: 14dBi
VSWR	≤1.5(Central Freq.≤1.2)
Polarization	Vertical
Max.Power-W	500W
Impedance	50 ohm
Bandwidth-MHz	8
Ver.Beamwidth-°	6.8

Length-m

9 to 11.5

Operating Temperature Range

-35°C to +65°C

Antenna Colour

Silver Gray

Cable Colour

Black

Connector Type

N-Female

Relative Humidity

5%-95%

Packing

1PC in a box

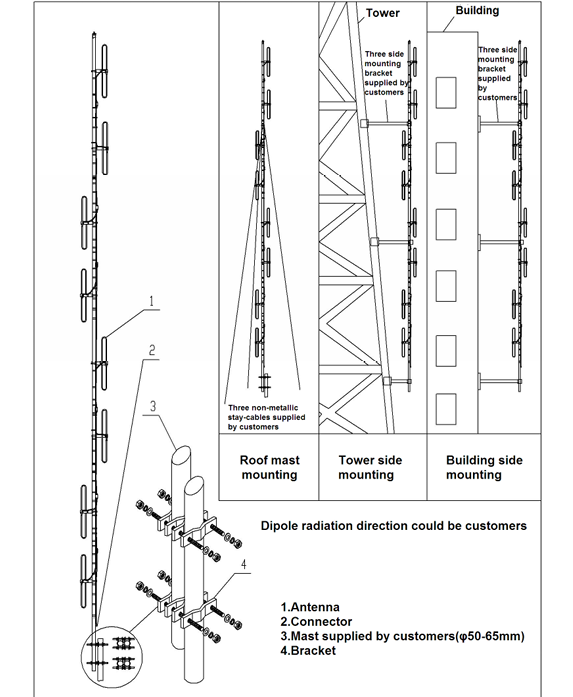

Installation Sketch

Application:
