High Power 100W 400-480MHz 75Ohm 10dBi Yagi Antenna

Their directional gain, simplicity, and cost-effectiveness make Yagi antennas ideal for scenarios requiring focused signal transmission/reception over long distances, while rejecting noise or interference from other directions

Item NO.:
TDJ-400Y6
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

High Power 100W 400-480MHz 75Ohm 10dBi Yagi Antenna

Technical & Mechanical Specifications

Frequency range	400-480MHz
Bandwidth	8
Gain	10dBi
Horizontal Beamwidth	61
Vertical Beamwidth	50
Front to Back Ratio	≧15
VSWR	≦1.5
Nominal resistanc	75Ohm
Polarization	Vertical or horizontal

Maximum power-W

100W

Dimensions-cm

90

Weight

0.8

Connector

Block F or user-specified

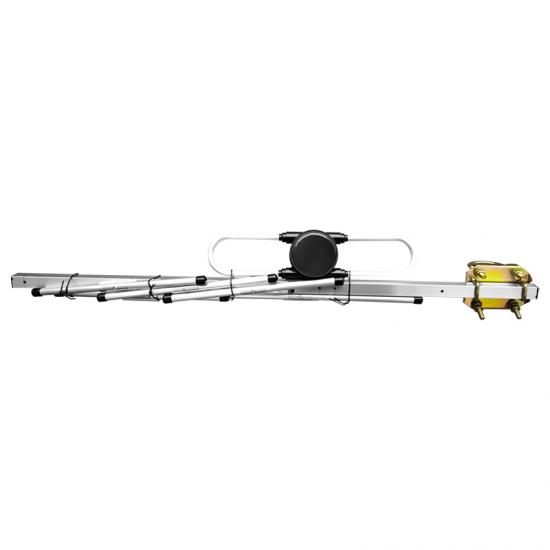

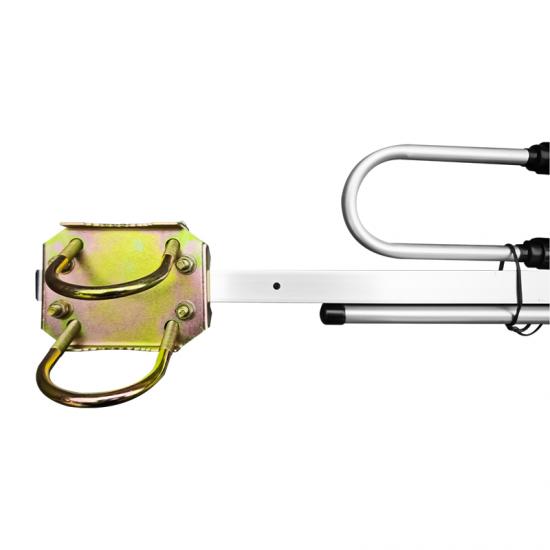

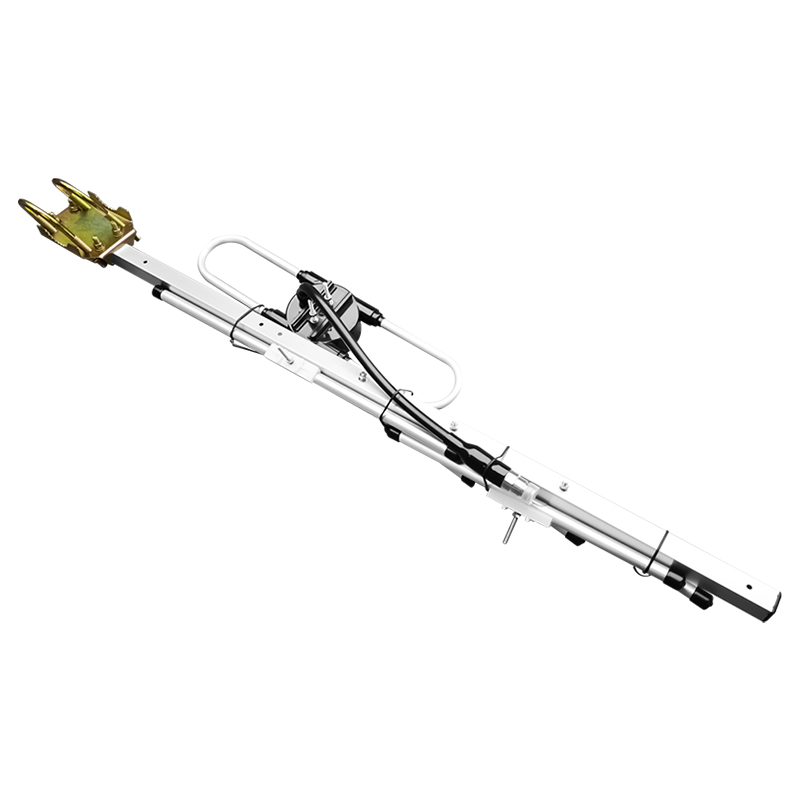

Product Photo

Application:
