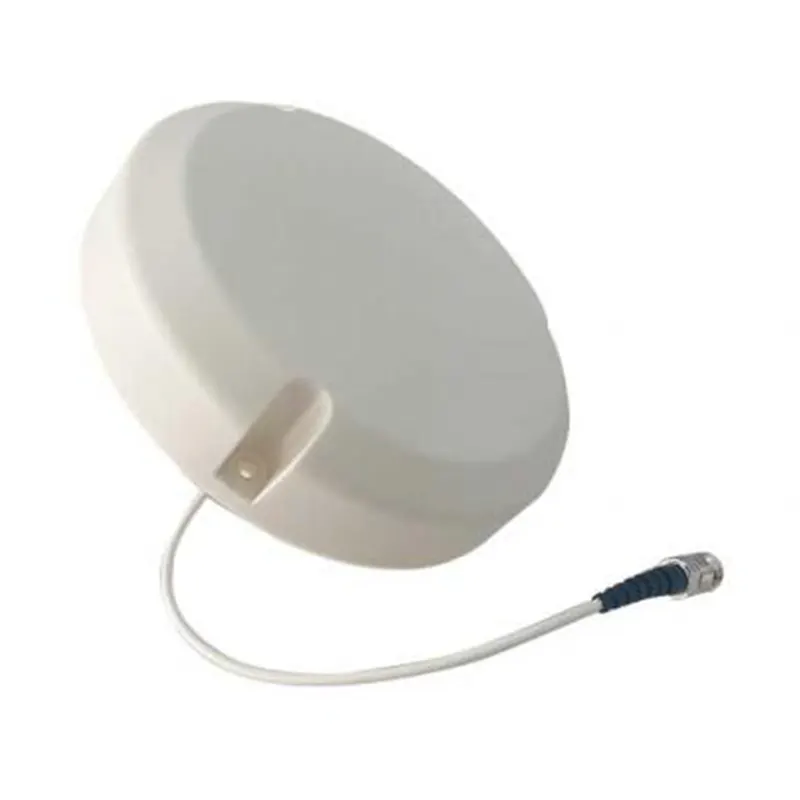

Maniron 617-3800MHz Slim RF Omni Ceiling Antenna

High-performance slim RF omni ceiling antenna, covering 617-3800MHz with low PIM -153dBc. Equipped with N/4.3-10/DIN-F connector for easy installation, ideal for DAS and indoor coverage.

Item NO.:
MOA-738-34-4F-153S
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

Maniron 617-3800MHz SISO Omni Ceiling Antennas

Product Features

◆ Wide Frequency Band 617-3800MHz

◆ Low VSWR

◆ High Gain

Technical &Mechanical Specifications

Frequency(MHz)	617-960	1710-2700	3300-3800
Polarization	Vertical
Gain (dBi)	3.5±1	4±1	4±1
Horizontal Beam width	360°
VSWR	≤1.8
Vertical Beam width	90°	65°	50°
3rd PIM(dBc)	≤-153dBc@2*43dBm
Total Input Power(W)	50
Impedance (ohm)	50
Lightning Protection	DC Ground
Connector/Cable Length	4.3/10--Female/30cm

Application
