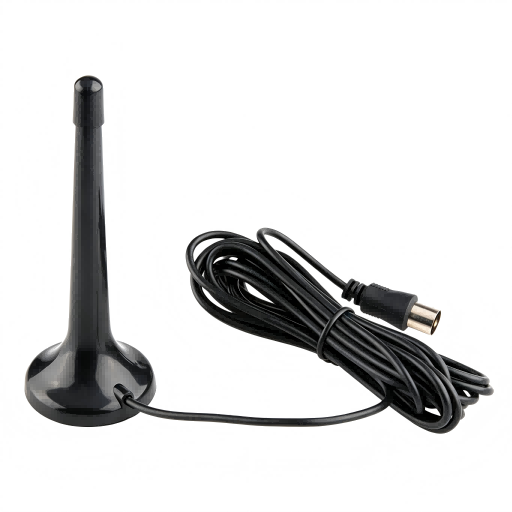

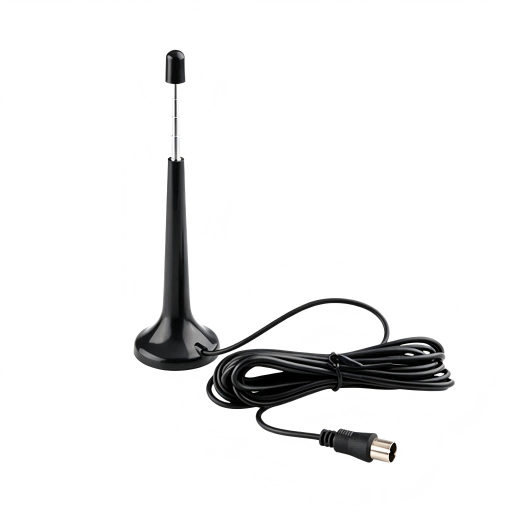

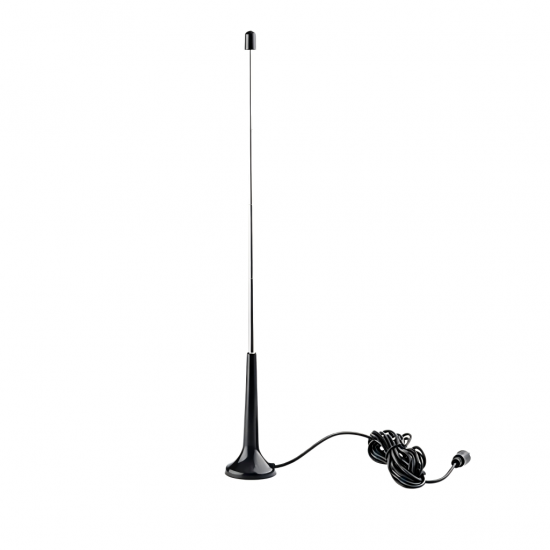

174-862MHz Magnetic Base Telescopic DTV Car Antenna

This Magnetic Base Telescopic DTV Antenna supports dual frequency bands VHF 174-230MHz & UHF 470-862MHz with stable 5dBi gain. Equipped with RG174 cable, standard cable length is 1.5±0.03m and customized length is available.

Item NO.:
MN-1723/4786-50-5-RG
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
Black

Inquiry now

Products Details

Product Name

VHF UHF DTV FM Car Antenna Magnetic Base Retractable Telescopic Antenna

Product Features

◆ Dual wide frequency band: VHF 174-230MHz & UHF 470-862MHz, full coverage for DTV & FM radio signal

◆ Retractable telescopic antenna rod, flexible length adjustment

◆ Built-in strong magnetic base, drilling-free installation on car roof

◆ Standard RG174 cable, default length 1.5±0.03m, custom cable length supported

Technical &Mechanical Specifications

Working Frequency	VHF 174-230MHz, UHF 470-862MHz
Gain	5dBi
VSWR	≤1.5
Impedance	75 Ohm
Polarization	Vertical
Max Power	50W
Cable Model	RG174 Coaxial Cable
Standard Cable Length	1.5±0.03m
Custom Option	Custom Cable Length Available

Related Images

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 174-862MHz Magnetic Base Telescopic DTV Car Antenna
Im interested in your "174-862MHz Magnetic Base Telescopic DTV Car Antenna", please inform me more detailed product information and price. Thankyou!
